- Page 1 DWB056C001 Window Type Room Air Conditioner Model : DWC-056CL DWC-056C FEB. 2005...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. PRECAUTION ...............................2 2. GENERAL SPECIFICATIONS........................3 3. NAMES OF MAJOR COMPONENTS ......................4 4. FUNCTION OF MAIN COMPONENTS.......................5 5. GENERAL INFORMATIONS ........................6 6. CARE AND MAINTENANCE........................7 7. TROUBLE SHOOTING GUIDE........................8 8. HOW TO DISASSEMBLE..........................10 9. WIRING DIAGRAM.............................11 10. REFRIGERANT CYCLE ..........................12 11. -
Page 3: Precaution
1. PRECAUTION Please observe the following instructions. 1. Turn off unit. Make sure the unit is OFF and the AC cord is unplugged before repairing or servicing. 2. In case of checking the circuit unavoidably while the unit is connected with power source, be careful not to connect with the part of electric charge. -
Page 4: General Specifications
2. GENERAL SPECIFICATIONS MODEL DWC-056CL DWB-056C ITEM Function Cooling only Power source AC 115V/60Hz AC220~240V/50Hz Btu/h 5,200 5,000 Cooling Capacity Kcal/h 1,310 1,260 Energy Btu/Wh 9.26 Efficiency Ratio Kcal/Wh 2.44 2.33 Pts/h 1.63 1.02 Dehumidification Power Input (W) Electrical Data... -
Page 5: Names Of Major Components

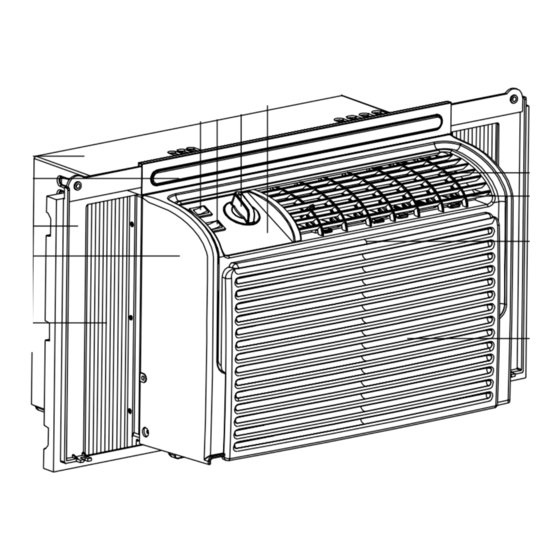

3.NAMES OF MAJOR COMPONENTS • DWC-056CL • DWB-056C 6 5 0 PART NAME PART NAME CABINET AIR INTAKE BLADE VERTICAL AIR FILTER COOL AIR DISCHARGE CONTROL PANEL GRILLE FRONT PLATE WINDOW TOP KNOB THERMOSTAT FRAME WINDOW KIT SWITCH POWER SHUTTER WINDOW... -
Page 6: Function Of Main Components
4. FUNCTION OF MAIN COMPONENTS 1. POWER & FAN CONTROL Please refer to the part of switch in the chapter 9(Wiring Diagram). Select this setting to turn on the unit. Select this setting to turn off the unit. HIGH Select this setting for maximum air circulation. Select this setting for quite air circulation. -
Page 7: General Informations
However, if you still elect to use an extension cord, it is absolutely necessary that it is earthed and the marked rating of the extension cord should be 250V 10A or more for Model DWB-056C. 5. USE OF LCDI OR AFCI POWER CORDS(ONLY DWC-056CL) Testing: CASE 1 : Lamp exists 1. -
Page 8: Care And Maintenance
6. CARE AND MAINTENANCE 1. AIR FILTER Clean the air filter, which removes dust inside the room. It should be washed at least once every week during operation. 1. Remove the Air Filter from the front grill by pulling up. 2. -
Page 9: Trouble Shooting Guide
7. TROUBLE SHOOTING GUIDE TROUBLE SITUATION ANALYSIS CAUSE REMEDY Fan motor and 1. Power failure 1) Power plug 1) Power failure • Consult your electric company compressor do not 2) Circuit breaker 2) Circuit breaker is tripped • In case of a breaker, turn it on and off a few times 3) Power plug is not contacting •... - Page 10 TROUBLE SITUATION ANALYSIS CAUSE REMEDY The compressor runs 1) Fan • Blocked by others • Repair but the motor doesn’t 2) Fan motor 3) Capacitor • Disconnection or burned-out • Replace the fan motor 4) Fan motor circuit electric cord •...
-
Page 11: How To Disassemble
8. HOW TO DISASSEMBLE Please refer to the chapter 11 (Exploded diagram and parts list). Before service of 1. Stop the unit, remove the power cord from the receptacles. any part. 2. Move the unit to the safe location for the suitable work. 1. -
Page 12: Wiring Diagram
9. WIRING DIAGRAM... -
Page 13: Refrigerant Cycle
10. REFRIGERANT CYCLE Evaporator Blower fan MOTOR Capillary tube Accumulator Compressor Propeller fan Condenser... - Page 15 DWC-056CL, DWB-056C EXPLODED DIAGRAM...
