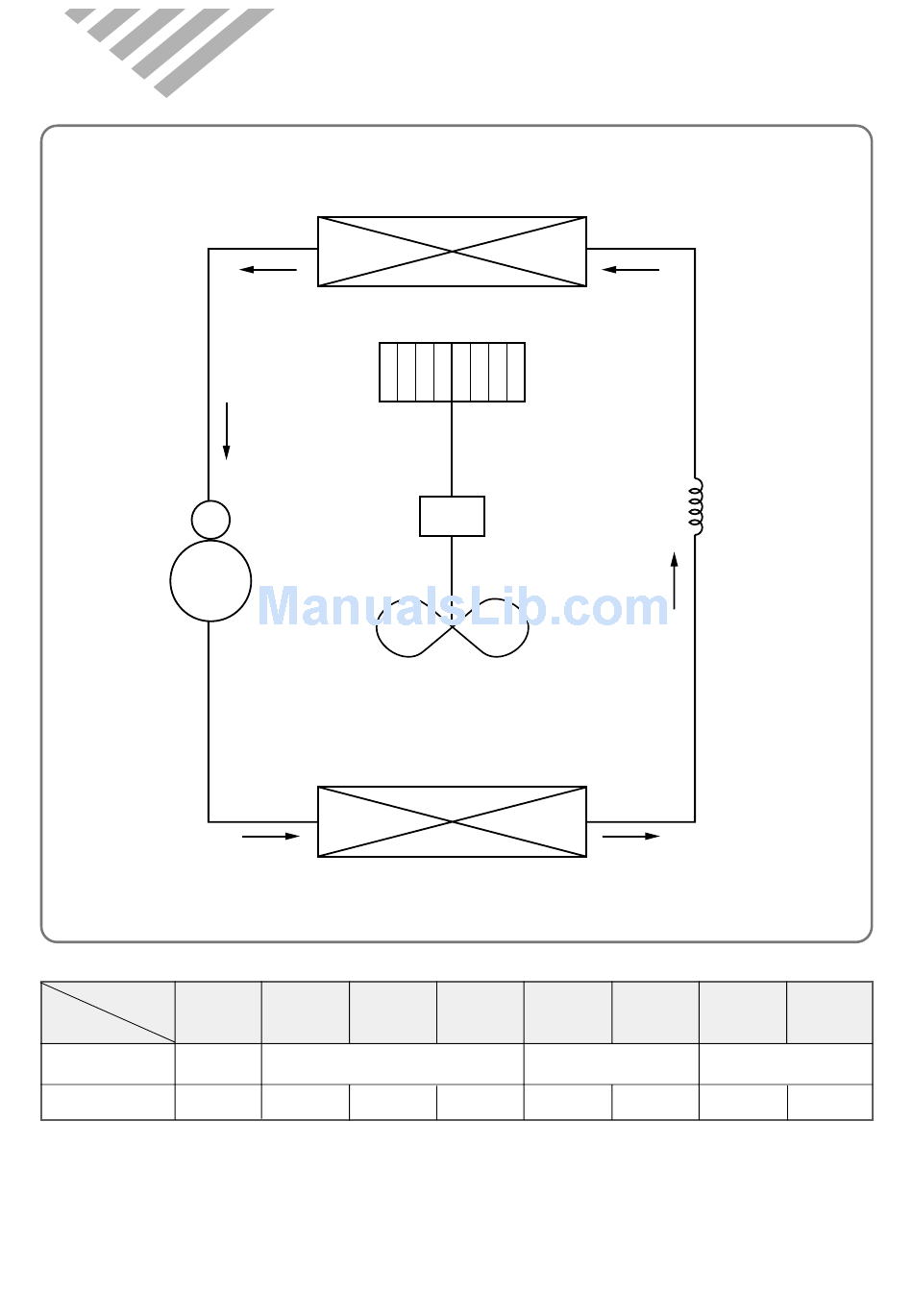

4. REFRIGERANT CYCLE
Evaporator
Blower fan
Capillary tube
Accumulator
M
MOTOR
Compressor
Propeller fan
Condenser
Model Name
DWA-122R
DWB-122R
DWC-121R
DWA-151R
DWA-121R
DWB-121R
DWB-123R
DWA-150R
(DWA-124R)
(DWB-124R)
(DWC-124R)
(DWA-152R)
Contents
ID1.6Ø x L800
Capillary tube
ID1.6Ø x L900
ID1.6Ø x L600
ID1.6Ø x L800
740g
790g
730g
690g
680g
760g
790g
780g
Charge Quantity
