PCI-CTR05 User's Guide
Information on signal connections
For general information regarding digital I/O techniques, including signal conditioning and low pass
filters, refer to the Guide to Signal Connections. This document is available on our web site at
www.mccdaq.com/signals/signals.pdf).
1
20
37
19
PC +5V 20
DIN STROBE
21
DIN7
22
DIN6
23
DIN5 24
DIN4
25
DIN3
26
DIN2 27
DIN1 28
DIN0 29
OSC OUT 30
CTR5OUT
31
CTR4OUT 32
CTR3OUT 33
34
CTR2OUT
35
CTR1OUT
36
CTR1CLK
37
CTR1GATE
J1

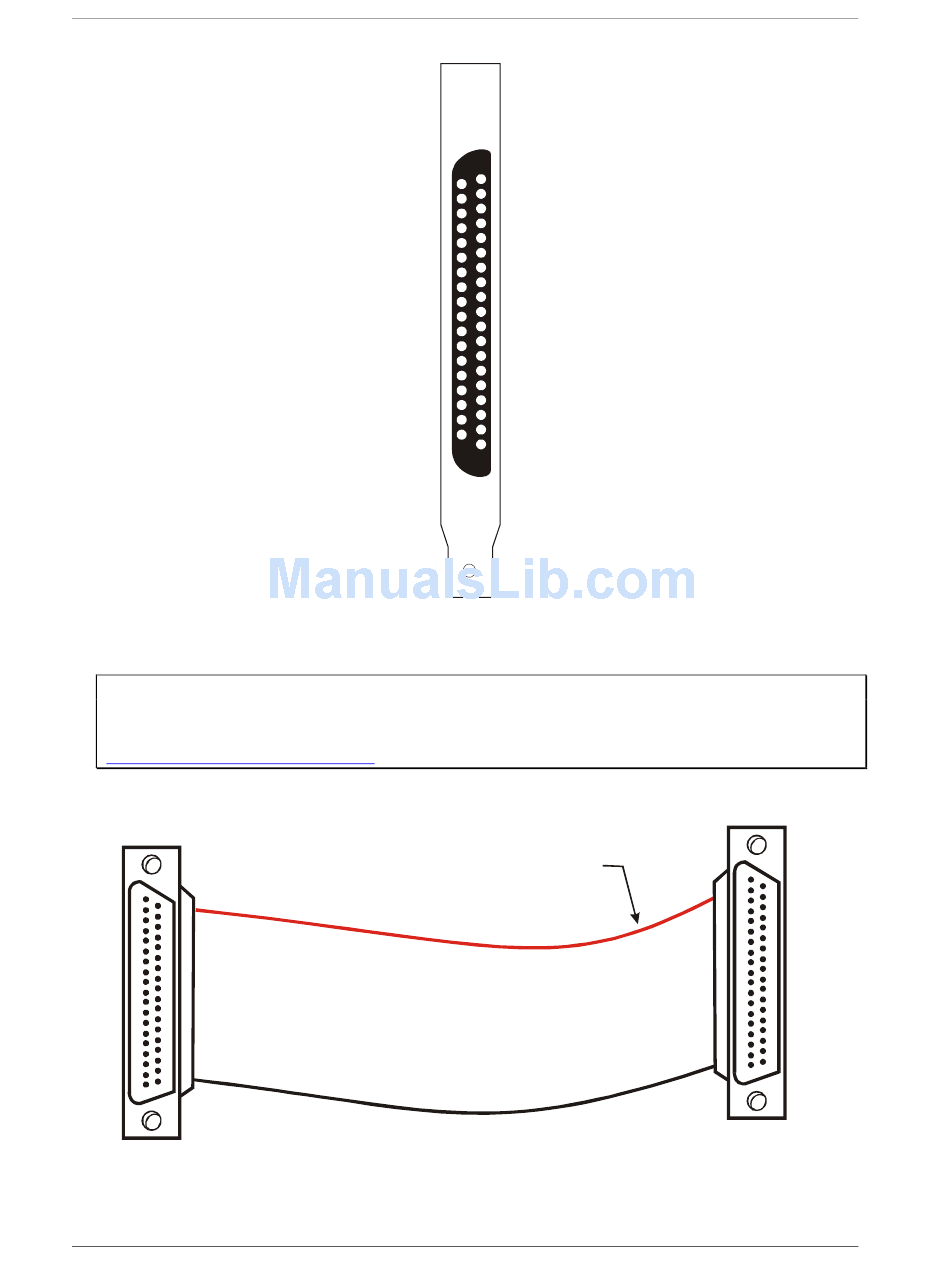

Figure 2-1. Board connector J1
The red stripe
identifies pin # 1
Figure 2-2. C37FF-x cable
2-4
1 IRQ INPUT
IRQ ENABLE
2
DOUT7
3
4 DOUT6
DOUT5
5
6
D OUT 4
7
D OUT 3
8
D OUT 2
9
D OUT 1
10
D OUT 0
11
GND
12
CTR5GATE
13 CTR5CLK
14 CTR4GATE
15
CTR4CLK
16 CTR3GATE
17
CTR3CLK
18
CTR2GATE
19 CTR2CLK
