Concise User's Guide

System Map: Front View

1
8
!
Wireless Device Operation Aboard Aircraft
The use of any portable electronic transmission devices
aboard aircraft is usually prohibited. Make sure the
modules are OFF if you are using the computer
aboard aircraft.
Communication Conflict
Do not try to use the Wireless LAN module and the Blue-
tooth module at the same time, as this may cause a
communication conflict.
12 - System Map: Front View
2 3 4 5 6
2 3 4 5 6
1
8
7
!
Infrared Communication
The Infrared transceiver operates on a
"Line of Sight". Make sure nothing is
blocking the "Line of Sight" between
your system's transceiver and the des-
tination's transceiver.
IEEE 1394
The Mini-IEEE 1394 port only supports
SELF POWERED IEEE 1394 devices.

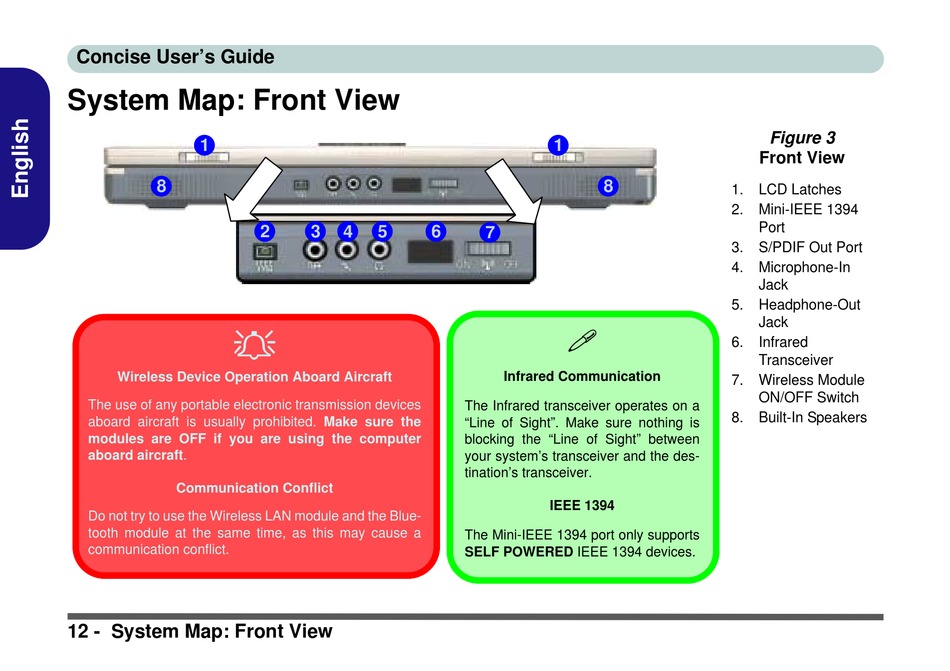

Figure 3
Front View
1. LCD Latches
2. Mini-IEEE 1394
Port
3. S/PDIF Out Port
4. Microphone-In
Jack
5. Headphone-Out
Jack
6. Infrared
Transceiver
7. Wireless Module
ON/OFF Switch
8. Built-In Speakers
