User's Manual

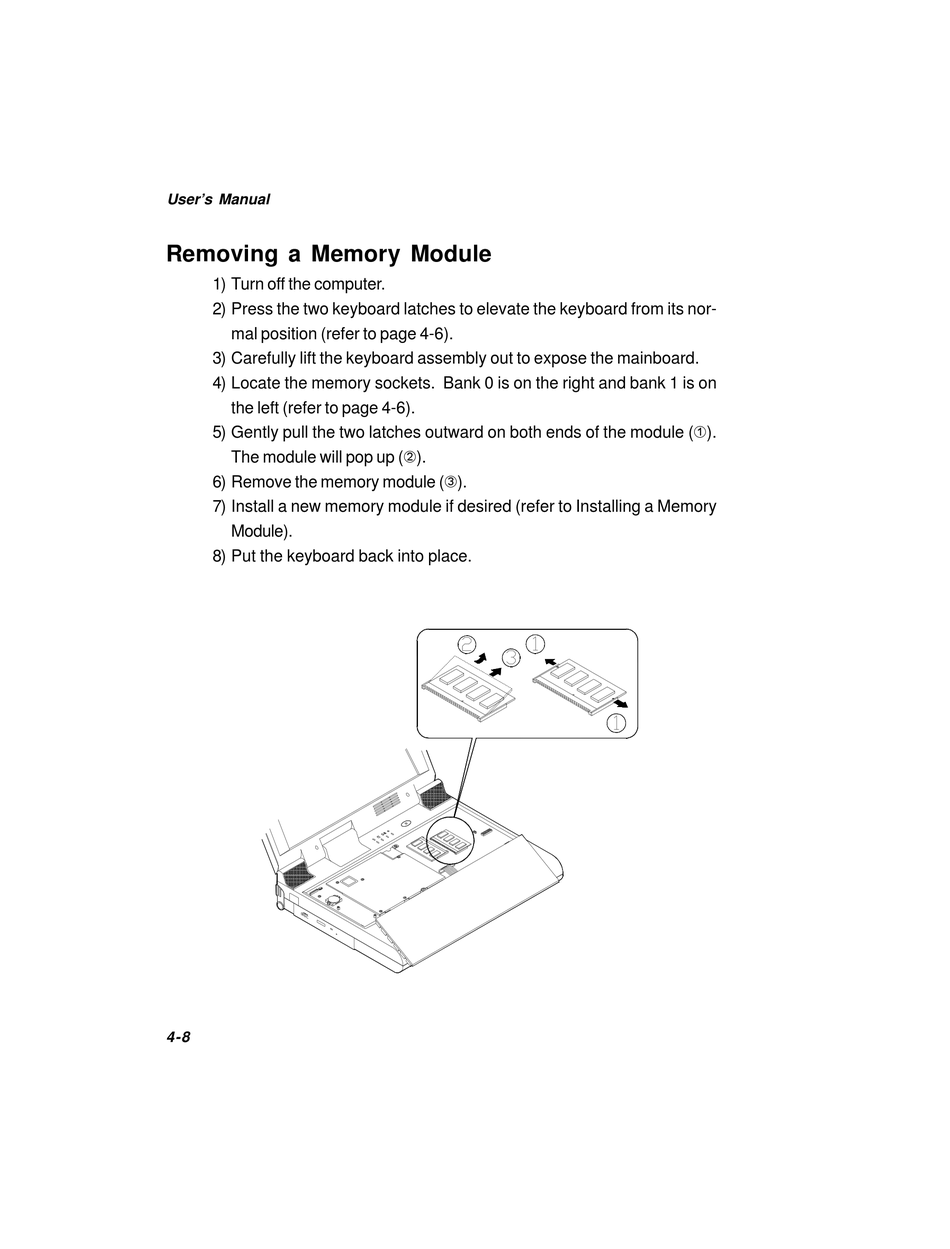

Removing a Memory Module

1) Turn off the computer.
2) Press the two keyboard latches to elevate the keyboard from its nor-
mal position (refer to page 4-6).
3) Carefully lift the keyboard assembly out to expose the mainboard.
4) Locate the memory sockets. Bank 0 is on the right and bank 1 is on
the left (refer to page 4-6).
5) Gently pull the two latches outward on both ends of the module (!).
The module will pop up (").
6) Remove the memory module (#).
7) Install a new memory module if desired (refer to Installing a Memory
Module).
8) Put the keyboard back into place.
4-8
