D: Reinstall the heat sink
Note: When reinstalling the heat sink, you will also have to
replace the heat sink pad. A heat sink pad can be obtained from
your dealer.
1) Peel off the old heat sink pad and stick on a new one.
2) Insert the heat sink cable in the slot. (page 4-12,
Figure 4-3)
3) Align the 4 screw holes on the heat sink with those on the
mainboard and screw them in about half way. Once all the
screws are in about half way and the heat sink is seated
probably tighten the screws.
Chapter 4: Upgrading the Computer

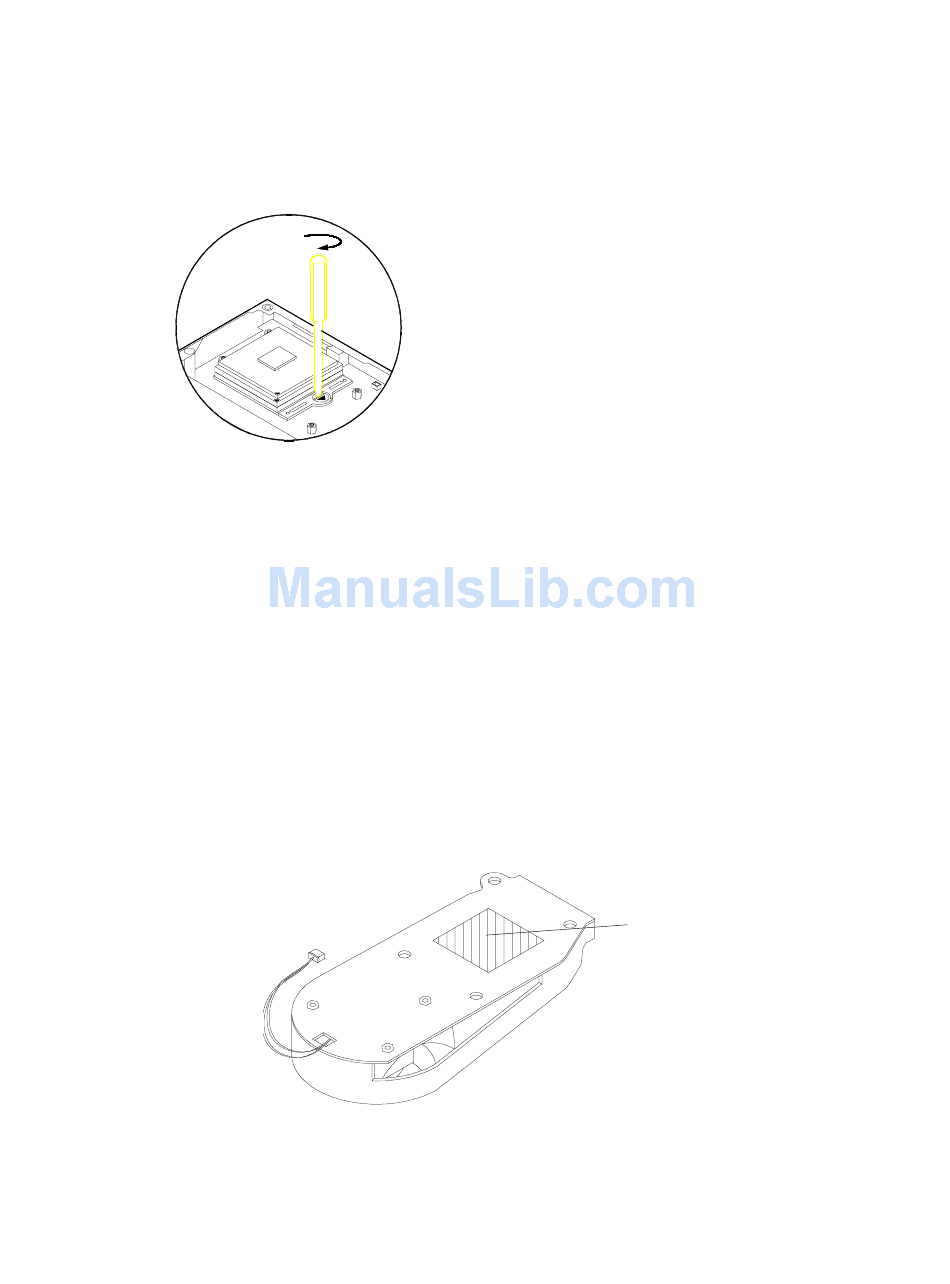

3) Turn the screw to the locked
position (L)
Heat sink pad
