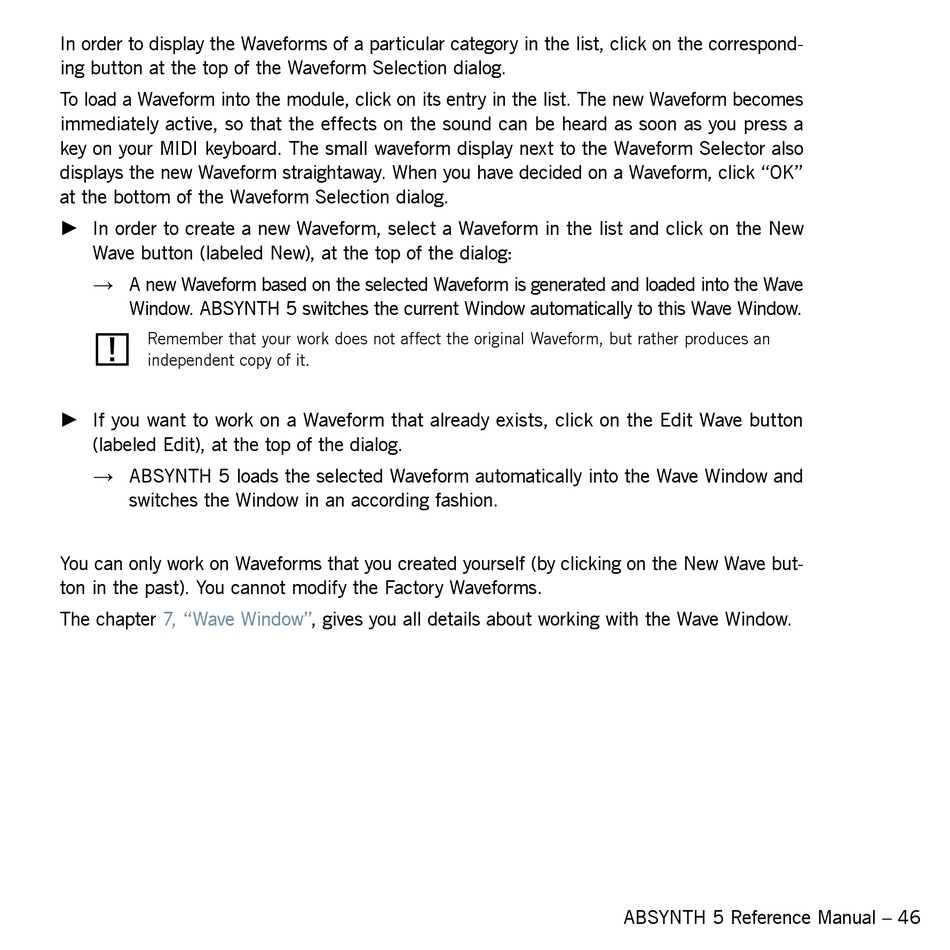

Native Instruments Absynth 5 Reference Manual page 46

In order to display the Waveforms of a particular category in the list, click on the correspond-
ing button at the top of the Waveform Selection dialog.
To load a Waveform into the module, click on its entry in the list. The new Waveform becomes
immediately active, so that the effects on the sound can be heard as soon as you press a
key on your MIDI keyboard. The small waveform display next to the Waveform Selector also
displays the new Waveform straightaway. When you have decided on a Waveform, click "OK"
at the bottom of the Waveform Selection dialog.
►
In order to create a new Waveform, select a Waveform in the list and click on the New
Wave button (labeled New), at the top of the dialog:
→
A new Waveform based on the selected Waveform is generated and loaded into the Wave
Window. ABSYNTH 5 switches the current Window automatically to this Wave Window.
Remember that your work does not affect the original Waveform, but rather produces an
!
independent copy of it.
►
If you want to work on a Waveform that already exists, click on the Edit Wave button
(labeled Edit), at the top of the dialog.
→
ABSYNTH 5 loads the selected Waveform automatically into the Wave Window and
switches the Window in an according fashion.
You can only work on Waveforms that you created yourself (by clicking on the New Wave but-
ton in the past). You cannot modify the Factory Waveforms.
The chapter 7, "Wave Window", gives you all details about working with the Wave Window.
ABSYNTH 5 Reference Manual – 46
