FM...: Frequency modulation; the current waveform serves as carrier. This dialog allows
you to change the following features:
▪
Waveform Selector: select a modulator waveform from the Waveform Selector (light
blue button).
▪
Modulator Frequency control: defines the frequency ratio between modulator and carrier.
▪
Modulation Index control: determines the FM's intensity.
▪
Carrier Frequency control: defines the carrier's frequency ratio.
▪ Mod Phase control: regulates the modulator's phase.
▪ Load...: loads a waveform and replaces the existing waveform.
▪
Import from audio file...: loads the first 1024 samples from an AIFF- or WAV file as
a waveform.
▪
Load Template...: retrieves a saved waveform from ABSYNTH's Universal Library.
▪
Save as Template...: saves a waveform in ABSYNTH's Universal Library.
▪
Clear: produces silence.

7.4 Spectrum Edit

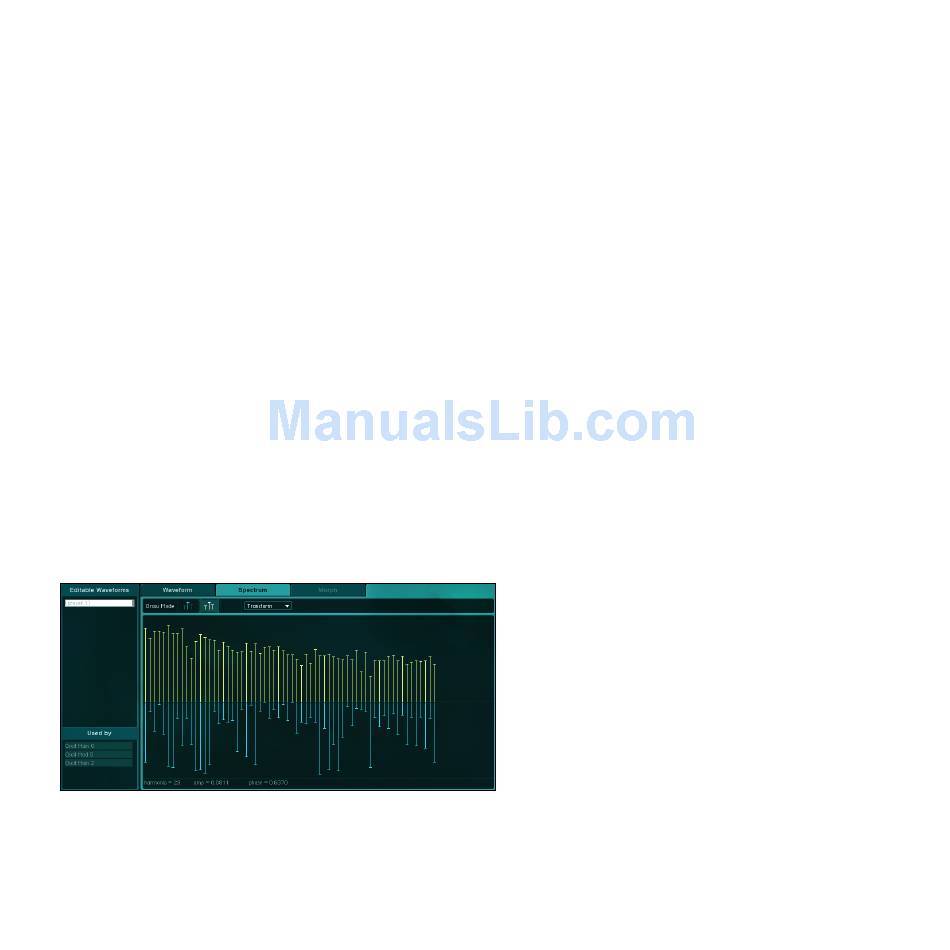

The Spectrum page of the Wave Window displays the edited waveforms' first 64 harmonics.
The top half of the display shows the harmonics' amplitude, the lower half their phase. At
the bottom of the window you can see – depending on the mouse position – the harmonic's
