Master Channel - Native Instruments Absynth 5 Reference Manual

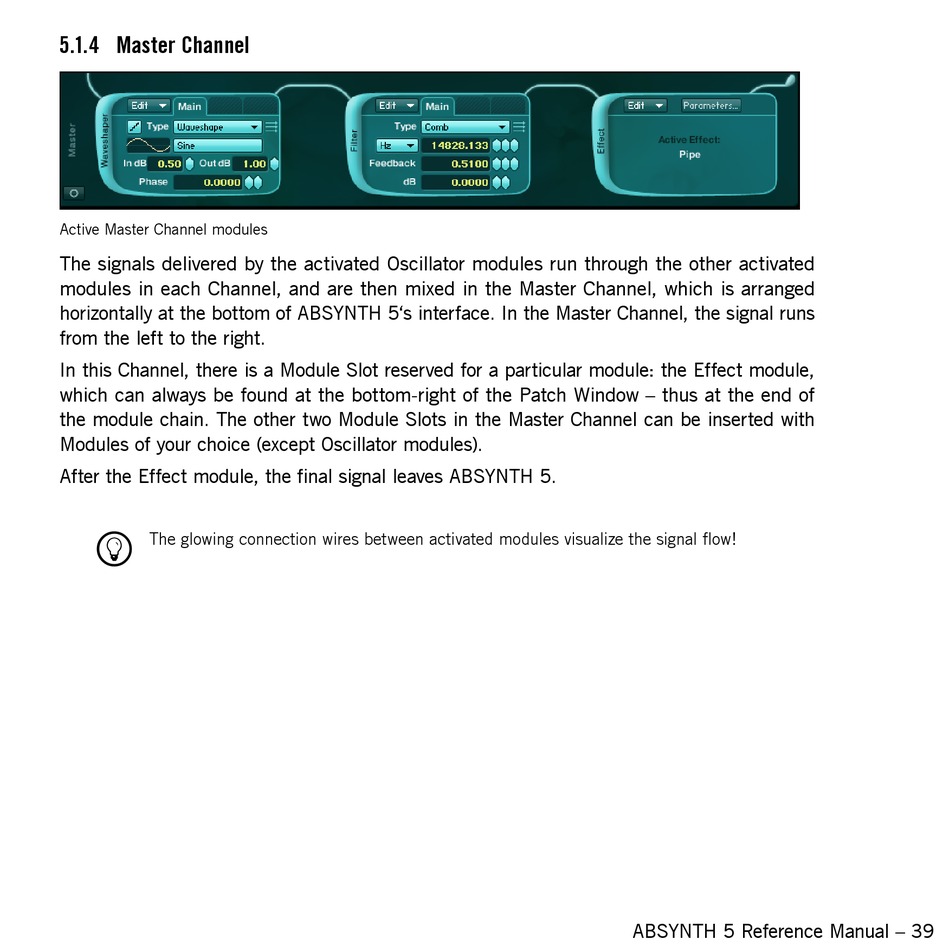

5.1.4 Master Channel

Active Master Channel modules
The signals delivered by the activated Oscillator modules run through the other activated
modules in each Channel, and are then mixed in the Master Channel, which is arranged
horizontally at the bottom of ABSYNTH 5's interface. In the Master Channel, the signal runs
from the left to the right.
In this Channel, there is a Module Slot reserved for a particular module: the Effect module,
which can always be found at the bottom-right of the Patch Window – thus at the end of
the module chain. The other two Module Slots in the Master Channel can be inserted with
Modules of your choice (except Oscillator modules).
After the Effect module, the final signal leaves ABSYNTH 5.
The glowing connection wires between activated modules visualize the signal flow!
%
ABSYNTH 5 Reference Manual – 39
