Front USB Assembly

Description
Front I/O and card reader (6-in-1)
The front USB assembly is secured to the front of the chassis with one screw. Push the assembly into
the chassis to remove it.
1. Prepare the computer for disassembly
2. Remove the access panel
3. Remove the front bezel
4. Disconnect the four cables from the system board as follows:
●
Yellow connector labeled F_AUDIO
●
White connector labeled MINI_LED
●
White connector labeled F_USB3
●
Black connector labeled F_USB2

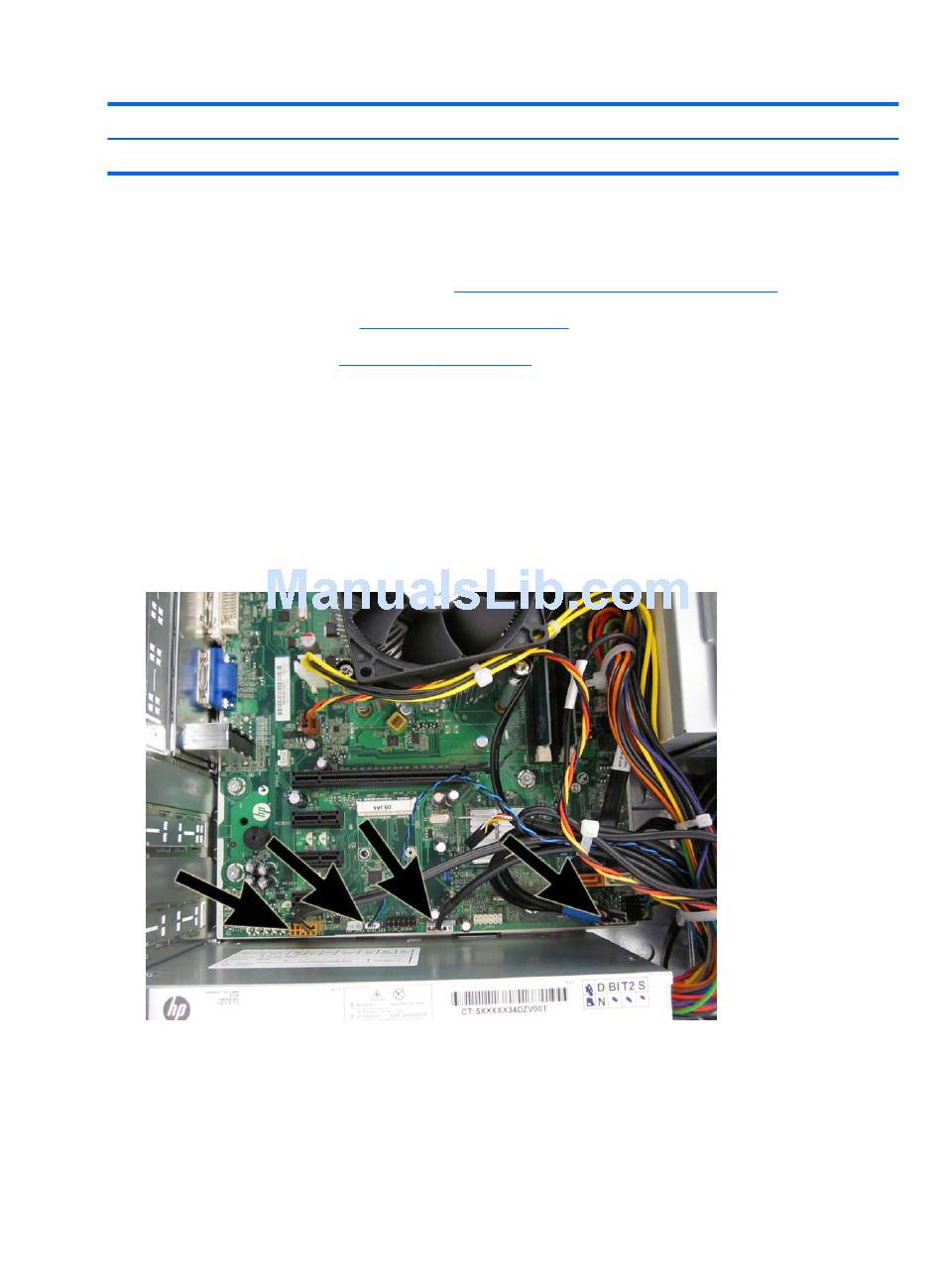

Figure 8-27
126 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
(Access Panel on page
(Front Bezel on page
Disconnecting the front I/O cables
(Preparation for Disassembly on page
102).
104).
Spare part number
656983-001
101).
