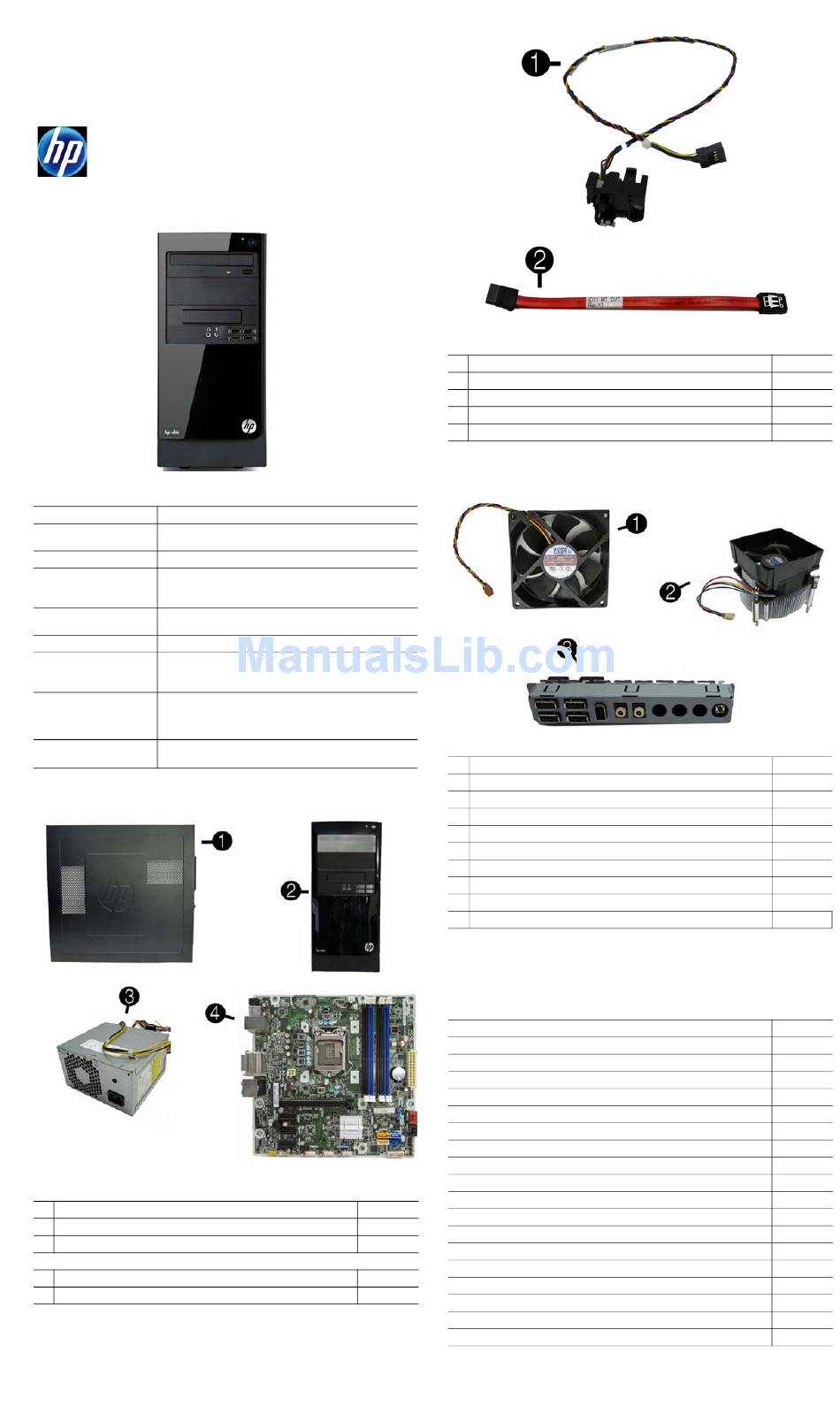

Illustrated Parts & Service Map
HP Elite 7300/7500 Microtower Business PC
© 2011, 2012 Hewlett-Packard Development Company, L.P. The information
contained herein is subject to change without notice. HP shall not be liable for
technical or editorial errors or omissions contained herein.
Microsoft and Windows are either trademarks or registered trademarks of
Microsoft Corporation in the United States and/or other countries.
Document Number 663324-003.
3rd Edition June 2012.
Key Specifications
Processor Type
Intel® Core™ i7, i5, i3, Pentium, Celeron
RAM Type
PC3-10600 DDR3 (1066/1333 MHz), non-ECC (model 7300)
PC3-12800 DDR3 (1600 MHz), non-ECC (model 7500)
Maximum RAM
16 GB
Expansion Slots
•
(1) PCIe-x16
•
(3) PCIe-x1
•
(1) MiniPCI
Chipset
Intel H67 Express (model 7300)
Intel Z75 Express (model 7500)
Graphics Adapter
Intel HD graphics
Bays
•
(2) external 5.25-inch
•
(1) external 3.5-inch
•
(2) internal 3.5-inch
I/O Interfaces
Front: (2) USB 2.0, (2) USB 3.0, headphone, microphone
Rear: (4) USB 2.0, DVI-I, DVI-D, VGA, PS/2 keyboard and
mouse, audio in, microphone, 5.1/7.1 channel audio out,
SPDIF Digital out, RJ-45, surround side/rear/center
Preinstalled Operating
•
Windows® 7
Systems
•
FreeDos

Spare Parts

System Unit
1
Access panel
657104-001
2
Front bezel
657112-001
3
Power supply, 300W
656721-001
System boards with thermal grease, alcohol pad, and CPU socket cover
4
System board for use in 7300 models
656599-001
*
System board for use in 7500 models
687940-001
* Not shown
Cables
1
Power switch/LED assembly
657105-001
2
SATA cable, 165 mm
657102-001
*
Adapter, DVI to VGA
202997-001
*
Adapter, DVI to VGA, HF
657401-001
*
Adapter, DVI to VGA, 29-pin, HF
657851-001
*Not shown
Miscellaneous Parts
1
Chassis fan
657103-001
2
Fan sink
657402-001
3
Front USB and I/O assembly
657113-001
*
Fan duct
657403-001
*
Card reader, 15-in-1
657099-001
*
Card reader, bezel blank
657853-001
*
Card reader, bezel
657854-001
*
Mouse, USB, optical
596410-001
*
RTC battery
319603-001
*
Rubber feet
530593-001
*Not shown
Mass Storage Devices (not illustrated)
16X SATA DVD±RW drive with
581600-001
Blu-ray BD-RW SuperMulti DL Drive
617030-001
Bezel, optical drive
657852-001
3 TB, 5400 rpm SATA hard drive
668149-001
2 TB, 7200 rpm SATA hard drive
616608-001
2 TB, 5400 rpm SATA hard drive
613210-001
1.5 TB, 7200 rpm SATA hard drive, 6G
613209-001
1.5 TB, 5400 rpm SATA hard drive, 3G
652272-001
1 TB, 7200 rpm SATA hard drive
636930-001
1 TB, 7200 rpm SATA hard drive
621418-001
750 GB, 7200 rpm SATA hard drive, 6G
639363-001
750 GB, 7200 rpm SATA hard drive, 3G
632938-001
500 GB, 7200 rpm SATA hard drive, 6G
636929-001
500 GB, 7200 rpm SATA hard drive, 3G
621421-001
320 GB, 7200 rpm SATA hard drive, 6G
621420-001
320 GB, 7200 rpm SATA hard drive, 3G
621420-001
256 GB Solid-state drive (SSD)
661842-001
128 GB Solid-state drive (SSD)
665961-001
120 GB Solid-state drive (SSD)
661841-001
Page 1
