Front Usb Assembly - HP PRO 3380 Maintenance & Service Manual

Front USB Assembly

Description
Front I/O and USB assembly
The front USB assembly is secured to the front of the chassis with one screw. Push the assembly into
the chassis to remove it.
1. Prepare the computer for disassembly
2. Remove the access panel
3. Remove the front bezel
4. Disconnect the two cables from the system board as follows:
●
Yellow connector labeled F_AUDIO
●
White connector labeled F_USB2
5. Remove the cables from the clip on the base pan of the computer.

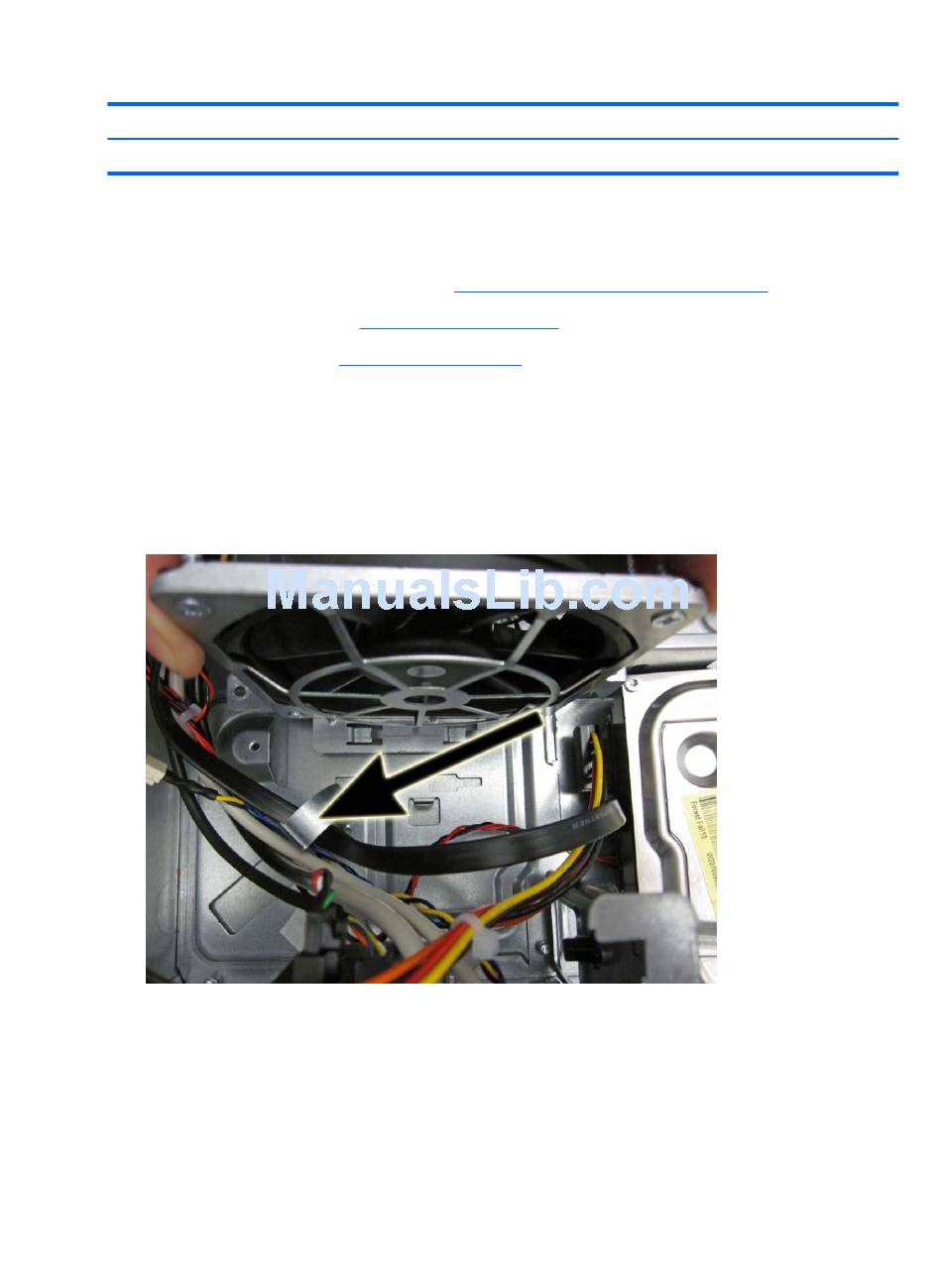

Figure 8-26
118 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
(Access Panel on page
(Front Bezel on page
Removing the cables from the clip
(Preparation for Disassembly on page
95).
97).
Spare part number
668570-001
94).
