HP Elite 7300 Illustrated Parts & Service Map

Illustrated Parts & Service Map

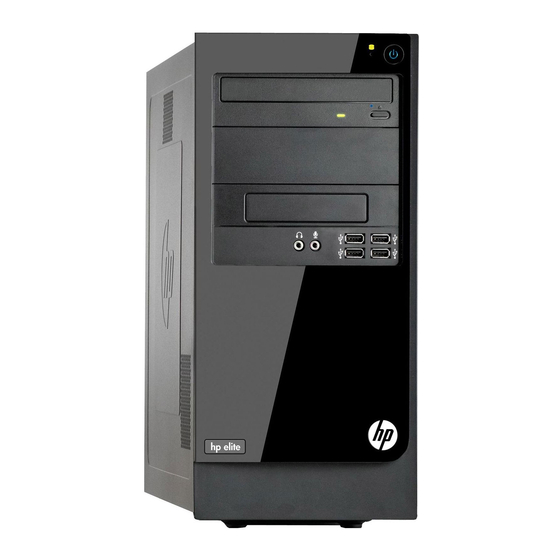

HP Elite 7300/7500 Microtower Business PC
© 2011, 2012 Hewlett-Packard Development Company, L.P. The information
contained herein is subject to change without notice. HP shall not be liable for
technical or editorial errors or omissions contained herein.
Microsoft and Windows are either trademarks or registered trademarks of
Microsoft Corporation in the United States and/or other countries.
Document Number 663324-004.
Key Specifications
Processor Type Intel® Core™ i7, i5, i3, Pentium, Celeron
RAM Type PC3-10600 DDR3 (1066/1333 MHz), non-ECC (model 7300)
PC3-12800 DDR3 (1600 MHz), non-ECC (model 7500)
Maximum RAM 16 GB
Expansion Slots •
•
•
Chipset Intel H67 Express (model 7300)
Intel Z75 Express (model 7500)
Graphics Adapter Intel HD graphics
Bays •
•
•
I/O Interfaces Front: (2) USB 2.0, (2) USB 3.0, headphone, microphone
Rear: (4) USB 2.0, DVI-I, DVI-D, VGA, PS/2 keyboard and
mouse, audio in, microphone, 5.1/7.1 channel audio out,
SPDIF Digital out, RJ-45, surround side/rear/center
Preinstalled Operating •
Systems
•
•

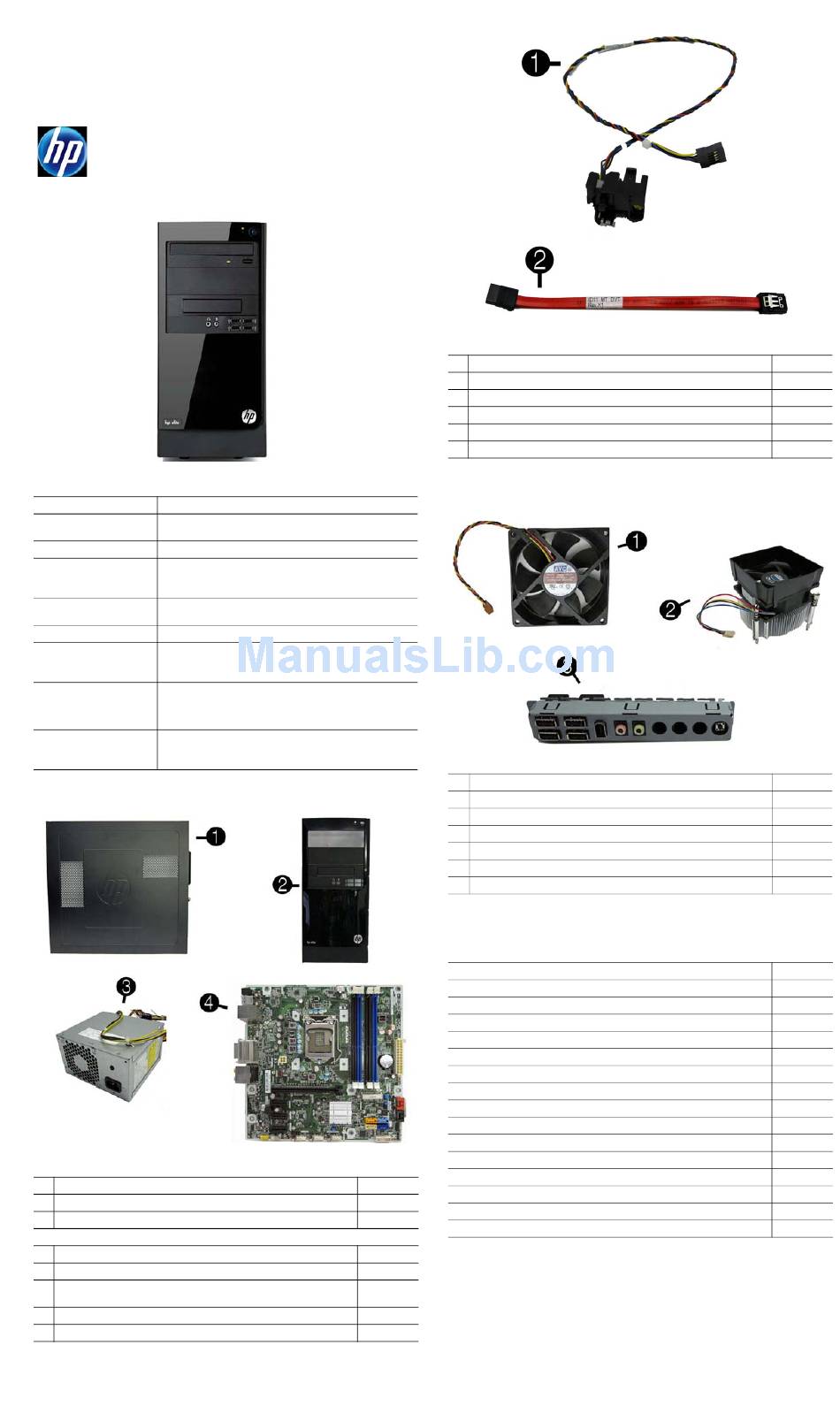

Spare Parts

System Unit
1 Access panel
2 Front bezel
3 Power supply, 300W
System boards with thermal grease, alcohol pad, and CPU socket cover
4 System board for use in 7300 models
* System board for use in 7500 models
* System board for use in 7500 models with Windows 8 with no Digital
Product Key (DPK)
* System board for use in 7500 models with Windows 8 Standard
* System board for use in 7500 models with Windows 8 Professional
* Not shown
HP Elite 7300/7500, MT
4th Edition November 2012.
(1) PCIe-x16
(3) PCIe-x1
(1) MiniPCI
(2) external 5.25-inch
(1) external 3.5-inch
(2) internal 3.5-inch
Windows® 8
Windows 7
FreeDos
Cables
1 Power switch/LED assembly
2 SATA cable, 165 mm
* Adapter, DVI to VGA, HF
* Adapter, DVI to VGA, 29-pin, HF
* Antenna, for use with 2x2 WLAN modules
* Antenna, for use with 1x1 WLAN modules
*Not shown
Miscellaneous Parts
1 Chassis fan
2 Fan sink
3 Front USB and I/O assembly
* Card reader, bezel blank
* Card reader, bezel
* RTC battery
* Rubber feet
*Not shown
Mass Storage Devices (not illustrated)
16X SATA DVD±RW drive with
Blu-ray BD-RW SuperMulti DL Drive
Bezel, optical drive
3 TB, 7200 rpm SATA hard drive
3 TB, 5400 rpm SATA hard drive
2 TB, 7200 rpm SATA hard drive
2 TB, 5400 rpm SATA hard drive
1.5 TB, 7200 rpm SATA hard drive, 6G
1.5 TB, 5400 rpm SATA hard drive, 3G
1 TB, 7200 rpm SATA hard drive
750 GB, 7200 rpm SATA hard drive, 3G
500 GB, 7200 rpm SATA hard drive, 3G
320 GB, 7200 rpm SATA hard drive, 6G
657104-001
256 GB Solid-state drive (SSD)
657112-001
128 GB Solid-state drive (SSD)
656721-001
120 GB Solid-state drive (SSD)
656599-001
687940-001
696887-001
696887-501
696887-601
663324-004
657105-001
657102-001
657401-001
657851-001
593890-001
701397-001
657103-001
657402-001
657113-001
657853-001
657854-001
319603-001
530593-001
581600-001
617030-001
657852-001
696961-001
668149-001
616608-001
613210-001
613209-001
652272-001
621418-001
632938-001
621421-001
621420-001
661842-001
665961-001
661841-001
