Front I/O, USB, Power Switch Assembly

1. Prepare the computer for disassembly
2. Remove the computer access panel
3. Remove the front bezel
4. Disconnect the three cables (front USB, power button LED, and front audio) from the system board.
5. Remove the audio cable from the clip on top of the fan shroud.
6. Remove the screw that secures the assembly to the front of the chassis (1).
7. Push the assembly (2) into the unit, rotating the bottom inward first so the tabs at the top clear the
slot in the front of the chassis.

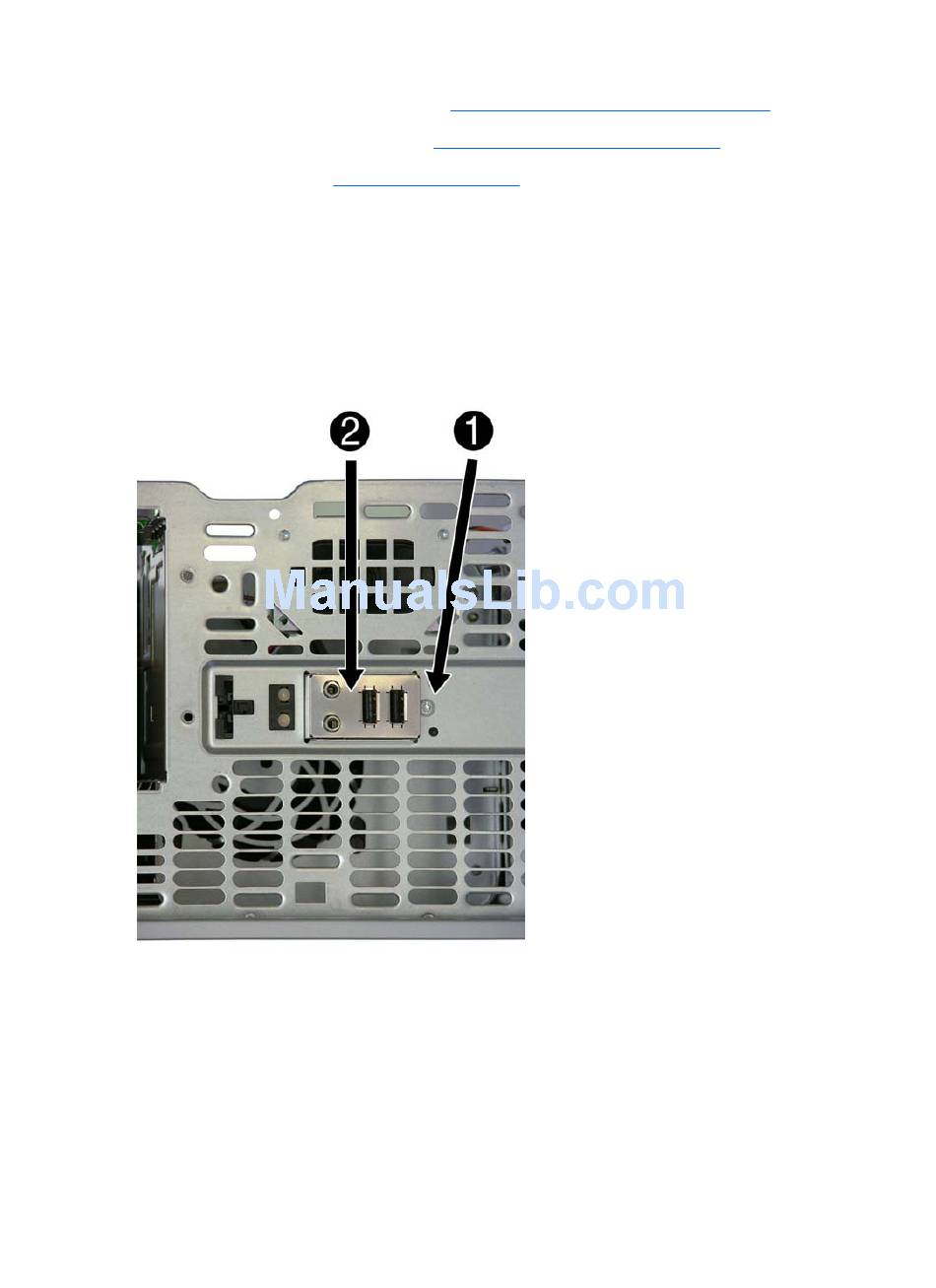

Figure 7-44
8. Lift the assembly up and out of the chassis while pulling the three cables through the holes on the
inside chassis wall, and then remove the assembly from the computer.
To reinstall the assembly, reverse the removal procedure.
