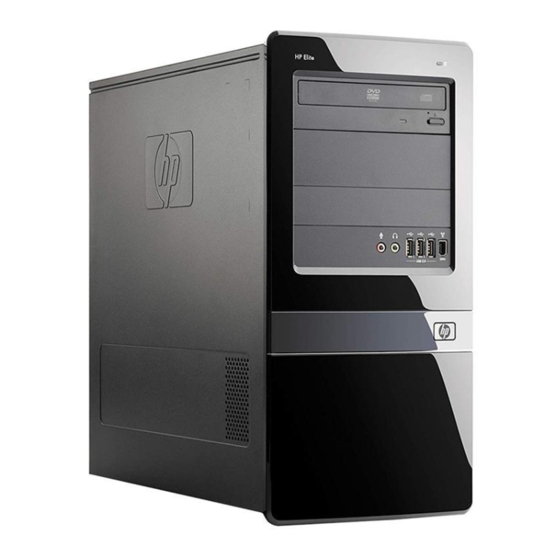

HP Elite 7000 - Microtower PC Manual

Illustrated Parts & Service Map
HP Elite 7000 MT Series PCs
©
2009 Hewlett-Packard Development Company, L.P. The information con-
tained herein is subject to change without notice. HP shall not be liable for
technical or editorial errors or omissions contained herein.
Document Number 589095-001.
Key Specifications
Processor Type Intel® Core™ i5, Intel Core i7
Max RAM Type up to 8 GB; PC-3-10600 (1333MHz) DDR3 SDRAM
Expansion Slots •
•
Integrated Graphics none; expansion card required
Chipset Intel P55 Express
Drive Support •
•
I/O Interfaces USB ports: (3) front, (6) rear; (3) internal headers on system
board (one for front ports, one for media card reader, one
reserved for 3PO device, such as tax controller), (1) RJ-45, (1)
1394, (1) audio in, (1) audio out, (1) microphone, (1) surround
center, (1) surround right, (1) surround left, on(1) optical out
Operating Systems •
•
•
•
•

Spare Parts

System Unit
1 Access panel
2 Power supply, 300W, PFC
2 Power supply, 300W, NPFC
3 Chassis
4 Front bezel
* 5.25-inch bezel blank
* 3.5-inch bezel blank
* Not shown
HP Elite 7000 MT Series
1st Edition October 2009.
1 PCI x16
3 PCI x1
External: (2) 5.25-inch and (1) 3.5-inch drive bays
Internal: (2) 3.5-inch drive bays
Windows® 7
Windows XP Professional
Windows Vista® Business
Novell SUSE Linux Enterprise Desktop 11
FreeDOS
Mass Storage Devices (not illustrated)
22-in-1 media card reader, 3.5-inch
16X SATA DVD±RW and CD-RW drive with LightScribe
16X SATA DVD-ROM drive
Blu-ray ROM DVD±R/RW SuperMulti DL Drive with LightScribe
1 TB (1000 GB) SATA hard drive
500 GB SATA hard drive
250 GB, 7200-RPM SATA hard drive
160 GB, 7200-RPM SATA hard drive
64 GB solid state drive (SSD)
Cables
1 Front I/O with USB
2 Power switch/LED cable assembly
3 SATA HDD cable, 4 inch (10 cm)
* SATA cable, 6.5 inch (16.5 cm)
* SATA cable, 10 inch (25.4 cm)
* DMS-59 to dual VGA
* Adapter, DVI-I to VGA
* Modem cable, RJ-11
*Not shown
Keyboards (not illustrated)
USB, Standard
USB, Low cost
Arabic*
Belgian
BHCSY
Czech
Danish
Finnish
French
French Arabic
French Canadian**
German
Greek
Hebrew
Hungarian
International
*537924 only
**Not for 537924
Keyboards (not illustrated)
USB, Mini
USB, Smartcard
USB, Washable
French*
586372-001
French Canadian
463317-001
International*
463318-001
Italian*
not spared
*Not for 535873 or 537747
586373-001
536306-001
583094-001
589095-001
537746-xxx
537924-xxx
-171 Italian
-261 Norwegian
-B41 Polish*
-221 Portuguese
-081 Romanian
-351 Russian
-051 Slovakian
-DE1 Spanish
-121 Swedish
-041 Swiss
-151 Turkish
-BB1 U.S.**
-211 U.K.
-L31
535873-xxx
537747-xxx
577495-xxx
-051 Swedish*
-121 Spanish*
-L31 U.S.
-061 U.K.*
480032-001
581600-001
581599-001
581601-001
585465-001
586720-001
586719-001
586718-001
581057-001
487744-001
464574-001
449283-001
448670-001
392307-001
463023-001
202997-005
198220-005
-061
-091
-241
-131
-271
-251
-231
-071
-101
-111
-141
-001
-031
-101
-071
-001
-031
page 1
