Summary of Contents for Peco WavePRO T2500

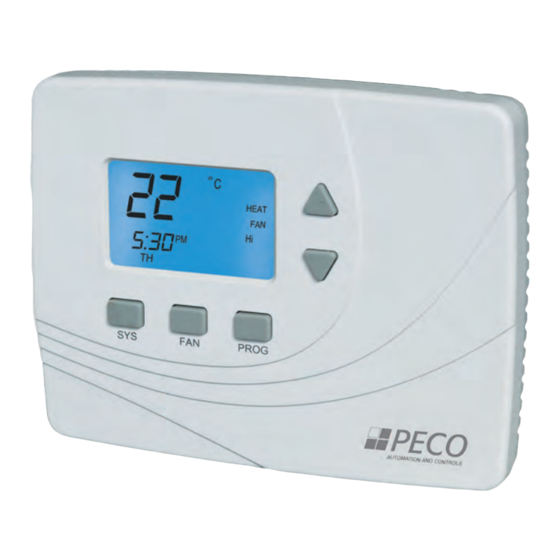

- Page 1 WavePRO Wireless Programmable ™ T2500 Thermostat & R2500 Receiver oPeRaTing manUal Model K2500-001...
-
Page 2: The Peco Wavepro Wireless System
Thank you for choosing the PECO WavePRO Wireless System (Model K2500-001). The PECO WavePRO Wireless System is a wireless thermostat transmitter and receiver. It is designed for use with conventional (gas, oil, electric) or heat-pump systems. It can support up to 2-HEAT/ 2-COOL confi gurations in conventional systems and 3-HEAT/ 2-COOL confi gurations in heat pump applications. -
Page 3: Product Specifications
Product Specifications (Model K2500-001) Temperature Range: 50° to 90° F (10° to 32° C) Differential: 1° F (0.5°C) T2500 Thermostat: Two AA alkaline batteries or 24 VAC, 50/60 Hz Input Power: R2500 Receiver: 24 VAC, 50/60 Hz Output Power 24 VA (Pilot Duty) Wireless Type: 902 to 928 MHz Band, Frequency Hopping Spread Spectrum (FHSS) Wireless Range:... -
Page 4: Table Of Contents
Table of ConTenTS The PECO WavePRO Wireless System ....................2 T2500 TheRmoSTaT Front panel display reference: T2500 Thermostat ................6 Button operation ..........................7 The T2500 Display ..........................10 The T2500 Display menus ......................... 11 Set the time and day ......................... 14 Select the Fahrenheit or Celsius temperature ................... - Page 5 • This product, when installed, will be part of an engineered system whose specifications and performance characteristics are not designed or controlled by PECO. You must review your application and national and local codes to assure that your installation will be functional and safe.
-
Page 6: Front Panel Display Reference: T2500 Thermostat
fRonT Panel DiSPlay RefeRenCe: T2500 TheRmoSTaT Following are the T2500 Thermostat Display and buttons. Display UP ▲and DOWN ▼ buttons PROGRAM SYSTEM button button FAN button... -
Page 7: Button Operation
(To appear, SETBACK must be selected in “Advanced configuration.” See the “PECO WavePRO Wireless System Installation Guide”). noTe: The SYS button is also used to scroll through the Service Menu in advanced configuration.(see “Advanced configuration” in the “PECO WavePRO Wireless ™... -
Page 8: Fan Button
bUTTon oPeRaTion fan button The FAN button is used to control the fan mode. Pressing FAN will light up the two fan mode options described below. Press FAN to scroll through the options. As you scroll, the flashing option is automatically selected. The T2500 Thermostat times out and automatically saves the flashing option. - Page 9 bUTTon oPeRaTion SET – Initiates the time and temperature schedule for a particular day or group of days. Allows you to reset the thermostat to the factory default factory settings program. (see “Programming the T2500”). COPY – Copies one day’s schedule to another day or to another group of days (see “Programming the T2500”).
-
Page 10: The T2500 Display
The T2500 DiSPlay Figure 1 below illustrates the various display menus in the T2500 display. The menus are: System Mode Display Programming Commands Program Override Commands Temperature Display Time Period Indicators Service Indicator Time & Day Display Fan Operation Indicators Keypad Lockout Battery Indicator Figure 1. -
Page 11: The T2500 Display Menus
OFF – Turns off the entire system. SETBACK – Indicates the heating or cooling system is operating in manual setback mode. (To appear, SETBACK must be selected in “Advanced configuration.” See the “PECO WavePRO Wireless System Installation Guide”). Temperature Display Default display: Digits display the current room temperature. - Page 12 The T2500 DiSPlay menUS (ConT.) format. AM / PM – Indicates 12-hour clock format. Programming Commands SET – Enters thermostat into custom program mode which allows you to specify a unique times and temperatures for a particular day or group of days. COPY –...
- Page 13 Keypad lockout Allows you to set keypad access. If keypad prohibits input, see “Advanced Configuration” in “PECO Wave Wireless System TW205/TW206 &RW205 Installation Guide.” battery indicator Lit only when battery is low; flashes when at a critically low level—replace immediately.
-
Page 14: Set The Time And Day
SeT The Time anD Day Make your selections in consecutive order. Set the time 1. Press PROG to show program options. 2. Press ▲or ▼to scroll until “CLOCK” is flashing. To select, press PROG once. 3. Press ▲or ▼to scroll through “24Hr”, “AM”, “PM”... -
Page 15: Select The Fahrenheit Or Celsius Temperature
SeleCT The fahRenheiT oR CelSiUS TemPeRaTURe Set the temperature display using the following simple steps. Settings are saved automatically after you exit the PROG mode. 1. Press PROG once. 2. Press ▲or ▼to scroll until BOTH “°F/°C” are flashing. 3. Press PROG once to enter the temperature menu for “°F/°C”... -
Page 16: Programming The T2500
PRogRamming The T2500 Each day has four scheduled periods (WAKE, DAY, EVE, and SLEEP ). Each one of the periods has a start time and heat and cool setpoints. Heat Setpoint controls system heating during cold weather. Cool Setpoint controls the cooling system during hot weather. (Your thermostat is preprogrammed with factory default settings.) Program one event after the next, in consecutive order. -
Page 17: Custom Program
CUSTom PRogRam The T2500 can be programmed with settings for each day individually, for Monday through Friday, for Saturday and Sunday, or for all seven days as identical. Follow this step-by- step procedure. 1. Press PROG once. 2. Press ▲or ▼to scroll until “SET” is HOLD flashing. - Page 18 CUSTom PRogRam (ConT.) Day/Group of Days 5. Select one of the following options and press PROG. 7- Day individual Programming: Each day flashes individually. Select: “M,” Monday; “TU,” Tuesday; “W,” Wednesday; “TH,” Thursday; “F,” Friday,“SA,” Saturday, and “SU,” Sunday. You must program four periods for each day. 7- Day identical Programming: MTUWTHF “MTUWTHFSASU”...
- Page 19 CUSTom PRogRam (ConT.) 6. Press ▲or ▼to scroll through the four time periods (WaKe, Day, eVe, and SleeP). Select the time period to be programmed and press PROG once. 7. Press ▲or ▼to scroll to the desired starting hour. Press PROG once. 8.
- Page 20 CUSTom PRogRam (ConT.) Time & Temperature Programming Example In this example, the thermostat user wants to program the weekend with a schedule different from the Factory Program. The user wants the Saturday and Sunday program to be identical. 1. Press PROG once. 2.
-
Page 21: Custom Program: Copy Feature
CUSTom PRogRam: CoPy feaTURe You may also copy and paste all of an individual day’s settings to another day or to another group of days. 1. Press PROG once. 2. Press ▲or ▼to scroll until “COPY” is flashing. 3. Press PROG once to select “COPY”. 4. -
Page 22: Overriding The Program
oVeRRiDing The PRogRam The T2500 Thermostat’s HOLD feature allows you to put the thermostat in Temporary Hold or Permanent Hold. HOLD will override programmed settings but does not lose them. 1. Press PROG once. 2. Press ▲or ▼to scroll until “HOLD” is flashing. - Page 23 oVeRRiDing The PRogRam (ConT.) Setting up a Permanent Hold: 1. Press PROG once. 2. Press ▲or ▼to scroll until “HOLD” is flashing. To select, press PROG once. 3. Press ▲or ▼to scroll to “ON”. To select, press PROG once. note: The thermostat is now on hold until you manually turn off the hold.
-
Page 24: Fcc Compliance
© Copyright 2010. PECO, Inc. All Rights Reserved. P/N 70161 3220-2216 REV 0 PECO WavePRO is a trademark, and PECO is a registered trademark of PECO, Inc. The PECO logo is a trademark and/or service mark of PECO, Inc.
