Wall Installation

For best results, follow the directions in "Battery Installation" on page 11
before installing the phone.
1 If the wedge is still attached to the underside of the base
unit, follow Step 1 in "Battery Installation" on page 11 to remove
the wedge.

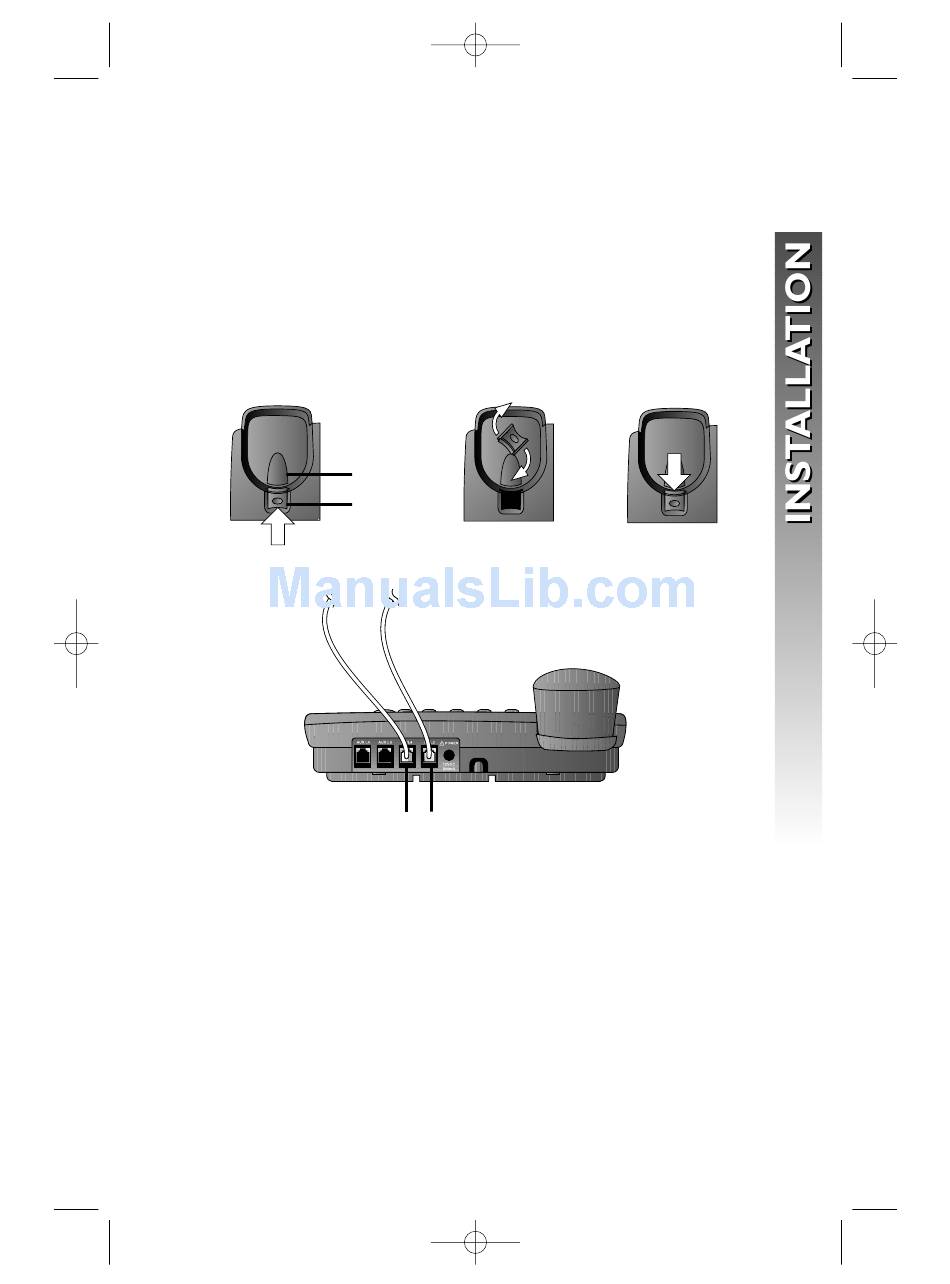

2 Reverse the handset tab.
Hold down the switchhook, then pull out the handset tab and
rotate it 180 degrees. Push the handset tab down into the
grooves so it settles into position.
3 Connect the telephone line cords to the telephone as shown.
4 Connect the handset cord.
Plug one end of the coiled handset cord into the jack on the left side
of the phone. Plug the other end into the handset and hang up.
3/31/2004 5:28 PM Page 15
Switchhook
Handset tab
L3/L4 jack
L1/L2 jack
continued on page 16
