Summary of Contents for AT&T 9002

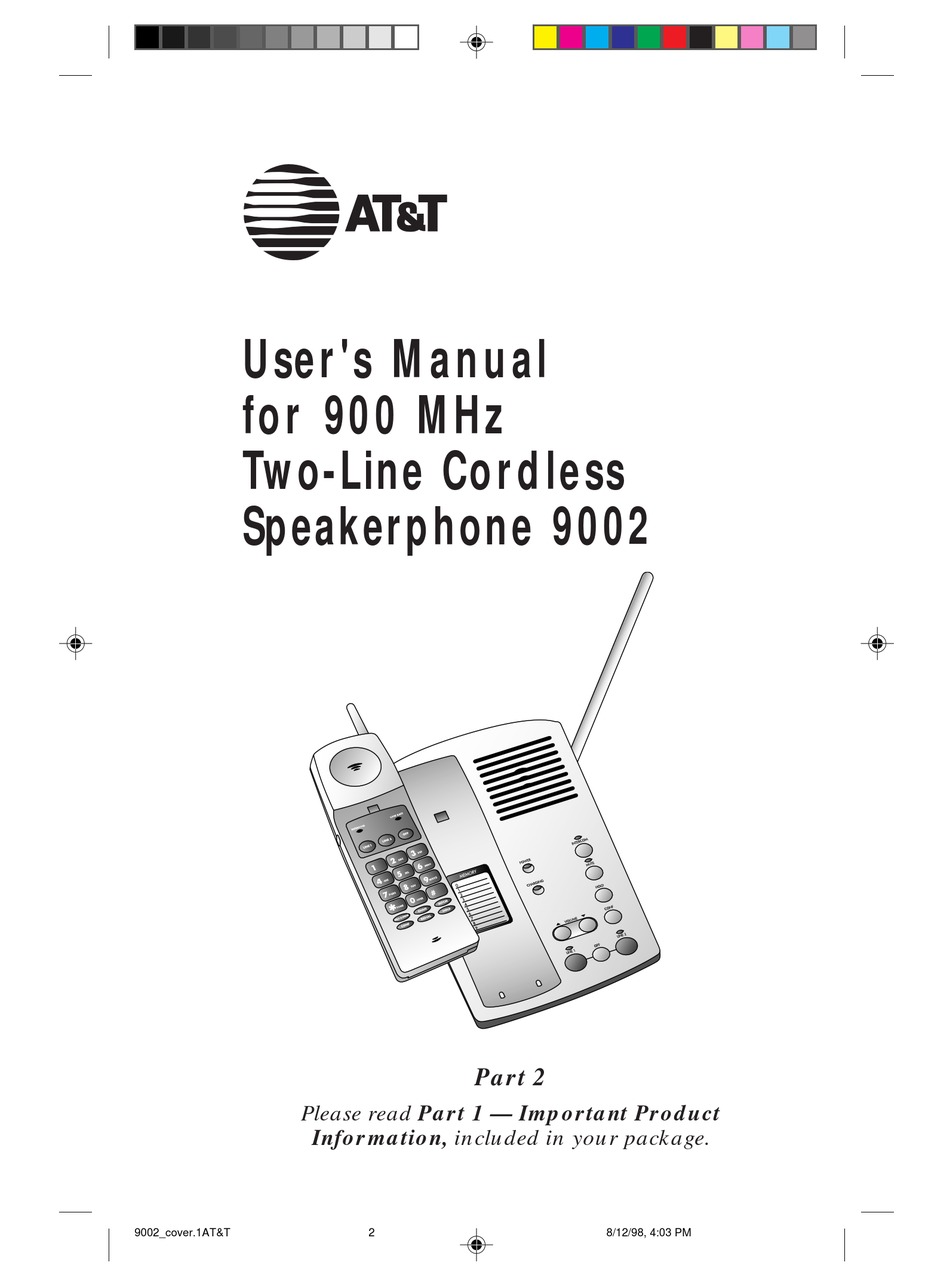

- Page 1 User's Manual for 900 MHz Two-Line Cordless Speakerphone 9002 Part 2 Please read Part 1 — Important Product Information, included in your package. 9002_cover.1AT&T 8/12/98, 4:03 PM...
- Page 2 © 1998 Philips Consumer Communications L.P. All rights reserved. Printed in China. 848233896 Issue 1AT&T 9002_cover.1AT&T 8/12/98, 4:03 PM...
-
Page 3: Table Of Contents
INSTALLATION... 3 Table/Desk Installation ... 3 Wall Installation ... 5 Belt Clip ... 6 OPERATION ... 7 Making a Call ... 9 Answering a Call ... 9 Ending a Call ... 9 Redial ... 9 Handset Ringer Selection and Ringer OFF ... 9 Handset Ringer Volume ... - Page 4 9002_book.1AT&T 8/12/98, 4:09 PM...
-
Page 5: Installation
Standard Electrical Outlet Power cord Table/Desk Installation Choose a spot near an electrical outlet and a telephone jack. This phone requires a modular telephone jack and a standard electrical outlet (110v AC). This outlet should not be controlled by a wall switch. Install the handset battery. - Page 6 INSTALLATION Connect the telephone line cord(s) to the base. • If you have a two-line jack, use only the white line cord. Plug one end into the jack labeled L1/L2 on the back of the base. If you have two separate jacks, use both the white and clear •...
-
Page 7: Wall Installation
Wall Installation Follow Steps 1–3 under Table/Desk Installation. Turn the base unit over, and attach the wall mounting base to the lower half of the base unit. Gently press down until it snaps firmly into place. Connect the power cord. Plug the power cord into the power jack on the back of the base. -
Page 8: Belt Clip
INSTALLATION the excess line cord under the tab on the bottom of the telephone base. Plug the line cord into your other one-line wall jack. You will be connected to Line 2. Mount the telephone on the wall jack. Position the telephone base so the mounting studs on the wall jack fit into the base of the telephone. -
Page 9: Operation
Light goes on when base is connected to power Directory Card 9002_book.1AT&T OPERATION and Line 1 and Line 2 RINGER switches on Line 2 – Activate speakerphone End a call Line 1 and Line 2 lights flash when handset or extension is in use Line 1 –... - Page 10 OPERATION Light goes on when intercom is in use Headset jack Volume HI/LO switch Light goes on when handset Line 1 – Make or battery is low answer a call End a call Line 2 – Make or answer a call Line 1 and Line 2 buttons flash if base or extension...
-
Page 11: Making A Call
Making a Call Press and release L or l, and wait for a dial tone. The line button of the line you’re using lights. When you hear a dial tone, dial the number. Answering a Call Press and release the flashing L or l button on the handset or the base to answer a call on that line. -
Page 12: Handset Ringer Volume
OPERATION Checking Handset Ringer Selection Press p, *. Press 1 for Line 1 or 2 for Line 2. Press *. You will hear the current ringer style selection. Press o to exit. NOTE: If you’re on a call on one line and a call comes in on the other line, you will hear an “alert”... -
Page 13: Special Telephone Services
Special Telephone Services If you subscribe to special local telephone company services like Call Waiting or Call Forwarding, you can access them by pressing the line button of the line you’re currently using whenever you would press the switchhook on a corded phone. -
Page 14: Conference Calls
OPERATION Conference Calls You can use both lines at the same time to set up a three-way conference call from the handset. Answer or make a call on one line. Press the other line button, and make or answer another call (your first call is automatically put on hold). -
Page 15: Headset Jack
Headset Jack You can use this telephone hands-free when you install an optional headset and use the belt clip provided. Attach the belt clip (see “Belt Clip” in the INSTALLATION section of this manual). Plug the headset (purchased separately) into the jack located on the right side of the handset. -
Page 16: Operating Range
OPERATING RANGE This cordless telephone operates at the maximum power allowed by the Federal Communications Commission (FCC). Even so, this handset and base can communicate over only a certain distance — which can vary with the locations of the base and handset, the weather, and the construction of your home or office. -
Page 17: Telephone Memory
This cordless phone can store 10 telephone numbers that you can dial just by pressing p and a number button. Storing Memory Numbers Make sure the handset is off. Press p. Press a number button (0 to 9) to select a memory location. Enter the number (up to 16 digits) you want to store —... -
Page 18: Batteries
BATTERIES CAUTION: To reduce the risk of fire or injury to persons or damage to the telephone, read and follow these instructions carefully. • Use only Replacement Battery 3740. • Do not dispose of the battery in a fire. The cell might explode. Check with local codes for special disposal instructions. - Page 19 BATTERIES The new battery pack must be charged before using this telephone. Place the handset in the base and allow it to charge for 16 hours. Your telephone might operate before that, but for best performance, let the handset battery pack charge fully. 9002_book.1AT&T 8/12/98, 4:09 PM...
-
Page 20: In Case Of Difficulty
IN CASE OF DIFFICULTY If you have difficulty operating this phone, try the suggestions below. If you still have trouble, call 1 800 722-9125. If the phone doesn’t work at all, check these items first: • Make sure the AC adapter is plugged in. •... - Page 21 IN CASE OF DIFFICULTY If the phone does not ring when you receive a call: • Make sure the handset ringer is on. • Make sure the telephone line cord(s) is connected firmly to the base and the modular telephone jack(s). •...
