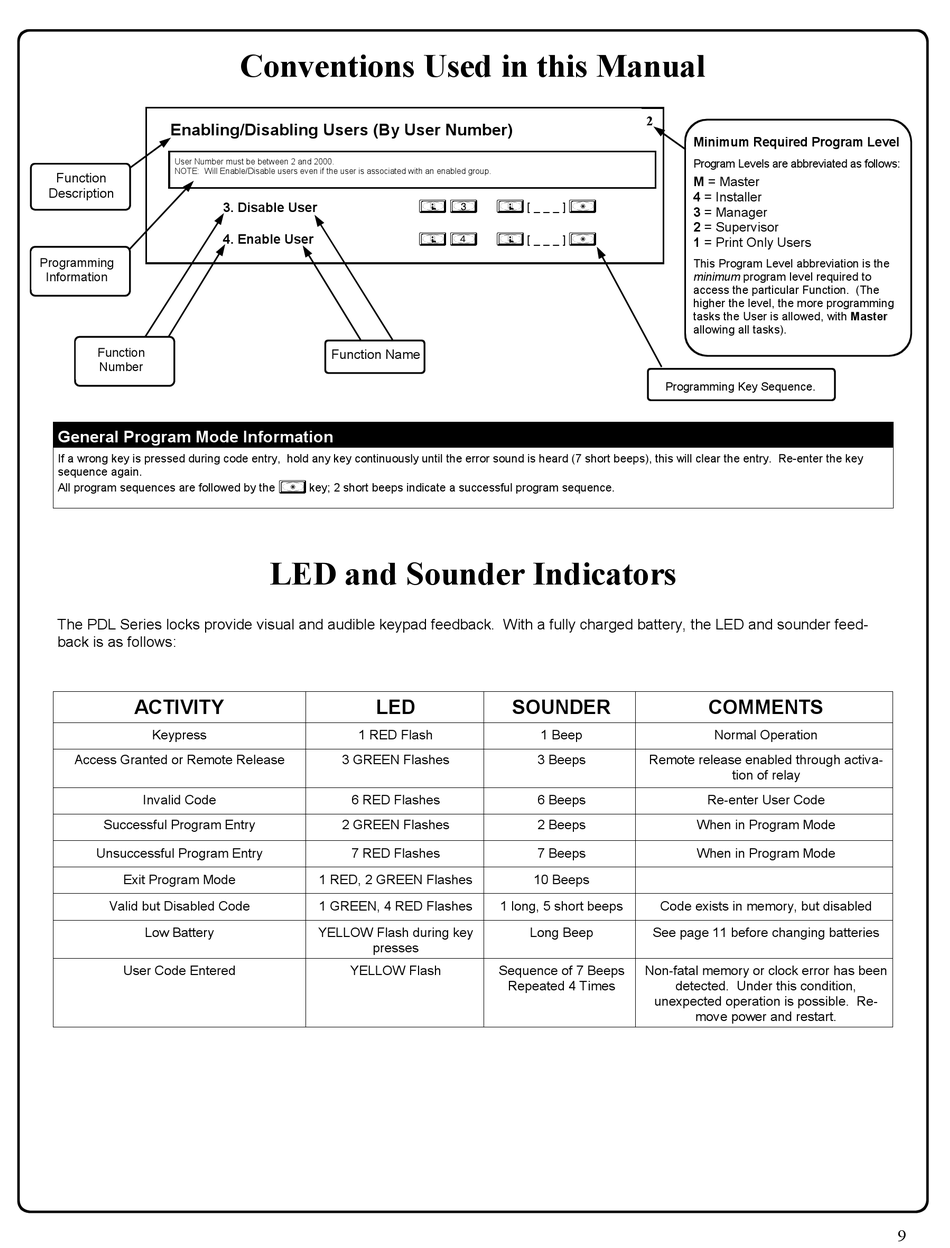

Conventions Used In This Manual; Led And Sounder Indicators - Alarm Lock Trilogy PDL3000 Programming Instructions Manual

Enabling/Disabling Users (By User Number)
User Number must be between 2 and 2000.
NOTE: Will Enable/Disable users even if the user is associated with an enabled group.
Function
Description
Programming
Information
Function
Number
General Program Mode Information
If a wrong key is pressed during code entry, hold any key continuously until the error sound is heard (7 short beeps), this will clear the entry. Re-enter the key
sequence again.
All program sequences are followed by the : key; 2 short beeps indicate a successful program sequence.
The PDL Series locks provide visual and audible keypad feedback. With a fully charged battery, the LED and sounder feed-
back is as follows:
ACTIVITY
Keypress
Access Granted or Remote Release
Invalid Code
Successful Program Entry
Unsuccessful Program Entry
Exit Program Mode
Valid but Disabled Code
Low Battery
User Code Entered

Conventions Used in this Manual

3. Disable User
4. Enable User
Function Name

LED and Sounder Indicators

LED
1 RED Flash
3 GREEN Flashes
6 RED Flashes
2 GREEN Flashes
7 RED Flashes
1 RED, 2 GREEN Flashes
1 GREEN, 4 RED Flashes
YELLOW Flash during key
presses
YELLOW Flash
; 3 ; [ _ _ _ ] :
; 4 ; [ _ _ _ ] :
SOUNDER
1 Beep
3 Beeps
6 Beeps
2 Beeps
7 Beeps
10 Beeps
1 long, 5 short beeps
Long Beep
Sequence of 7 Beeps
Repeated 4 Times
2
Minimum Required Program Level
Program Levels are abbreviated as follows:
M = Master
4 = Installer
3 = Manager
2 = Supervisor
1 = Print Only Users
This Program Level abbreviation is the
minimum program level required to
access the particular Function. (The
higher the level, the more programming
tasks the User is allowed, with Master
allowing all tasks).
.
Programming Key Sequence
COMMENTS
Normal Operation
Remote release enabled through activa-
tion of relay
Re-enter User Code
When in Program Mode
When in Program Mode
Code exists in memory, but disabled
See page 11 before changing batteries
Non-fatal memory or clock error has been
detected. Under this condition,
unexpected operation is possible. Re-
move power and restart.
9
