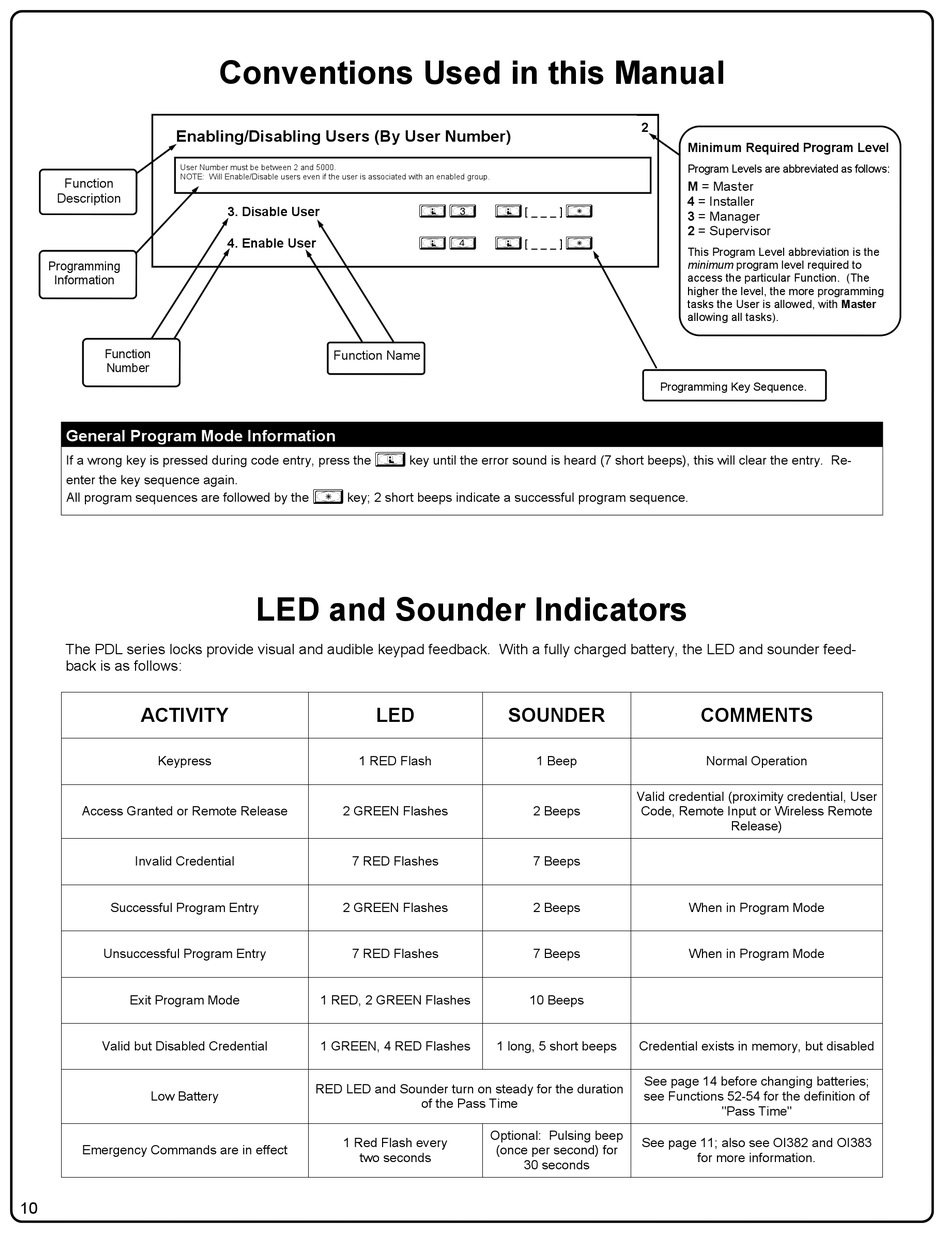

Conventions Used In This Manual; Led And Sounder Indicators - Alarm Lock Wireless Trilogy PDL6200 Programming Instructions Manual

Enabling/Disabling Users (By User Number)
User Number must be between 2 and 5000.
NOTE: Will Enable/Disable users even if the user is associated with an enabled group.
Function
Description
Programming
Information
Function
Number
General Program Mode Information
If a wrong key is pressed during code entry, press the ; key until the error sound is heard (7 short beeps), this will clear the entry. Re-
enter the key sequence again.
All program sequences are followed by the : key; 2 short beeps indicate a successful program sequence.
The PDL series locks provide visual and audible keypad feedback. With a fully charged battery, the LED and sounder feed-
back is as follows:
ACTIVITY
Keypress
Access Granted or Remote Release
Invalid Credential
Successful Program Entry
Unsuccessful Program Entry
Exit Program Mode
Valid but Disabled Credential
Low Battery
Emergency Commands are in effect
10

Conventions Used in this Manual

3. Disable User
4. Enable User
Function Name

LED and Sounder Indicators

LED
1 RED Flash
2 GREEN Flashes
7 RED Flashes
2 GREEN Flashes
7 RED Flashes
1 RED, 2 GREEN Flashes
1 GREEN, 4 RED Flashes
RED LED and Sounder turn on steady for the duration
1 Red Flash every
two seconds
; 3 ; [ _ _ _ ] :
; 4 ; [ _ _ _ ] :
SOUNDER
1 Beep
2 Beeps
7 Beeps
2 Beeps
7 Beeps
10 Beeps
1 long, 5 short beeps
of the Pass Time
Optional: Pulsing beep
(once per second) for
30 seconds
2
Minimum Required Program Level
Program Levels are abbreviated as follows:
M = Master
4 = Installer
3 = Manager
2 = Supervisor
This Program Level abbreviation is the
minimum program level required to
access the particular Function. (The
higher the level, the more programming
tasks the User is allowed, with Master
allowing all tasks).
.
Programming Key Sequence
COMMENTS
Normal Operation
Valid credential (proximity credential, User
Code, Remote Input or Wireless Remote
Release)
When in Program Mode
When in Program Mode
Credential exists in memory, but disabled
See page 14 before changing batteries;
see Functions 52-54 for the definition of
"Pass Time"
See page 11; also see OI382 and OI383
for more information.
