Alarm Lock LEVER CONNECTOR REPLACEMENT KIT Addendum Manual

345 Bayview Avenue
Amityville, New York 11701
For Sales and Repairs 1-800-ALA-LOCK
For Technical Service 1-800-645-9440
Publicly traded on NASDAQ Symbol: NSSC
© ALARM LOCK 2005
Use this replacement kit with only those cylindrical locks that meet all three of the following requirements:
•
Locks manufactured before August 20, 2005;
•

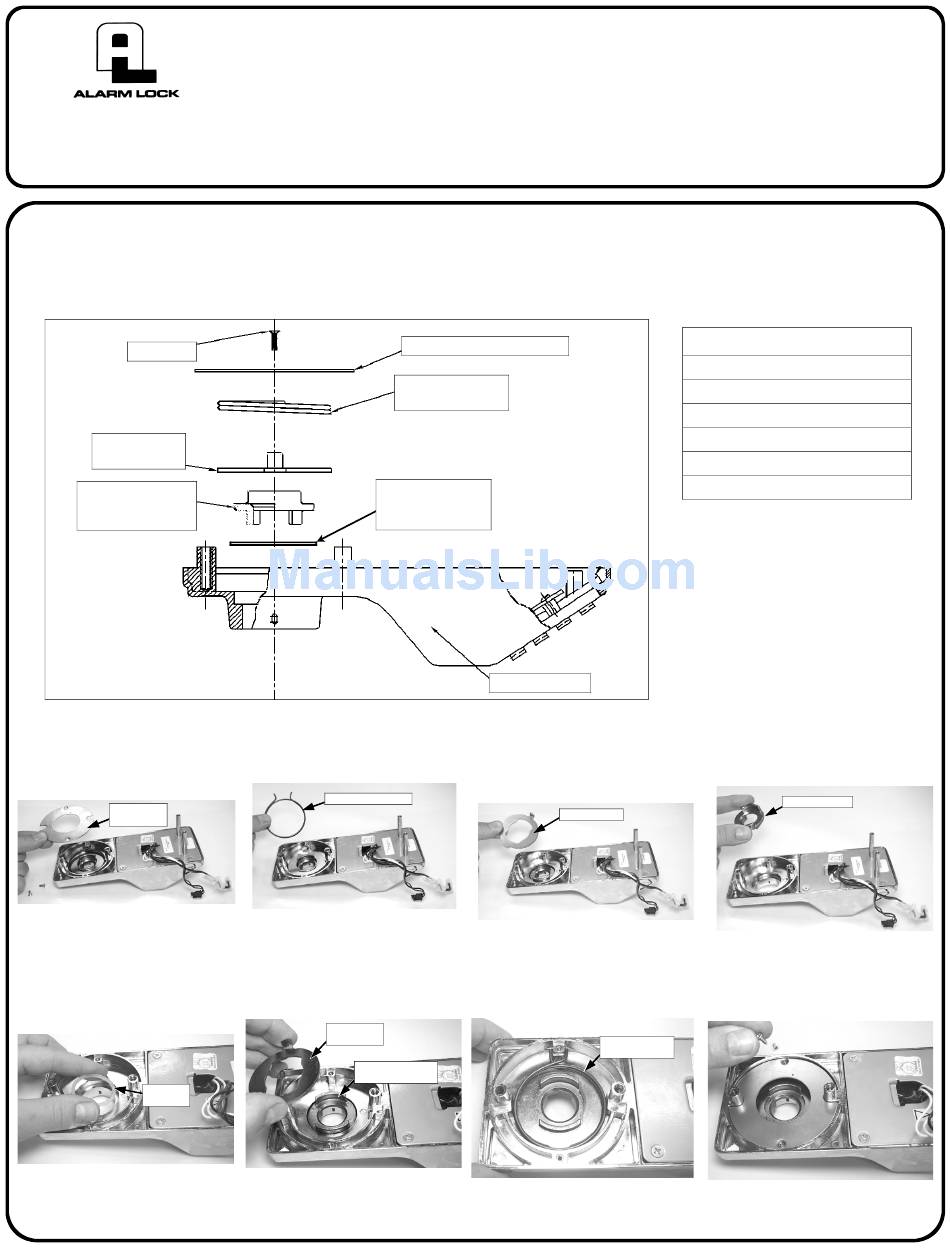

Locks that contain a Plastic Ring (HW573--see exploded diagram below);
•
Locks that exhibit a lever binding problem when installed on doors under 1 3/4" in thickness.
Screws (2)
Connector
Plate (HW570)
Lever Connector
Old (HW572D)
New (HW572E)

HOW TO REPLACE THE LEVER CONNECTOR (NEW PART HW572E)

Spring Cover
Plate
1. With housing removed from door,
unscrew two screws and remove
the Spring Cover Plate (HW565) as
shown.
Plastic Ring
(HW573)
5. Remove and discard Plastic Ring
(HW573).
LEVER CONNECTOR REPLACEMENT KIT
Spring Cover Plate (HW565)
Lever Handle
Spring (HW1220)
(To be removed)
Plastic Ring
(HW573)
Lever Handle Spring
2. Remove the Lever Handle
Spring (HW1220) and set aside.
Connector Plate
(HW570)
Replace Lever Connector
(HW572D)
6. Install new clear plating Lever
Connector (HW572E) in place of
old Connector (HW572D). Re-
install Connector Plate (HW570).
ADDENDUM
Outside Housing
Connector Plate
3. Remove Connector Plate (HW570).
Lever Handle Spring
(HW1220)
7. Install Lever Handle Spring
(HW1220).
WI1454 8/05

APPLICABLE MODELS

DL2700
DL3000
PDL3000
DL4100
PDL4100
DL2800
Lever Connector
4. Remove Lever Connector (HW572D)
and discard.
8. Replace the Spring Cover Plate
(HW565) and secure with two screws.
