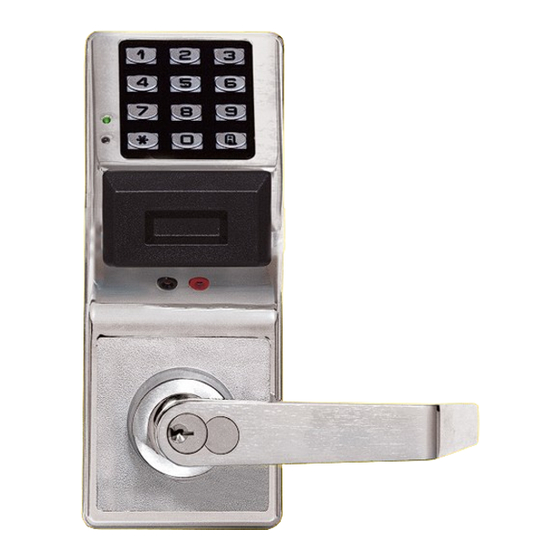

Trilogy: PDL3000
Trilogy prox locks with audit
trail capabilities
Prox reader capabilities with Trilogy dura-
bility for indoor and outdoor applications
Rugged clutch mechanism and Grade 1 durability ensure long life
500 scheduled events, including 4 quick schedules for programming the 4 most
common time schedules in one step
2000 user codes including: Master, manager, supervisor and basic user. Users are
individually programmed to use a card only, code only, or for the highest security,
both card and code. (3-6 digits) and/or accepts HID prox cards and keyfobs.
Weatherproof performance, operational temperature range of -31°F to +151°F
(-35°C to +66°C)
Entry allowance from 3-15 seconds
Greater security with temporary keypad lockout after 6 unsuccessful code-
entry attempts
Up to 40,000 event audit trail with time/date stamp for a printable record of
door access activity by user
Real time clock allows logging of events to within 1 second of accuracy
Programmable relays energize when one or more selected events occur
Easy to install in about an hour retrofits most cylindrical locksets and digital locks
Battery operated; uses 5 AA batteries; 60,000 cycles, typical.
Available in standard key override and interchangeable core models accepting
6 or 7 pin cores from Arrow, Best, Falcon or KSP. Other IC core preps available.
Available in standard Trilogy leverset (straight) or with regal (curved) lever
Available in six finishes; polished brass (US3), satin brass (US4), antique brass
(US5), polished chrome (US26), satin chrome (US26D), duronodic (US 10B).
Tap & add batch ID; card enrollment mode allows many cards to be quickly
added without PC - also downloadable from PC or enroller tool
New! PDL3000K
PDL3000K model logs mechanical key override use and has an interchangeable
core prep
hospitals
schools
airports
retail
pharmacies
offices

Advertisement

loading
Need help?

Need help?

Do you have a question about the PDL3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alarm Lock PDL3000

  • Page 1 Trilogy: PDL3000 hospitals schools airports retail pharmacies offices Trilogy prox locks with audit trail capabilities Prox reader capabilities with Trilogy dura- bility for indoor and outdoor applications • Rugged clutch mechanism and Grade 1 durability ensure long life • 500 scheduled events, including 4 quick schedules for programming the 4 most common time schedules in one step 2000 user codes including: Master, manager, supervisor and basic user.
  • Page 2 -R = Sargent Best, Falcon, Arrow, KSP ® 1-800-ALA-LOCK • Fax 631-789-3383 -C = Corbin/Russwin (Note: No “IC” indicates standard K.O. cylinder.) www.alarmlock.com -S = Schlage Trilogy is a trademark of Alarm Lock. © NAPCO 6/2005 Patents and Patents Pending ALA167a...
