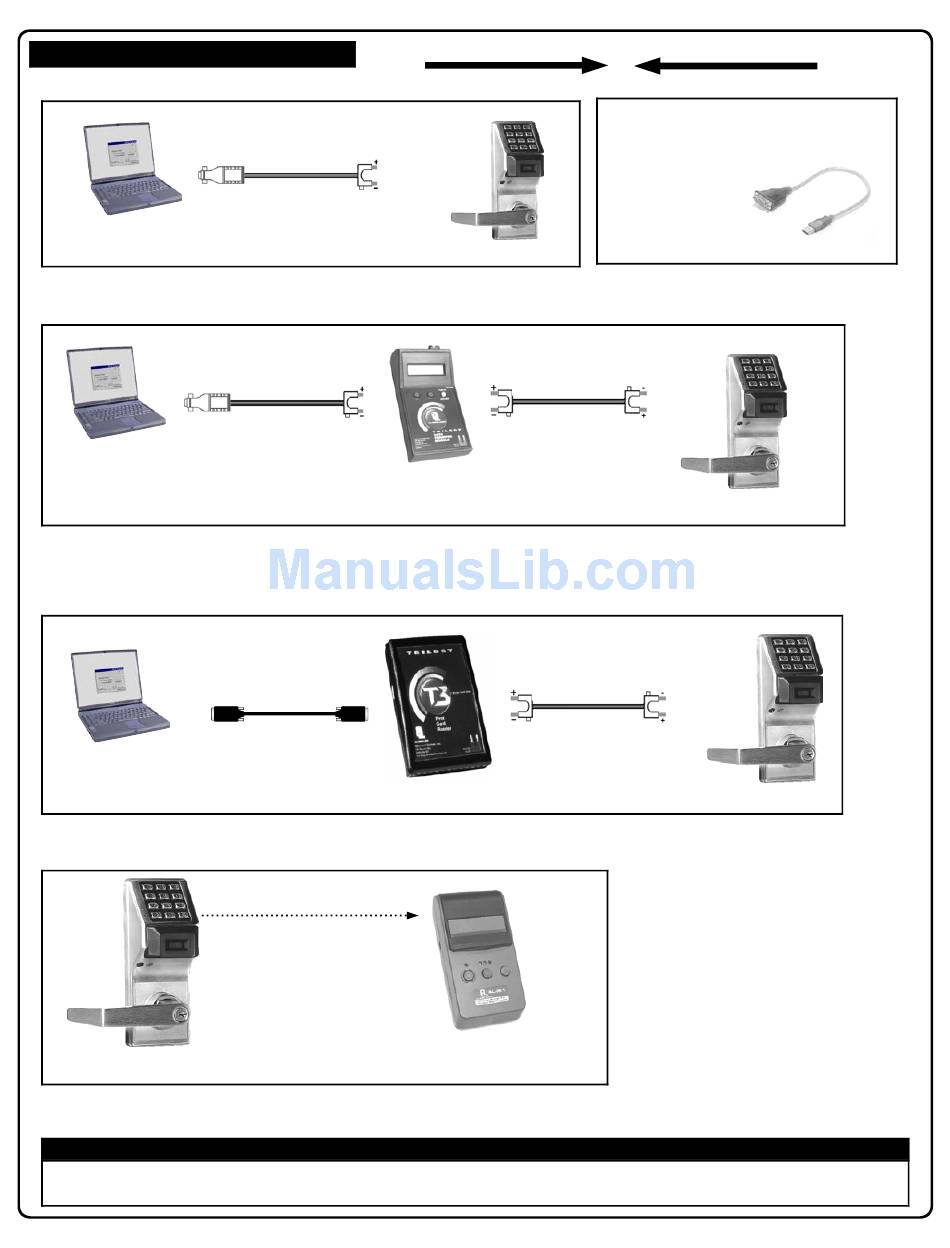

Product Communication Examples

IBM COMPATABLE
LAPTOP OR DESKTOP PC
Scenario 1 Create the program in DL-Windows on your computer, then transfer the program from the computer directly to the lock via an
AL-PCI cable. You must always enter the User 298 User Code to send or receive data Using DL-Windows.
IBM COMPATABLE
LAPTOP OR DESKTOP PC
Scenario 2 Create the program in DL-Windows and transfer the program from your computer to an AL-DTM (via an AL-PCI cable)...
then transfer the program from the AL-DTM to the lock(s) (via a double-ended mini banana plug). The hand-held AL-DTM is useful
because you do not have to transport (or find electricity for) your computer. Data can also flow in reverse, from the lock, through
the AL-DTM, back to the computer for examination.
CONNECT DB9 CABLE
TO COMPUTER SERIAL
PORT (COM 1-4)
IBM COMPATABLE
LAPTOP OR DESKTOP PC
Scenario 3 Enroll ProxCards
to the lock (thus avoiding the need to use an AL-PCI cable). For PDL series locks only.
PDL3000 LOCK
Scenario 4 Use the AL-IR1 Infrared printer to print your lock's audit trail (event log), User Code list, clock settings and software
version. No cable required.
NOTE:
The AL-PCI cable is designed to be used on a 9 pin serial COM port. If your computer has a 25 pin COM port, a 25 pin to 9 pin adapter must be used.
Warning: Polarity MUST be observed when connecting cables to the lock. The tab (-) must plug into the negative (black) hole.
10
AL-PCI CABLE
CONNECT TO SERIAL PORT
(COM 1-4)
NOTE: OBSERVE TAB DIRECTION WHEN
INSERTING CABLE INTO LOCK
AL-PCI CABLE
CONNECT TO SERIAL PORT
(COM 1-4)
NOTE: OBSERVE TAB DIRECTION WHEN
INSERTING CABLE INTO LOCK
DB9 to DB9 Serial
Cable (supplied)
AL-PRE PROXCARD READER/
®
quickly into DL-Windows, then transfer this new ProxCard
Send to lock
PDL3000 LOCK
DOUBLE-ENDED MINI BANANA
PLUG CONNECTOR
NOTE: OBSERVE TAB DIREC-
TION WHEN INSERTING CABLE
INTO AL-DTM AND LOCK
AL-DTM DATA
TRANSFER
MODULE
DOUBLE-ENDED MINI BANANA
PLUG CONNECTOR
NOTE: OBSERVE TAB DIREC-
TION WHEN INSERTING CABLE
INTO AL-PRE AND LOCK
ENROLLER
®
data from the computer through the AL-PRE
AL-IR1
INFRARED PRINTER
Receive from lock
If your computer does not have a serial COM port
(DB-9 male) available, you can plug your AL-PCI2
cable into a special USB to RS-232 cable. Order
part PCI-USB for the
USB to RS-232 cable
only, or ALPCI2-U for
both the USB to RS-232
cable and an AL-PCI2
cable).
PDL3000 LOCK
PDL3000 LOCK
