Alarm Lock LEVER SPRING REPLACEMENT KIT Addendum Manual

345 Bayview Avenue
Amityville, New York 11701
For Sales and Repairs 1-800-ALA-LOCK
For Technical Service 1-800-645-9440
Publicly traded on NASDAQ Symbol: NSSC
© ALARM LOCK 2006
Screws (2)
Connector
Plate (HW570)
Lever Connector
(HW572)

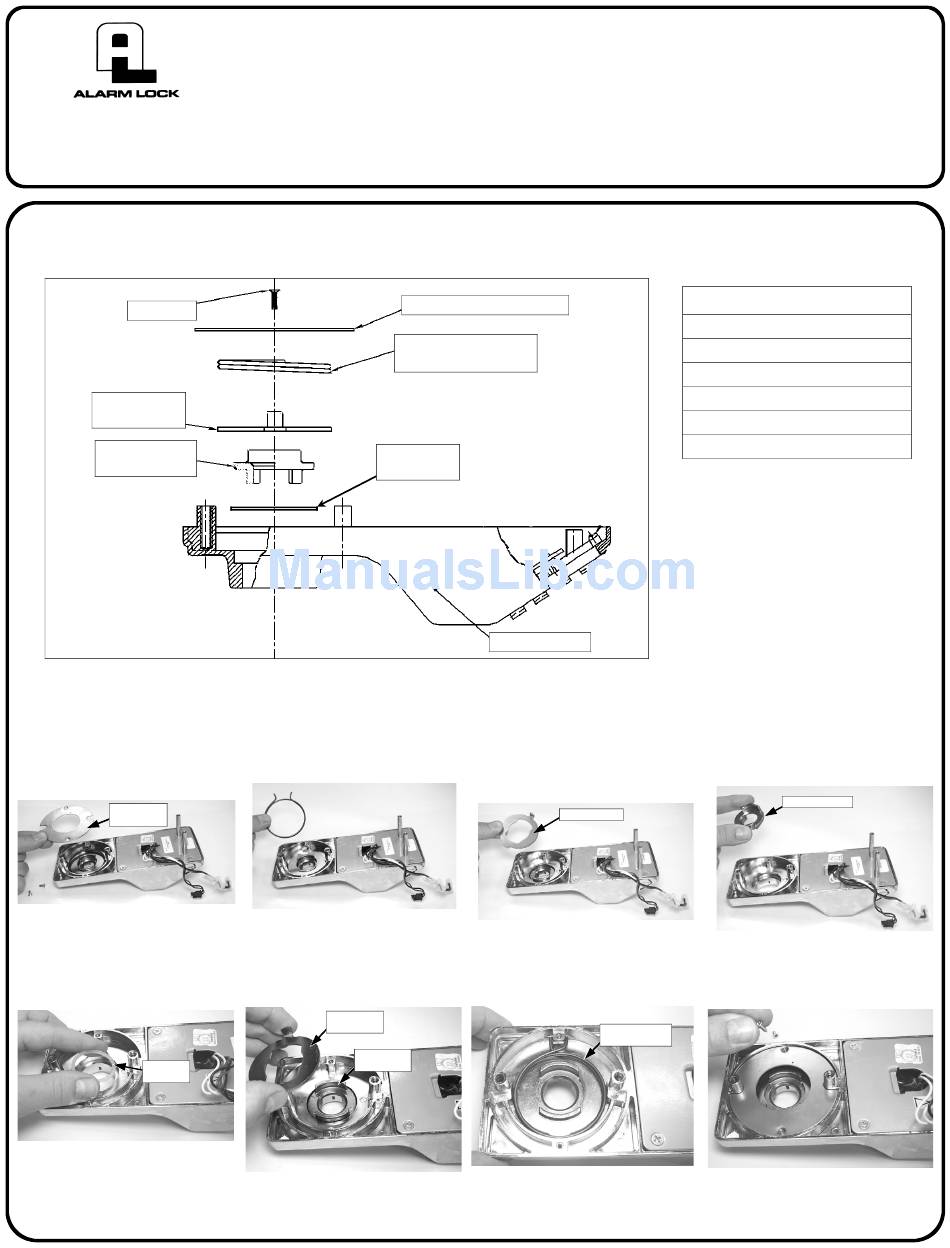

HOW TO REPLACE THE LEVER SPRING (PART HW1220)
Spring Cover
Plate
1. With outside housing removed
from door, unscrew two screws
and remove the Spring Cover Plate
(HW565) as shown.
Plastic Ring
(HW573)
5. If Lever Connector has a gold finish,
insert Plastic Ring (HW573). If
Lever Connector has a silver
finish, DO NOT insert Plastic
Ring.
LEVER SPRING REPLACEMENT KIT
Spring Cover Plate (HW565)
Lever Handle Spring
Plastic Ring
(HW573)
2. Remove the broken Lever Han-
dle Spring (HW1220).
Connector Plate
(HW570)
Lever Connector
(HW572)
6. Replace Lever Connector (HW572)
and Connector Plate (HW570).
ADDENDUM
(HW1220)
Outside Housing
Connector Plate
3. Remove Connector Plate (HW570).
Lever Handle Spring
(HW1220)
7. Install new Lever Handle Spring
(HW1220) in place of broken spring.
WI1368B 2/06
APPLICABLE MODELS
DL2700
DL3000
PDL3000
DL4100
PDL4100
DL2800
Lever Connector
4. Remove Lever Connector (HW572).
Make note of the Lever Connector
finish--either gold or silver.
8. Replace the Spring Cover Plate
(HW565) and secure with two screws.
