Installing a Hot Swap Hard Drive

Note: The following set of instructions is only applicable if you have replaced the fixed hard
drive cage that shipped with your chassis with an optional hot swap SCSI or SAS/SATA
hard drive cage. If you are replacing a fixed hard drive, see
Drive" for instructions.
Note: The Intel
"Additional Information and
drives.
1. Open the drive bay access door.
Intel® Entry Server Chassis SC5299-E UP/DP/WS/BRP User Guide
Hot Swap Drive Cage Upgrade Install Instructions (optional)
®
Entry Server Chassis SC5299-E does not support all hard drives. See
Software"for an Internet link to a list of supported hard

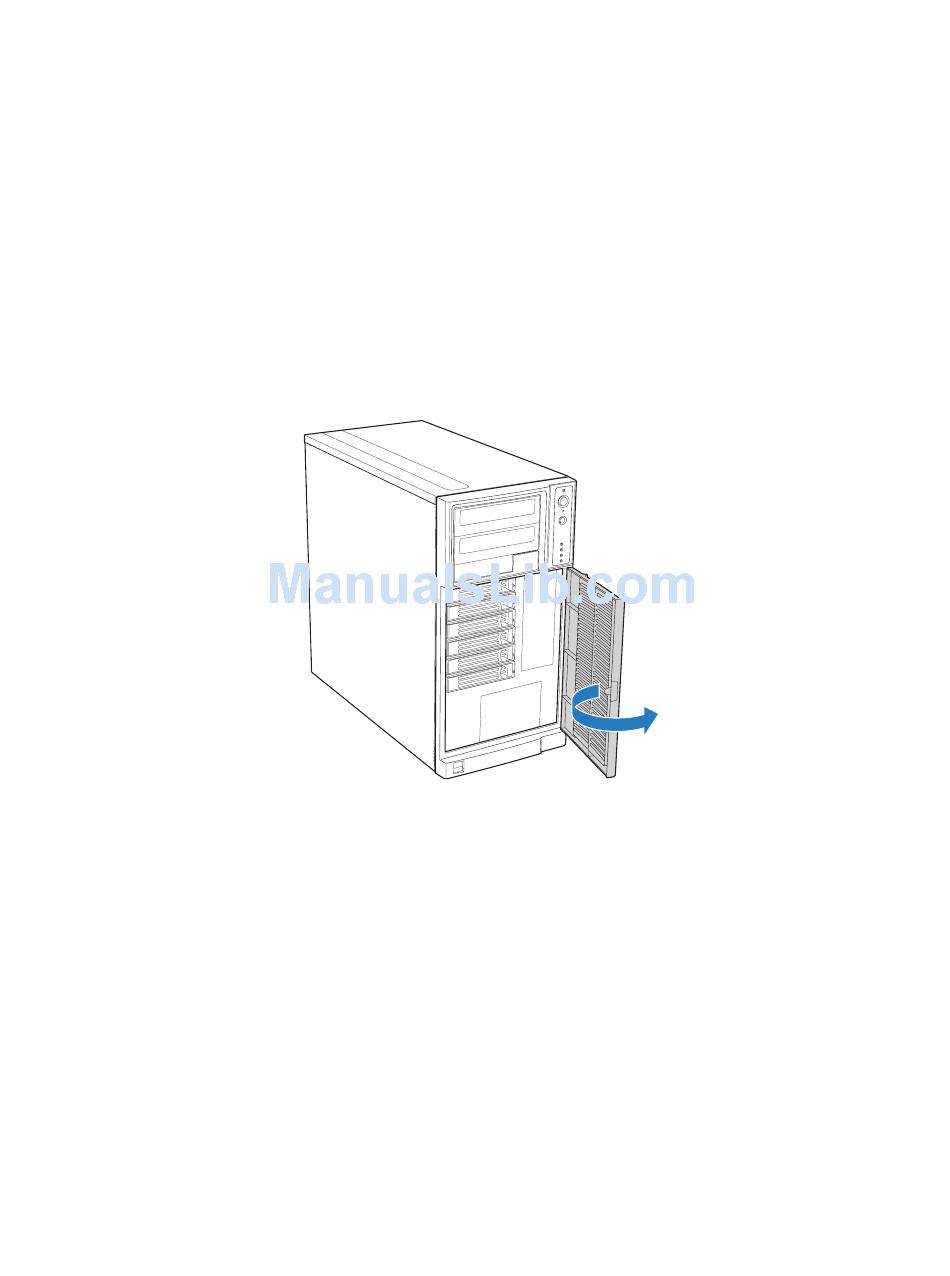

Figure 90. Opening Drive Bay Access Door

"Removing a Fixed Hard
AF000311
73
