How to Position the PDU
Count the receptacles needed for each unit in the rack, notice where the PDUs can
be most conveniently located, and decide whether to orient the PDU vertically or
horizontally.
Horizontal Mounting
of Two PDUs in
a Fully Utilized
Rack
Cable Guides
Mounted on the
Column
Opposite
the Door
Hinges
Examples of
Data Cable
Routes from
Server to
Connectors on
Other
Components

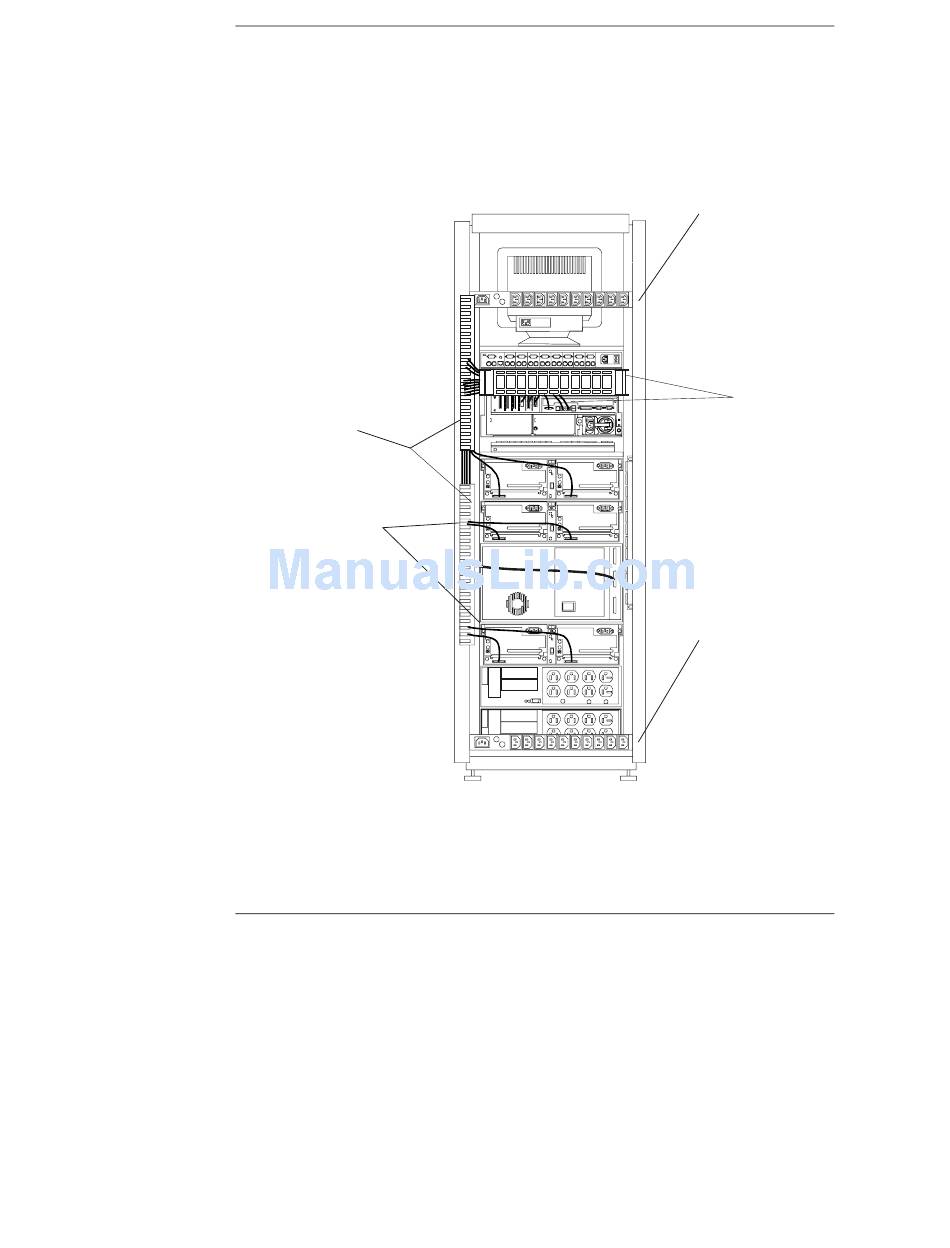

Figure 2-2. Mounting a Pair of PDUs Horizontally (Rear View)
22
Rack Cabling References
100 - 120 VAC Wide-
Range 16-Amp,
Power Distribution
Unit, Installed
Horizontally
Behind the Monitor
Data Cables
Routed
through
Cable
Management
Arm
100 - 120 VAC Wide-
Range 16-Amp
PDU Mounted
Horizontally
Behind the
Uninterruptible
Power Supply
