Chapter 2
Power Distribution Unit Types
100/120 VAC, 16-Amp,
Order as E7675A
(Not used with
200/240 VAC models)
The 200/240 VAC, wide-range Power Distribution Unit (PDU) can be mounted in
several configurations with the LC 2000r. One of these configurations is shown in
Figure 2-2. Others are listed and illustrated throughout Chapter 3.
200/240 VAC Wide Range,
10-Amp together
with 16-Amp and
Jumper Cord
Available as
E7672A

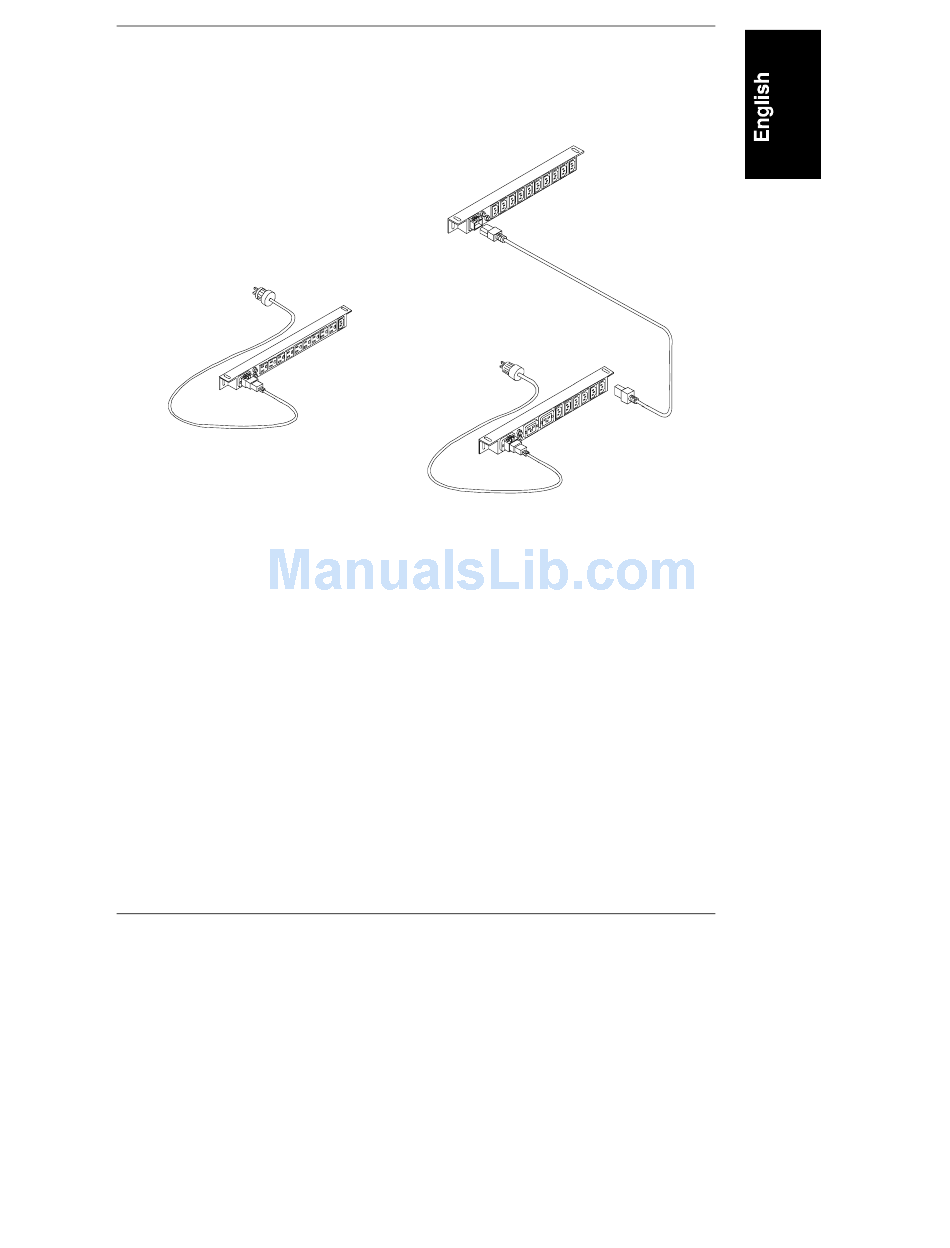

Figure 2-1. PDU Configurations
Rack Cabling References
200/240 VAC,
16-Amp, Wide Range,
Order Standalone as
E7671A, Power Cord
Separately Orderable
21
