SCSI Channels
NOTE
SCSI Addresses
The SCSI ID assigned to a hard drive is determined by its position in the drive cage. The SAF-TE chassis
management processor is assigned SCSI ID 5. The default SCSI IDs are assigned to the 8 half–height drives
and 12 low–profile drives.
Rear View
NOTE
96

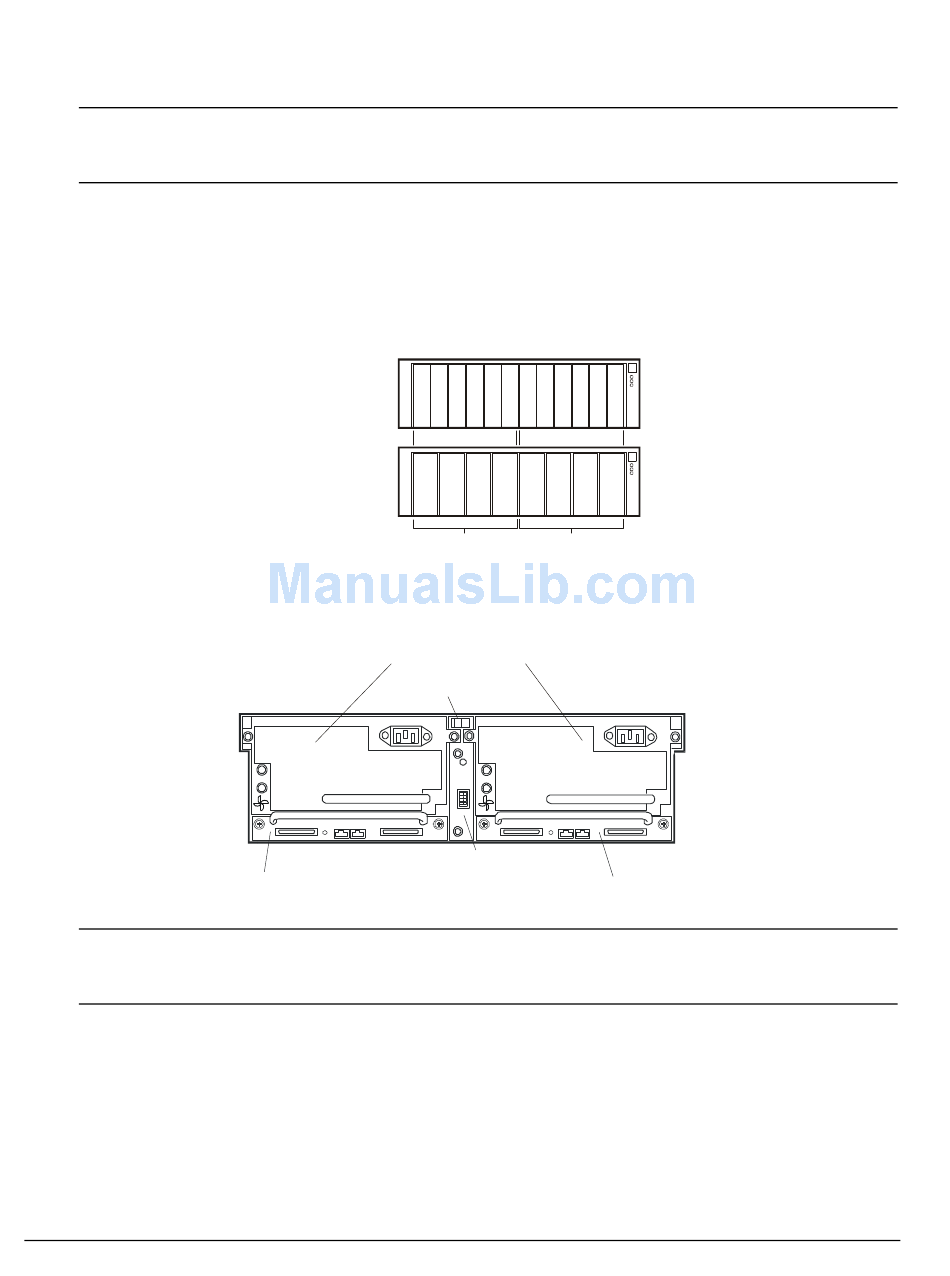

Each FCArray Controller card has 4 SCSI channels:
• 2 internal SCSI buses (channels 0, 1)
•2 external SCSI buses (channels 2, 3)
Low-Profile
Drives
Half-Height
Drives
Power Supplies
PW R
Management Board
FCArray Card 2
To fully remove power, disconnect both AC power cords from the rear of the chassis.
The HP Rack Storage/12FC has 5 VDC standby power, even when the power switch
is set to OFF.
0
1 2 3 8 91011 12131415
0
1
3
8
10 11 13 14
Channel 0
Channel 1
Power Switch
PW R
FCArray Card 1
