Rear Panel

The hp Integrity rx1620 Server rear panel includes communication ports, I/O ports, AC power connector, and
the locator LED/button.

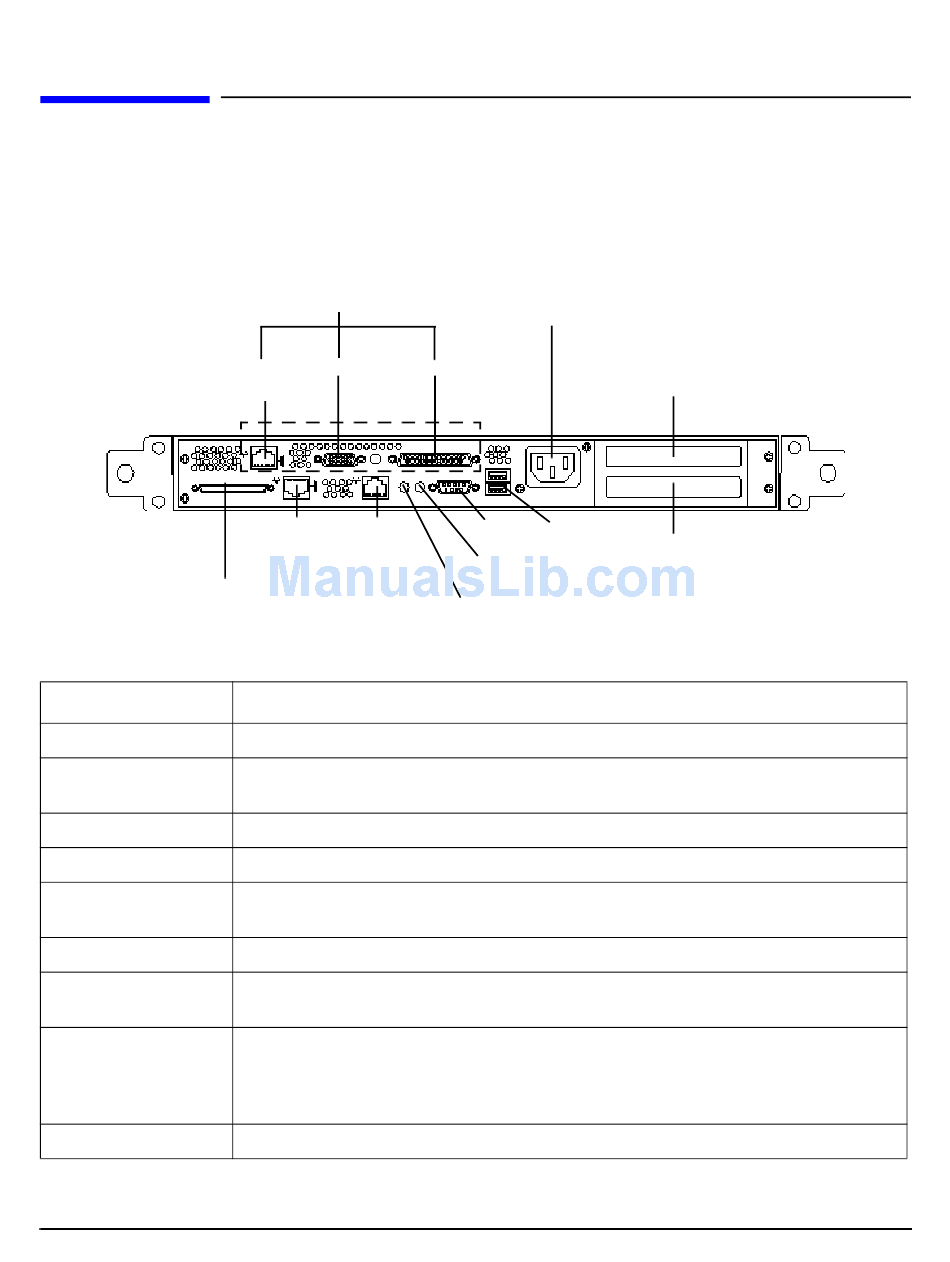

Figure 2-5 Rear View
10/100
LAN C
LVD/SE SCSI
Table 2-4 Rear Panel Connectors and Switches
Connector/Switch
AC Power
LVD/SE SCSI
10/100/1000 LAN A
10/100/1000 LAN B
Serial
USB
ToC
Locator Button and
LED
Video (optional)
Chapter 2
Optional
Management Board
Connectors
Video
Serial
10/100/1000 10/100/1000
LAN A 1Gb LAN B 1Gb
Primary power connection for the server
68-pin, low-voltage differential, single-ended U320 SCSI. This connector provides
external SCSI connection on SCSI Channel B.
10/100/1000 base-T ethernet LAN A 1Gb connector
10/100/1000 base-T ethernet LAN B 1Gb connector
9-pin male serial connector — this is the console connector if the optional
management processor card is not installed.
Two Universal Serial Bus (USB 2.0) connectors
Transfer of Control button. Halts all system processing and I/O activity and
restarts the computer system.
The locator button and LED are used to help locate a server within a rack of
servers. When the button is engaged, the blue LED illuminates and an additional
blue LED on the front panel of the server illuminates. This function may be
remotely activated.
15-pin female video connector for the optional management processor card
AC Power
Receptacle
PCI Slot 1
USB
Serial
PCI Slot 2
ToC
Locator Button
and LED
Function
Controls, Ports and Indicators
Rear Panel
