  • Page 1: Hp Netserver Lpr

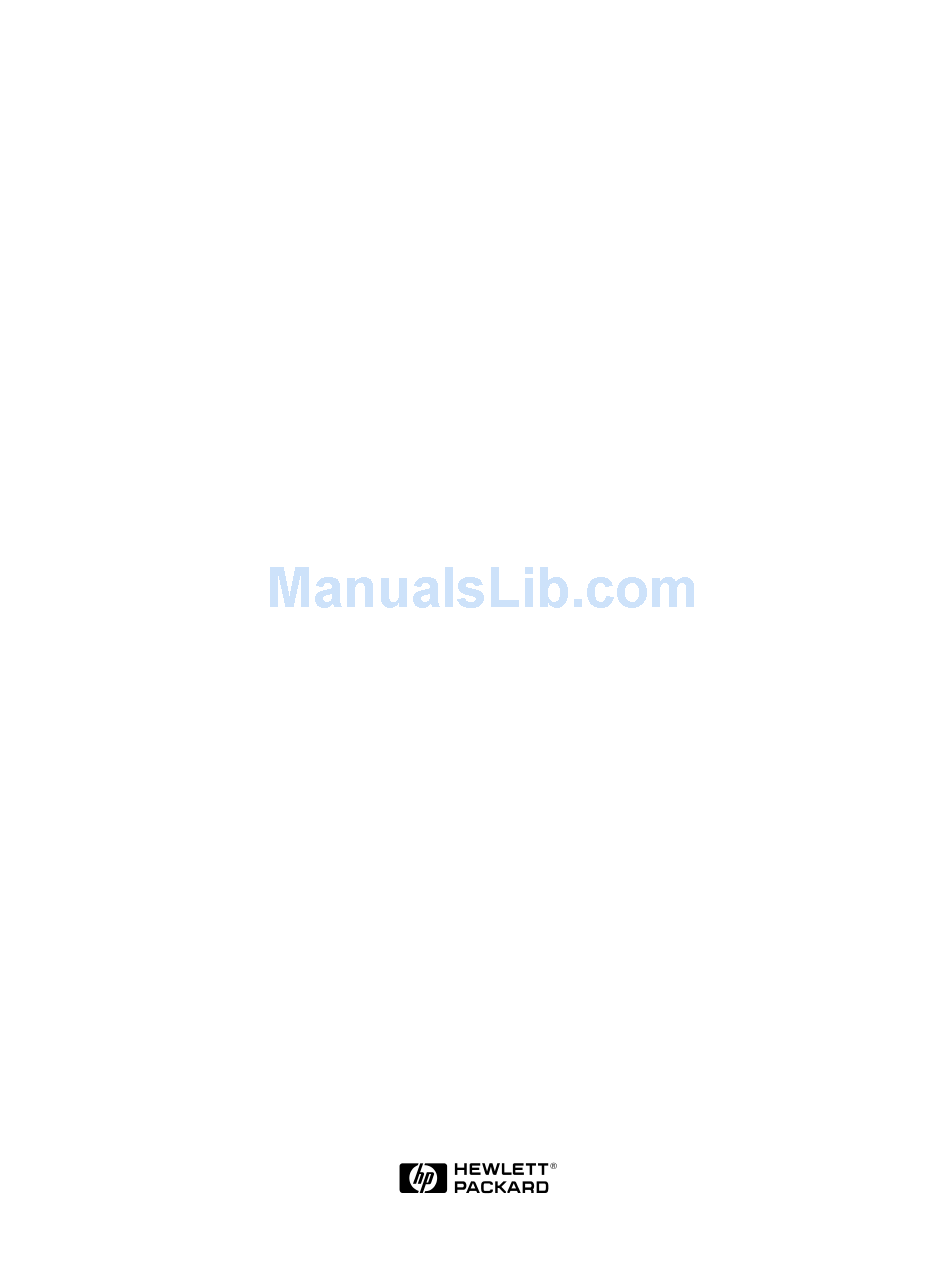

    HP NetServer LPr Quick Service Reference Guide Last Updated: April 1999...

  • Page 2: Table Of Contents

    Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not furnished by Hewlett-Packard.

  • Page 3: Hp Netserver Lpr System Information, Front Panel Controls

    HP NetServer LPr System Information Front Panel Controls CD-ROM Drive Drive Activity LED Reset Switch Power ON/OFF Drive Error Drive Activity Power ON/OFF LED Switch Drive Error LED Power On/Off Switch Fan Failure LED Hot Swap Drive Shelf Over-temperature LED SCSI ID #0 Power ON/OFF Over-temperature...

  • Page 4: Rear Panel Controls, Ports, And Indicators, Removing The Covers

    Rear Panel Controls, Ports, and Indicators PCI slot 3 Network (PCI slot 4) PCI slot 2 Link LED PCI slot 1 Activitity LED Power Inlet 100 mbps LED Management Port Serial Mouse Port B Ultra SCSI Keyboard Serial Port A Parallel Monitor Port...

  • Page 5: Memory

    Memory The NetServer LPr's main memory is implemented with 5V SDRAM DIMMs (Dual In-Line Memory Modules). The NetServer LPr ships with at least 64 MB of main memory and supports up to 1 GB. Memory is available in the following DIMM capacities: 64, 128, and 256 MB.

  • Page 6: Boot Device Priority, Hot-swap Drive Bay Addresses, Accessory Boards

    Boot Device Priority By default, the HP NetServer searches for bootable devices in the order shown below. CD-ROM Drive Floppy Disk Drive Embedded SCSI Controller, starting with SCSI ID 0 PCI Slots in the order 3, 2, and 1 On each controller, the server scans for a boot device starting at device ID 0 and works up from there. The controller is always SCSI ID 7.

  • Page 7

    Remote Control Card Refer to the Top Tools Administration Guide for Remote Control along with the upgrade kit documentation for information on the remote control card. Route cable through open spaces to PCI area. DO NOT route the cable over the top of sheet metal walls.

  • Page 8: Processor Module

    I/O Board Terminator Block Embedded SCSI Connector SCSI Cable Connector Processor Module NOTE Be sure that the VRM and the processor module associated with it are both in primary or secondary slots. Secondary Processor VRM Slot CPU Processor Secondary Processor Switch 350 MHz 400 MHz...

  • Page 9: Exploded Views

    Exploded Views...

  • Page 10: Replaceable Parts List

    Replaceable Parts List * This part is not on an exploded view. Description Replacement Exchange Top Cover 5064-7036 I/O ("Riser") Board D6129-63000 D6129-69000 Fan pack 5064-5858 SCSI backplane D6021-63030 SCSI management board D6021-63031 Hot-swappable SCSI drive orderable as accessories Hot-swappable drive kit Hot-swap bay filler panel (not orderable) Floppy disk drive...

  • Page 11: Cables, System Board Illustration

    Battery 5183-6570 Video memory 1818-6527 Network adapter card (NIC) D5013-63001 Rear panel (not orderable) SCSI repeater card D6129-63006 PCI stabilizer (not orderable) PCI access door (not orderable) Power supply D6129-63003 D6129-69003 Bezel kit (HP pictured) D6130-60002 Bezel kit, 3rd party D6130-60003 System board D6129-63001...

  • Page 12: Specifications

    System Switches System Switches Default Settings CPU Frequency (MHz) Must Be OFF (7 & 8) On = Clear Password (6) On = Clear Config (5) Specifications Temperature Operating 5 to 35 C (41 to 95 F) Non-operating -40° to +65° C (-40° to +149° F) Humidity (non-condensing) Operating 20% to 80% relative humidity, non-condensing...

  • Page 13: Notes

    Notes:...
