HP NetServer E 40
System Views

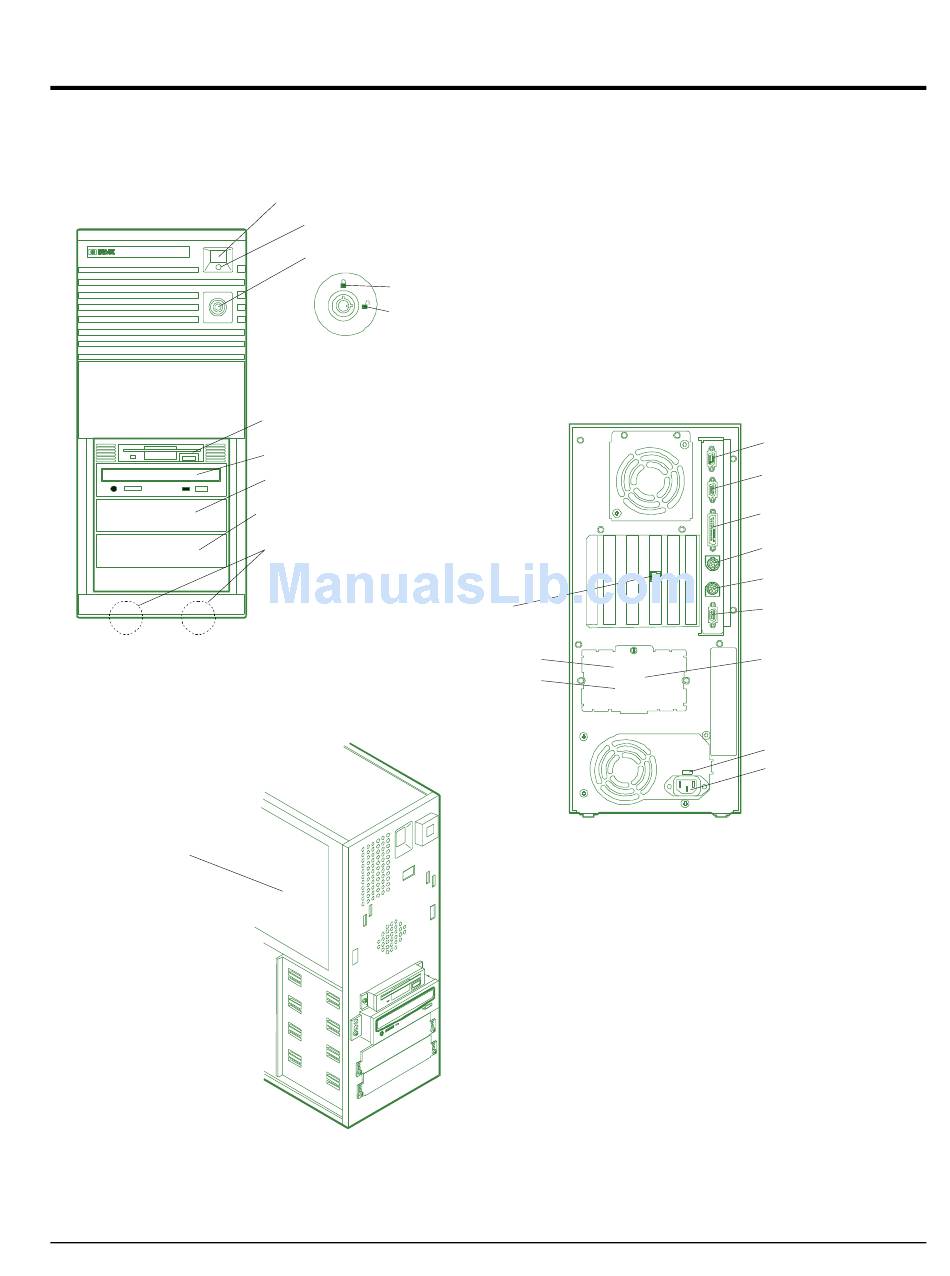

Front
Technical
Information
Label
Power Switch
Power and
Disk Drive Activity
Front Panel Key
Locked position
Unlocked position
Shelf 1 (Flexible disk drive)
Shelf 2 (CD-ROM Drive)
Shelf 3 (mass storage tray)
Shelf 4 (mass storage tray provided)
Factory seals (located on bottom of chassis)
Shelf 5 (behind cover)
Shelf 6 (behind cover)
Front View
Network
Serial B
Serial A
Parallel Port
Mouse
Keyboard
Monitor
Mass storage cover
Line voltage switch
Power connector
39
