HP NetServer Rack Storage/12 FC Information

System Views

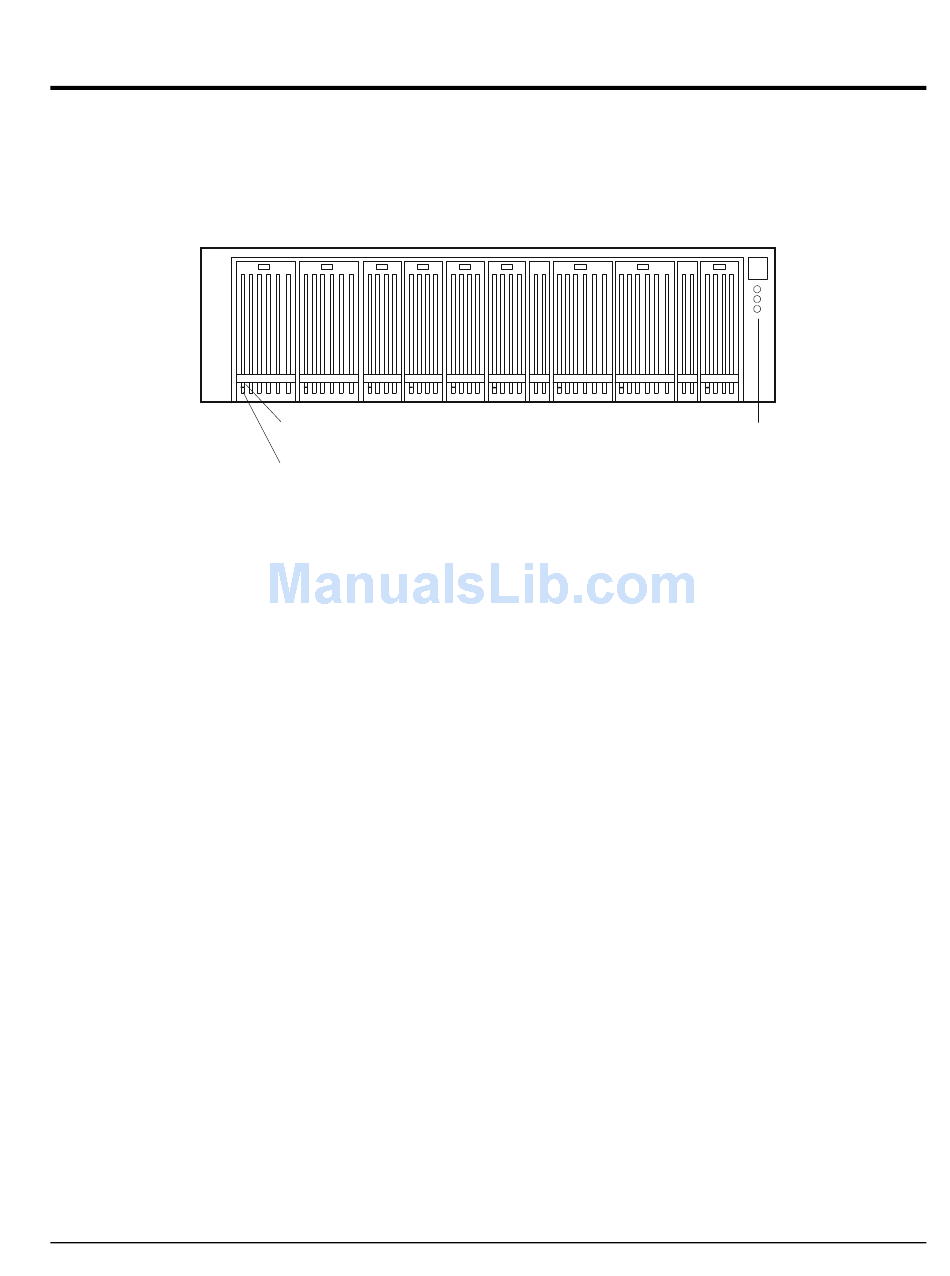

Front View

Chassis Status LEDs
Green: Normal operation.
Flashing Yellow: Warning condition exists in the chassis. Attention is required. Check the
operating status of components on the front and rear panels.
Flashing Red: Fault condition exists in the chassis. Immediate attention is required. Check the
operating status of all components on the front and rear panels.
Off: No power.
Hard Drive Status Indicators
The drive power indicator displays the following conditions:
Off: Hard drive not present, or not connected to the cage.
Green (solid): Hard drive present.
Drive Activity Indicator
The drive activity indicator displays the following conditions:
Off: No disk activity.
Flickering Green: Accessing disk.
Flashing Yellow: Disk failure predicted.
Red: Disk fault, or drive is offline.
Drive Power Indicator
Drive Activity Indicator
Front Panel Indicators
Chassis Status LEDs
