f.
9.
Connect the LCS pump cable to the system board as shown in the following figure.
Figure 5-61
122 Chapter 5 Replacing components

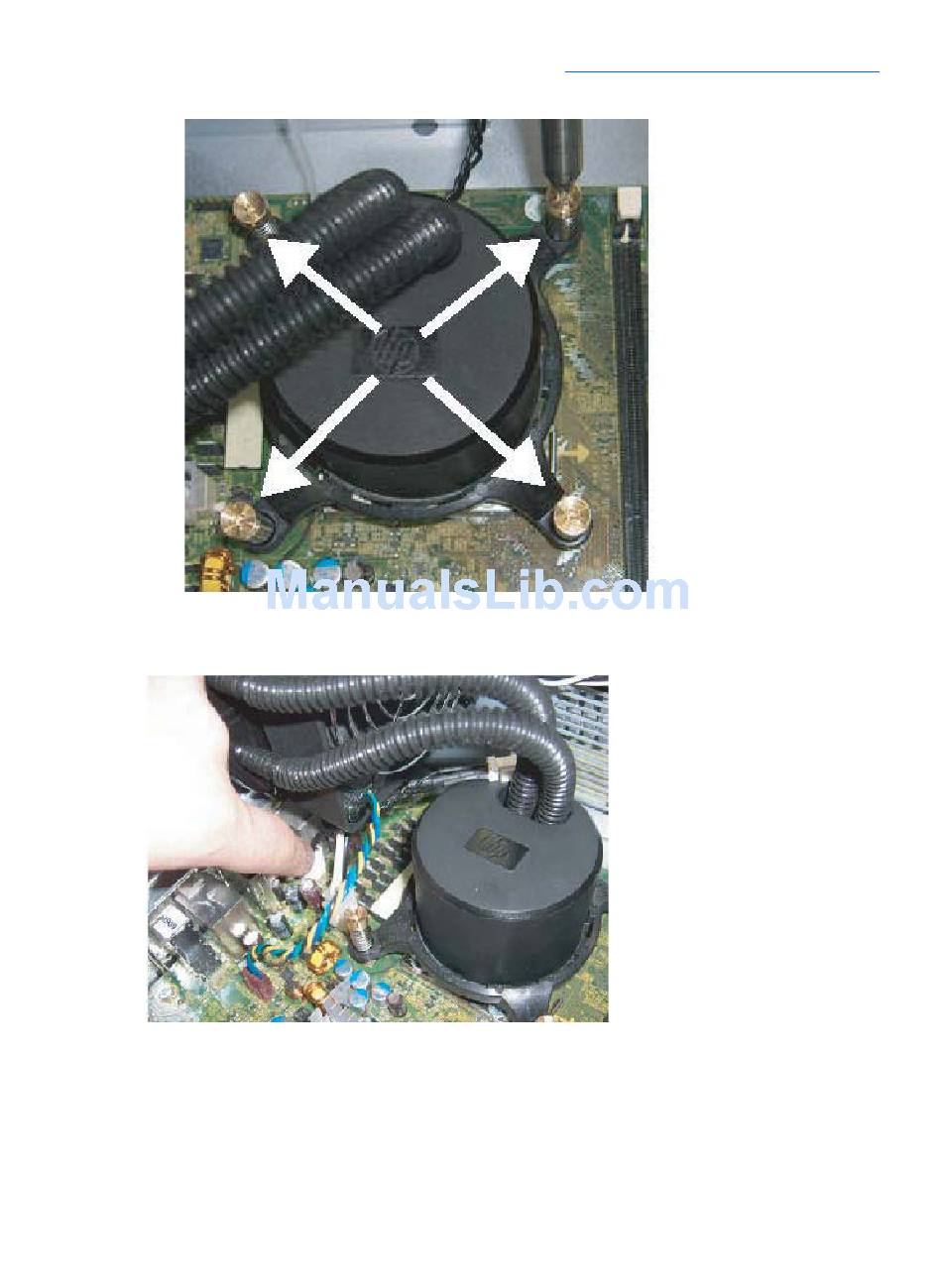

Tighten the four cold plate retention screws (see
Figure 5-60
Tightening the cold plate screws
Connecting the LCS pump cable
Installing the CPU heatsink on page
128).
ENWW
