6. Align the DIMM connector key with the DIMM socket key, and then seat the DIMM firmly in the
socket
CAUTION:
damage, align these guides properly when installing DIMMs.

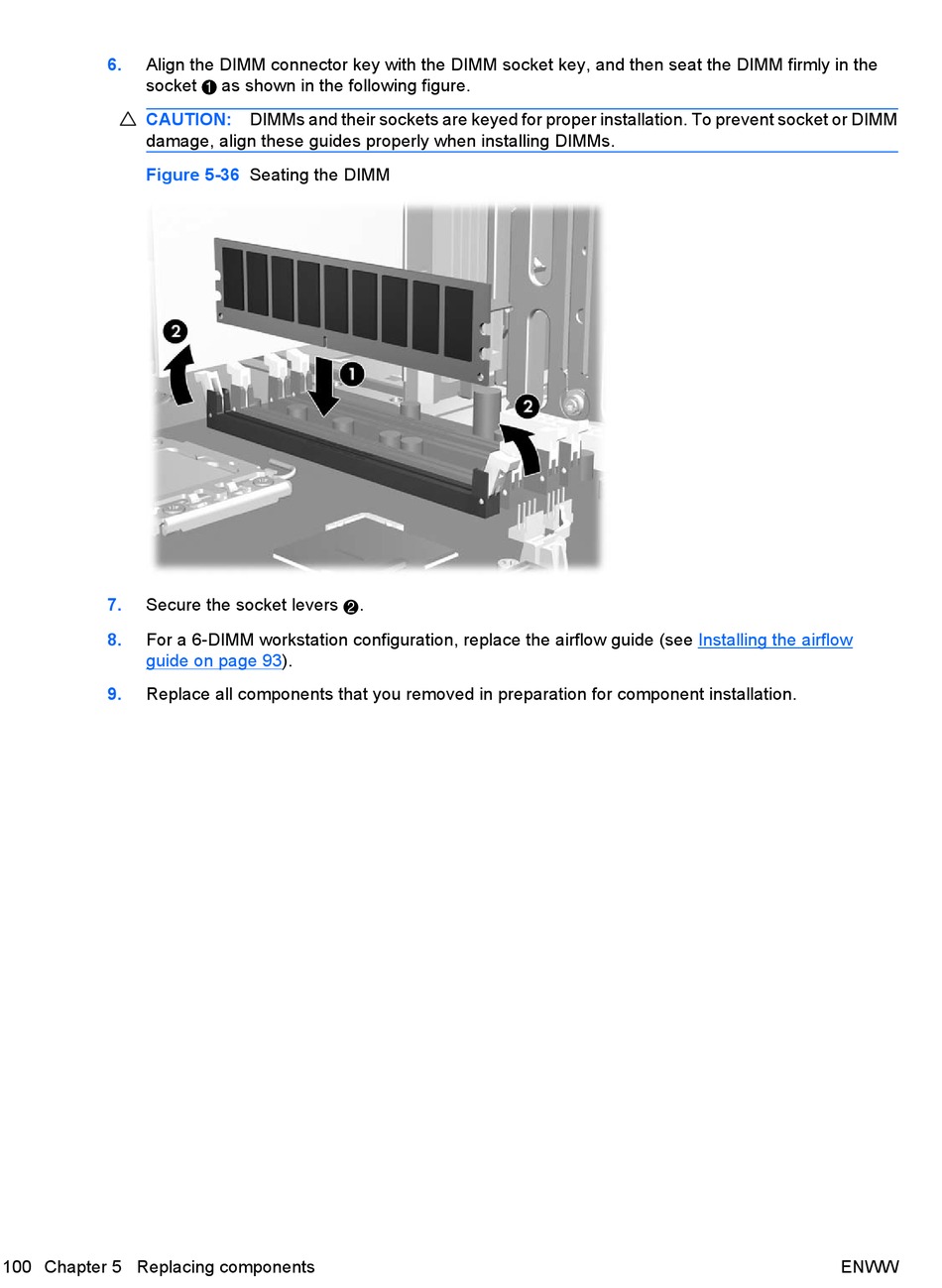

Figure 5-36
7. Secure the socket levers
8. For a 6-DIMM workstation configuration, replace the airflow guide (see
guide on page
9. Replace all components that you removed in preparation for component installation.
100 Chapter 5 Replacing components
as shown in the following figure.
DIMMs and their sockets are keyed for proper installation. To prevent socket or DIMM
Seating the DIMM
.
2
93).
Installing the airflow
