c.

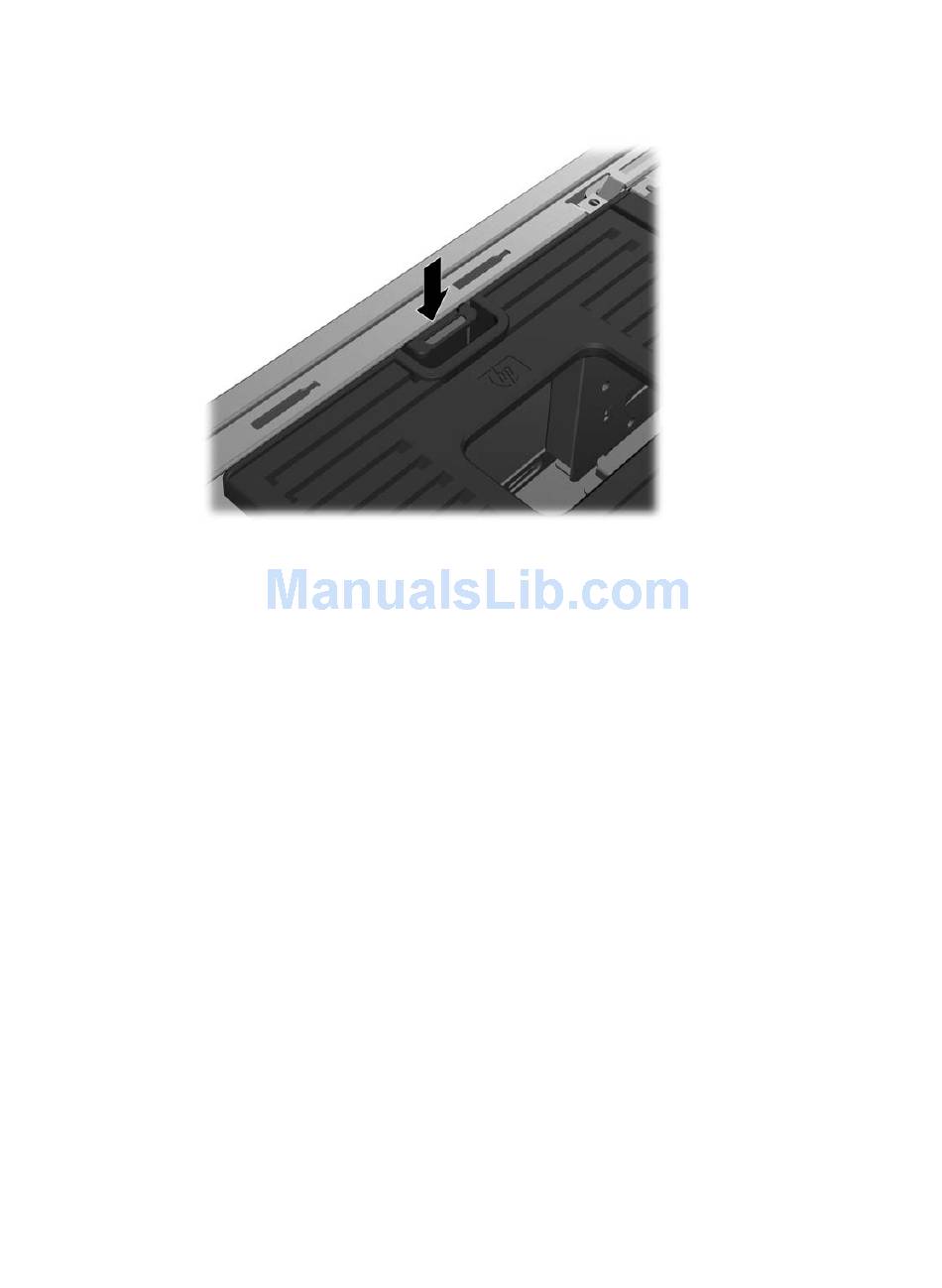

Ensure that the latch on the top of the airflow guide snaps under the edge of the chassis frame
as shown in the following figure.
Figure 5-31
8.
Replace all components that were removed in preparation for component installation.
ENWW
Securing the airflow guide latch
Removing and installing components
95
