Technical Reference

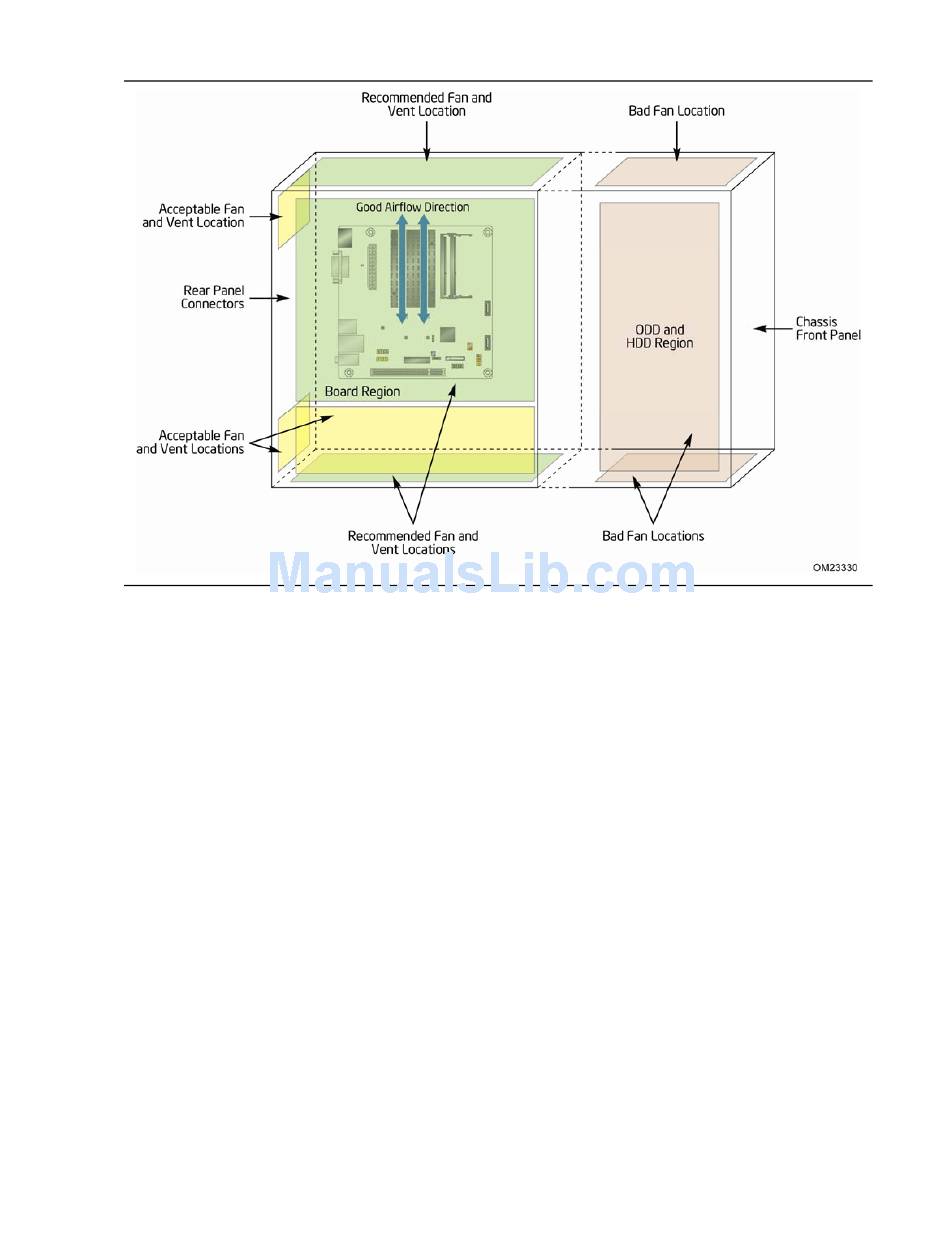

Figure 18. Fan Location Guide for Chassis Selection
(Chassis Orientation is Not Restricted)
For all chassis configurations, the heatsink performance parameter, Ψ
should be less
JA
than 3.85 °C/W. The detail thermal measurement metrology is described in the
TMSDG. For chassis that fail to meet the thermal specifications guideline highlighted
above, an actively cooled heatsink solution should be used.
57
