Intel Desktop Board D2700DC Technical Product Specification
The amount of installed memory that can be used will vary based on add-in cards and
BIOS settings. Figure 8 shows a schematic of the system memory map. All installed
system memory can be used when there is no overlap of system addresses.
36

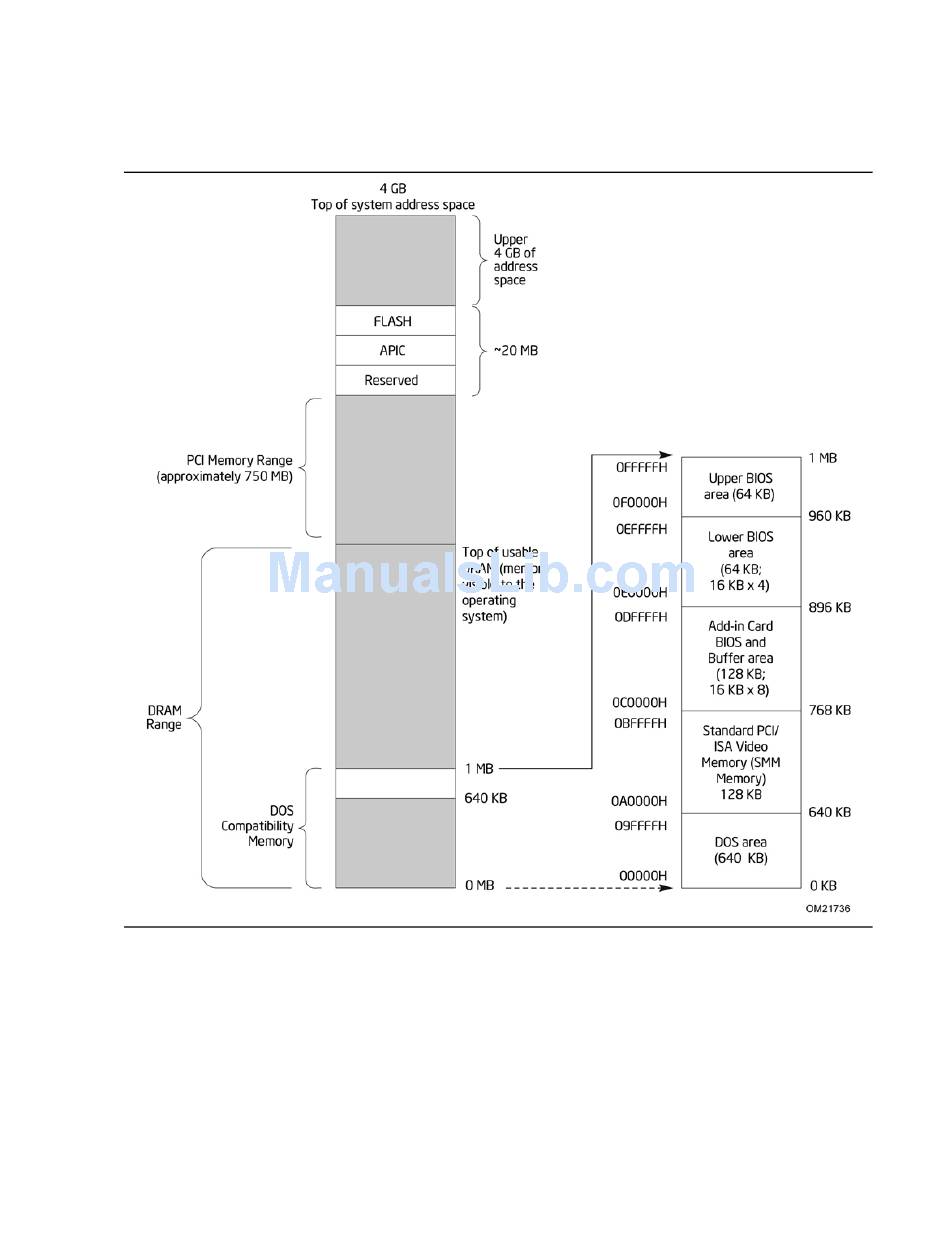

Figure 8. Detailed System Memory Address Map
