Intel Desktop Board D2700DC Technical Product Specification
1.10.2

Thermal Monitoring

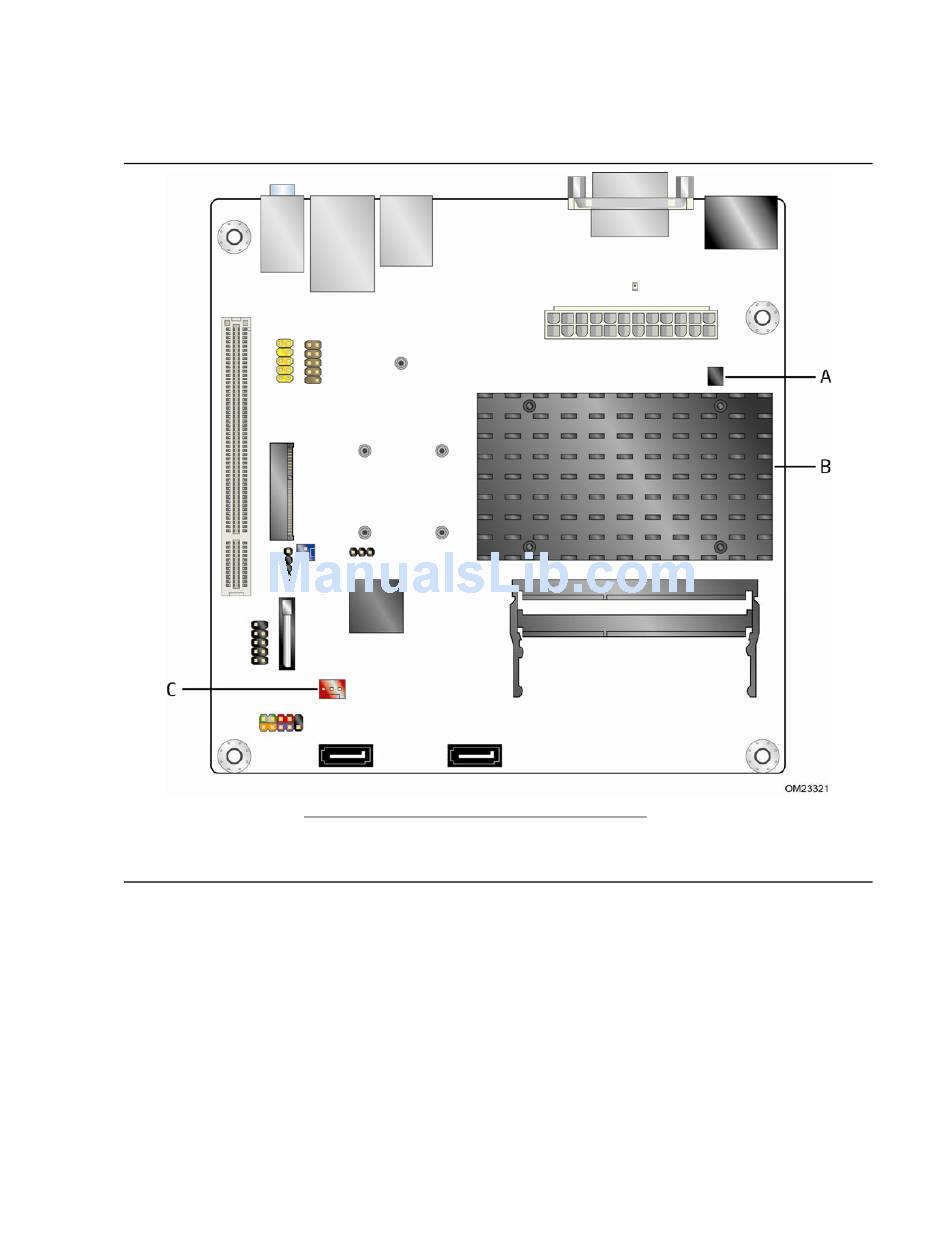

Figure 6 shows the locations of the thermal sensors and fan header.
28
Item
Description
A
Remote thermal sensor
B
DTS, located on the processor die
C
System fan header
Figure 6. Thermal Sensors and Fan Header
