2.2.2.4

Front Panel Header

This section describes the functions of the front panel header. Table 19 lists the signal
names of the front panel header. Figure 12 is a connection diagram for the front panel
header.
Table 19. Front Panel Header
Pin Signal
Hard Drive Activity LED
1 HD_PWR
3 HDA#
Reset Switch
5 Ground
7 FP_RESET#
9 +5 V

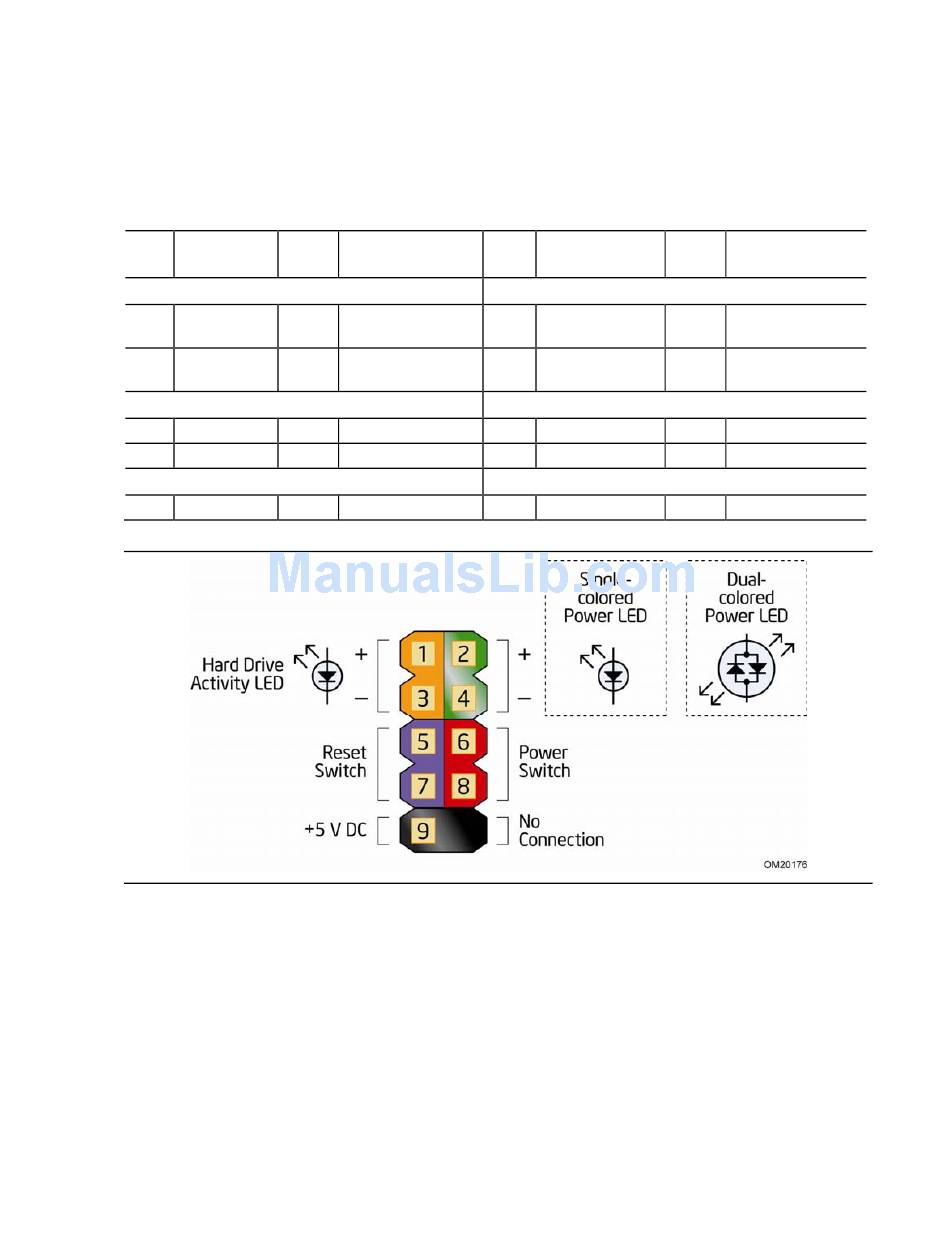

Figure 12. Connection Diagram for Front Panel Header
In/
Out Description
Out Hard disk LED
pull-up to +5 V
Out Hard disk active
LED
Ground
In Reset switch
Power
Power
Pin Signal
Power LED
2 HDR_BLNK_GRN
4 HDR_BLNK_YEL
On/Off Switch
6 FPBUT_IN
8 Ground
Not Connected
10 N/C
Technical Reference
In/
Out Description
Out Front panel green
LED
Out Front panel yellow
LED
In Power switch
Ground
Not connected
