Intel Desktop Board D2700DC Technical Product Specification
1.9.1
Audio Subsystem Software
Audio software and drivers are available from Intel's World Wide Web site.
For information about
Obtaining audio software and drivers
1.9.2
Audio Connectors and Headers
The board contains audio connectors and headers on both the back panel and the
component side of the board. The component-side audio headers include front panel
audio (a 2 x 5-pin header that provides mic in and line out signals for front panel
audio connectors).
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
For information about
The locations of the front panel audio header and S/PDIF audio header
The signal names of the front panel audio header and S/PDIF header
26
Item
Description
A
Line in
B
Line out
C
Mic in

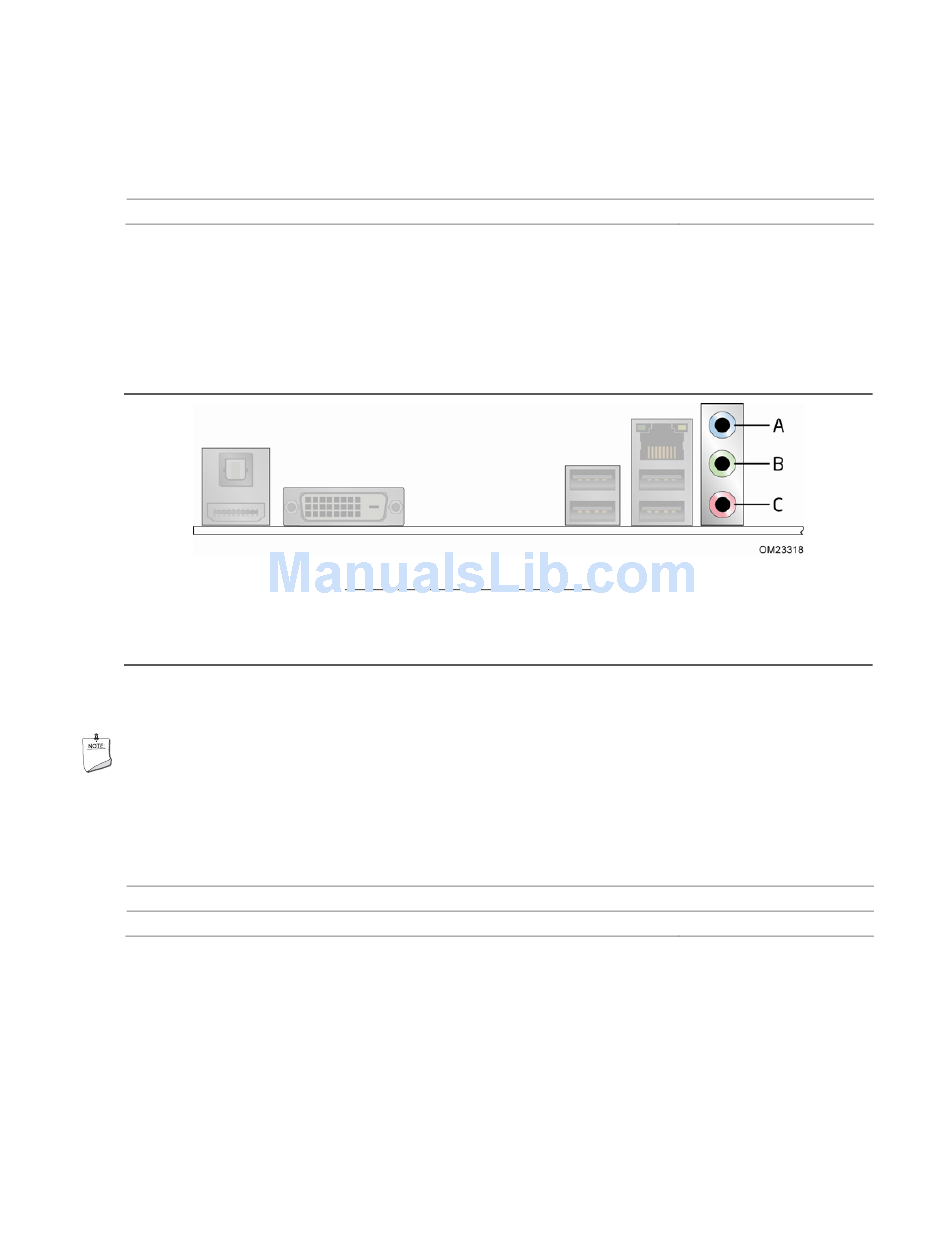

Figure 5. Back Panel Audio Connectors
Refer to
Section 1.2, page 16
Refer to
Figure 11, page 41
Section 2.2.2.1, page 43
