Intel Desktop Board D2700DC Technical Product Specification
2.4
Mechanical Considerations
2.4.1
Form Factor
The board is designed to fit into a mini-ITX or microATX form-factor chassis. Figure 16
illustrates the mechanical form factor for the board. Dimensions are given in inches
[millimeters]. The outer dimensions are 6.7 inches by 6.7 inches [170 millimeters by
170 millimeters]. Location of the I/O connectors and mounting holes are in
compliance with the microATX specification.
52

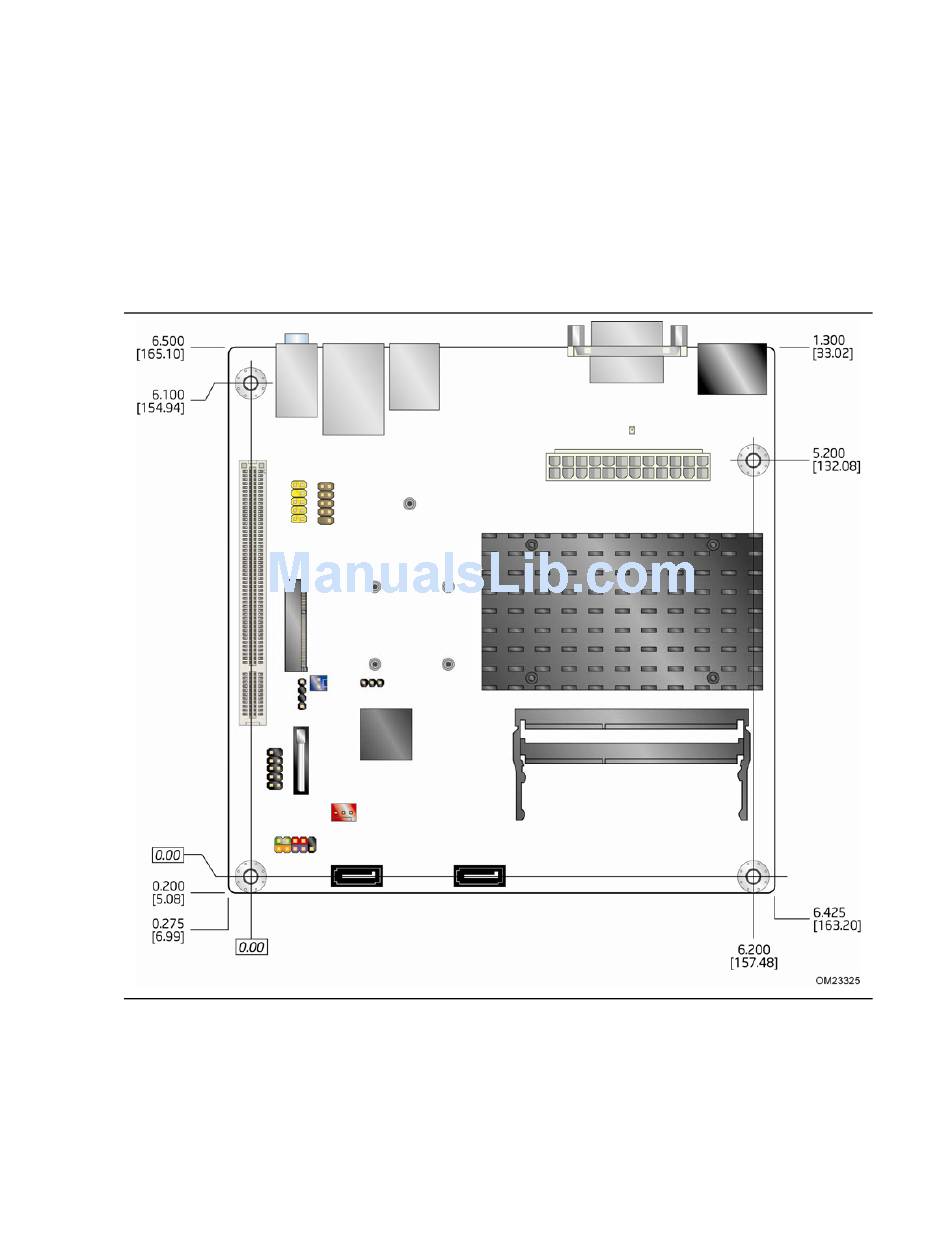

Figure 16. Board Dimensions
