Localized High Temperature Zones - Intel BLKD865GSAL Technical Product Specification

CAUTION
Ensure that proper airflow is maintained in the processor voltage regulator circuit.
Failure to do so may result in damage to the voltage regulator circuit. The processor
voltage regulator area (item A in Figure 18) can reach a temperature of up to 85
an open chassis.
Figure 18 shows the locations of the localized high temperature zones.
D

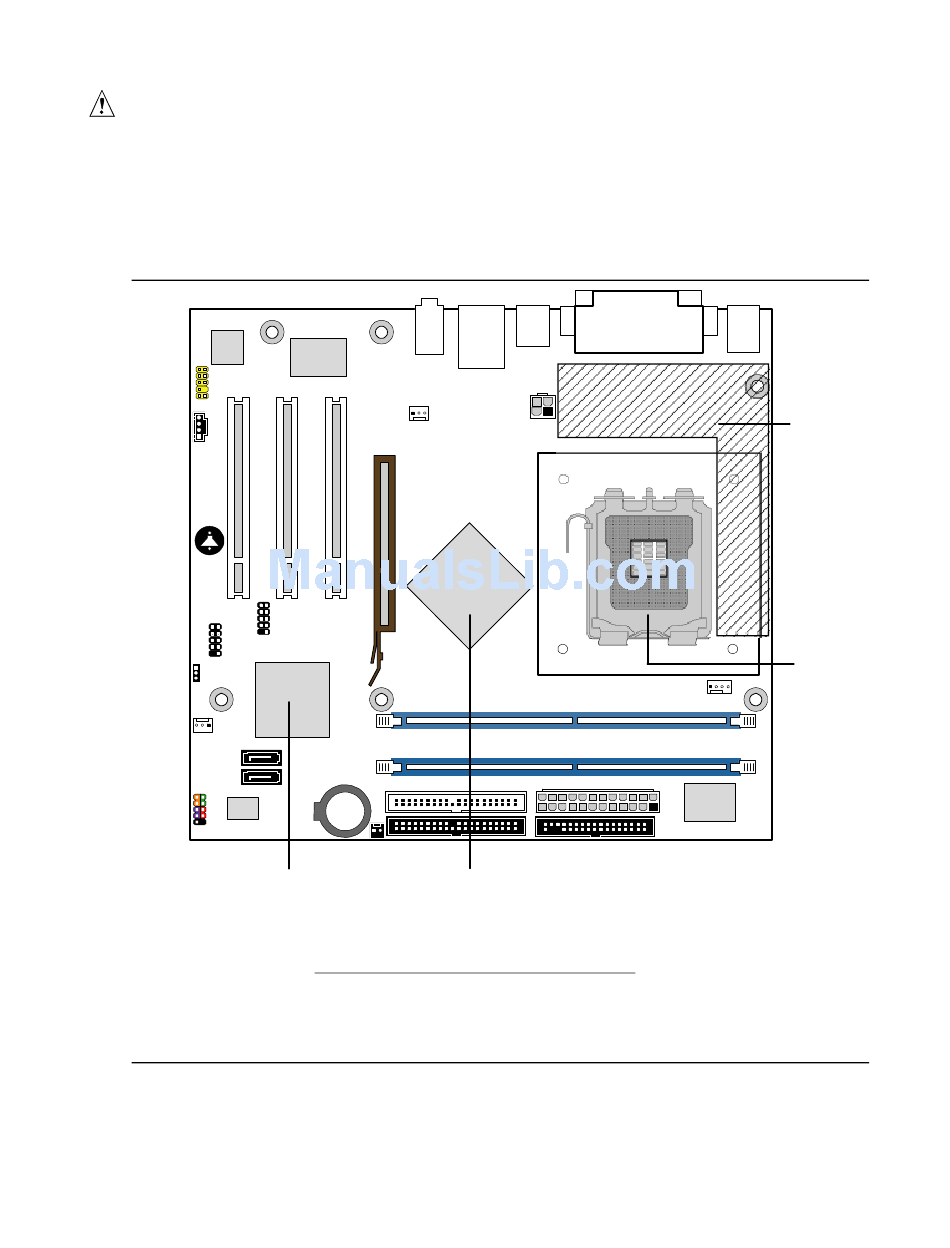

Figure 18. Localized High Temperature Zones
C
Item Description
A Processor voltage regulator area
B Processor
C Intel 82865G GMCH
D Intel 82801EB ICH5
Technical Reference
o
C in
A
B
OM18305
