Table 32. States for a Two-Color Power LED
LED State
Off
Steady Green
Steady Yellow
NOTE
The colors listed in Table 31 and Table 32 are suggested colors only. Actual LED colors
are product- or customer-specific.
2.7.2.3.4 Power Switch Connector
Pins 6 and 8 can be connected to a front panel momentary-contact power switch. The
switch must pull the SW_ON# pin to ground for at least 50 ms to signal the power
supply to switch on or off. (The time requirement is due to internal debounce circuitry
on the board.) At least two seconds must pass before the power supply will recognize
another on/off signal.
2.7.2.4 Front Panel USB Connectors

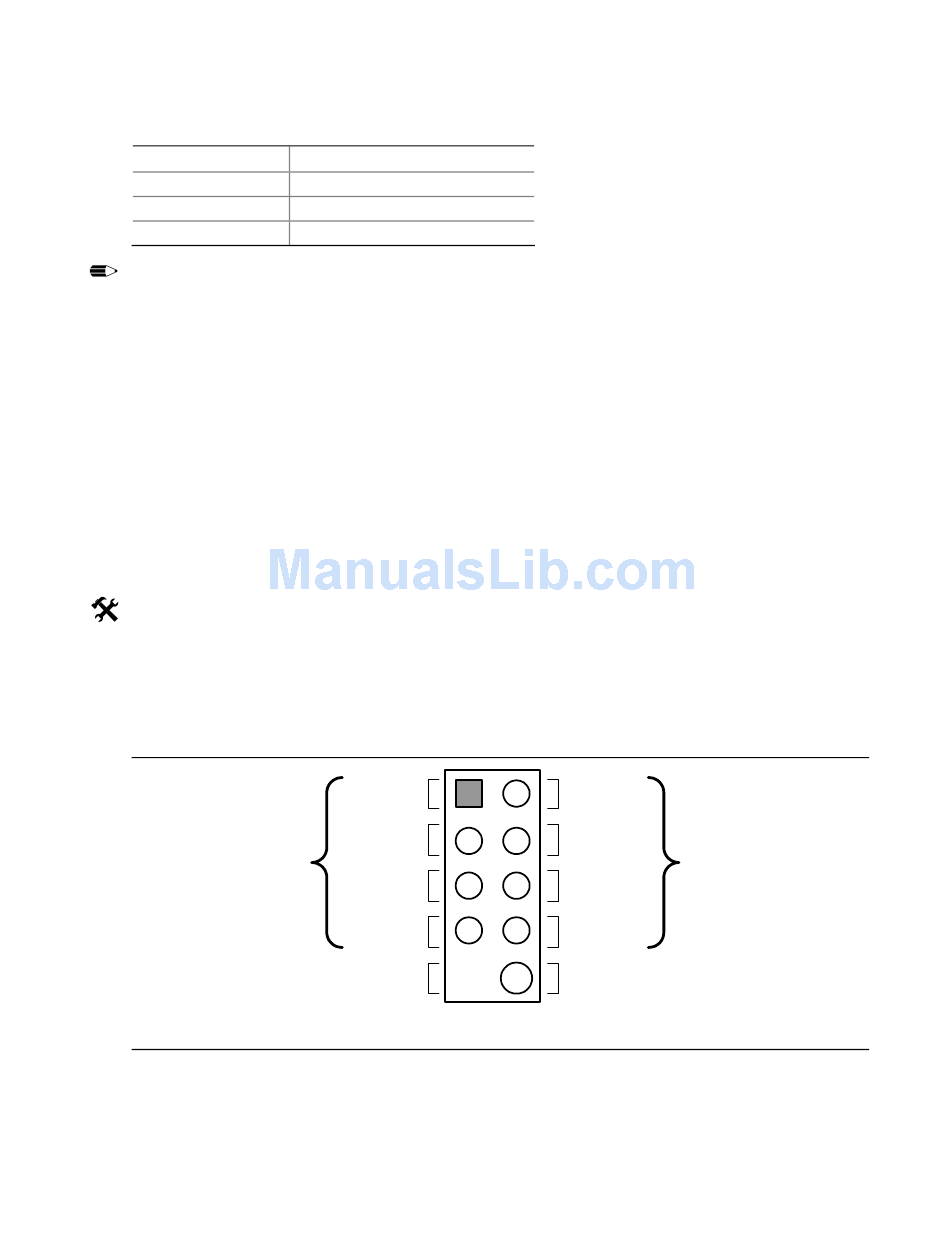

Figure 13 is a connection diagram for the front panel USB connectors.
INTEGRATOR'S NOTES
• The +5 V DC power on the USB connector is fused.
• Pins 1, 3, 5, and 7 comprise one USB port.
• Pins 2, 4, 6, and 8 comprise one USB port.
• Use only a front panel USB connector that conforms to the USB 2.0 specification for
high-speed USB devices.
One
USB
Port
Figure 13. Connection Diagram for Front Panel USB Connectors
60
Description
Power off
Running
Sleeping
Power
1
(+5 V DC)
D-
3
D+ 5
7
Ground
Key (no pin)
Power
2
(+5 V DC)
D-
4
6 D+
8
Ground
10
No connect
OM18309
One
USB
Port
