2.9.2

I/O Shield

The back panel I/O shield for the board must meet specific dimension and material
requirements. Systems based on this board need the back panel I/O shield to pass
certification testing. Figure 16 shows the I/O shield. In order to provide the required
dimensions, the figure shows only the metal shield; the plastic face plate is not shown.
Dimensions are given in millimeters. The figure indicates the position of each cutout.
Additional design considerations for I/O shields relative to chassis requirements are
described in the ATX specification.
NOTE
The I/O shield drawing is for reference only.
162.58
148.11
126.33
60.44
16.40
42.46
78.55
104.70
159.20 +/- 0.20
48.28
45.00
OM18310

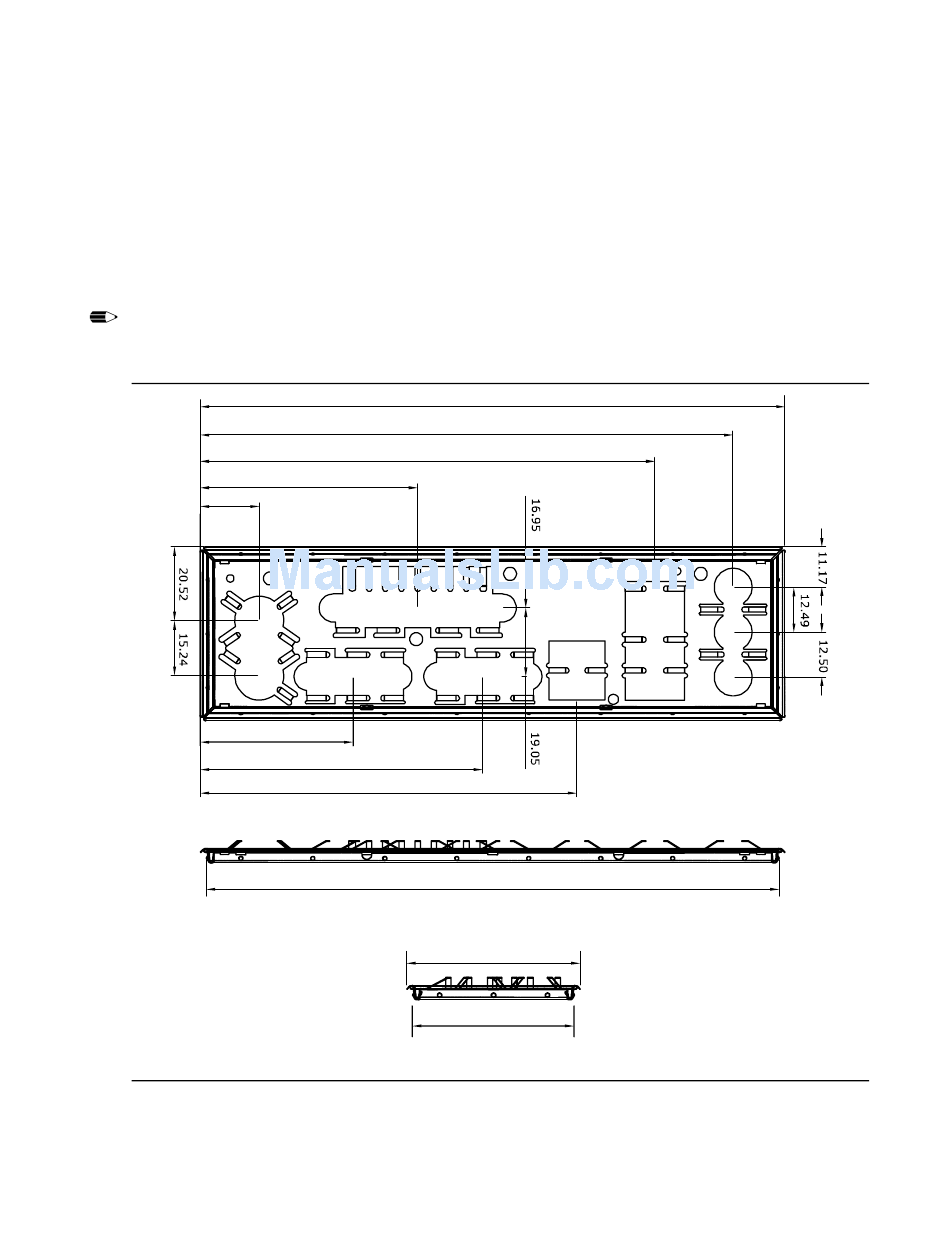

Figure 16. I/O Shield Dimensions
