Activating Run Diagnostics

From the Main dialog box
1.

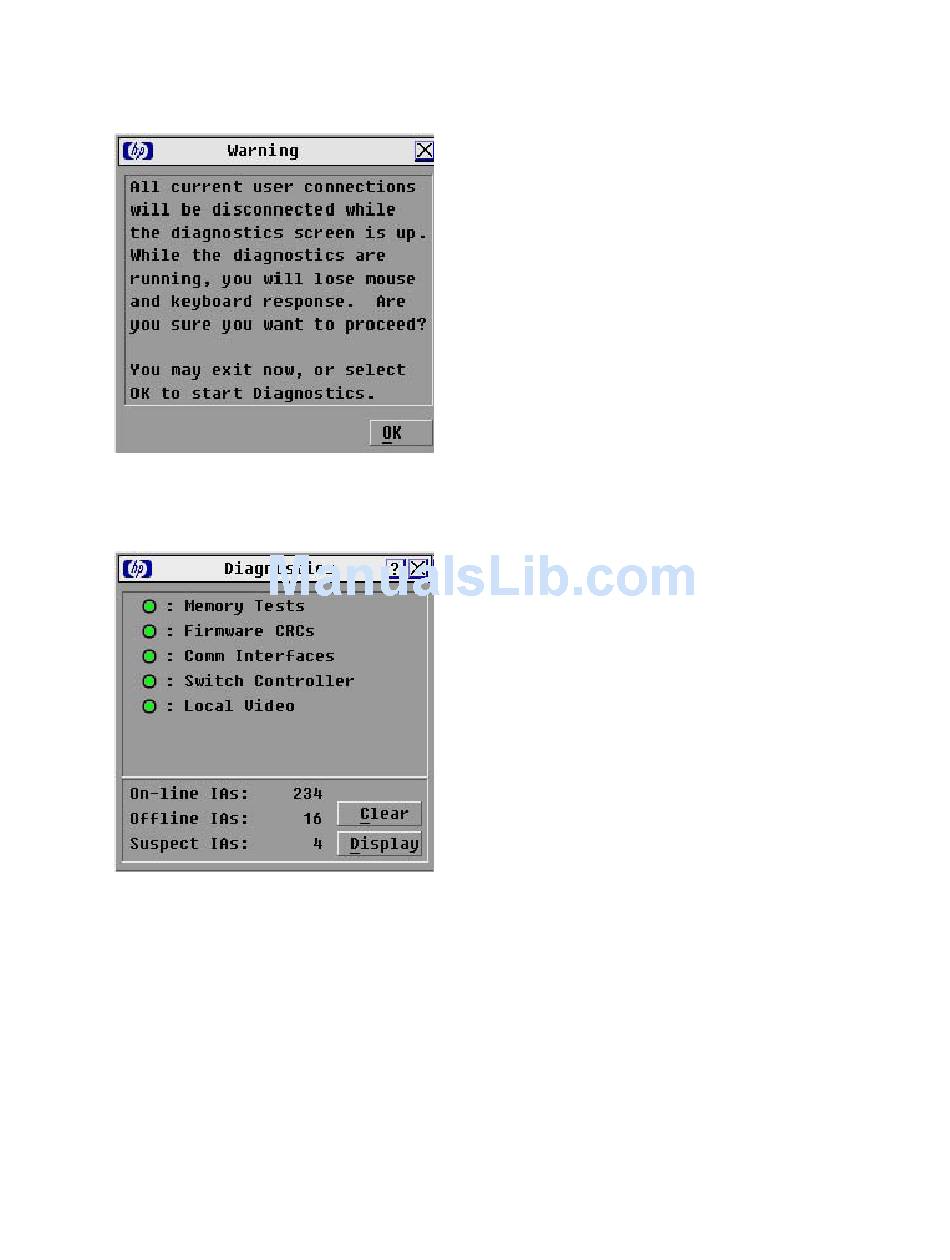

Diagnostics. A warning message appears indicating that all users will be disconnected.
Choose one of the following options:
2.
Click OK to begin. All users are disconnected, and the Diagnostics dialog box appears.
o
Click X or press the Esc key to exit the dialog box without running a diagnostic test.
o
As each test is finished, a pass or fail symbol appears.
3.
A green circle indicates a passed test and a red X indicates a failed test. The test is complete when
the last test symbol displays.
(Optional) If you have any offline interface adapters, you can click Clear to remove them from the
4.
list.
(Optional) If you have any suspect interface adapters, you can click Display. The Suspect interface
5.
adapter dialog box is appears. If there are no suspect interface adapters, the Display button does
not appear.
("Accessing the Main dialog box" on page 17), click Commands>Run
Local port operation 39
