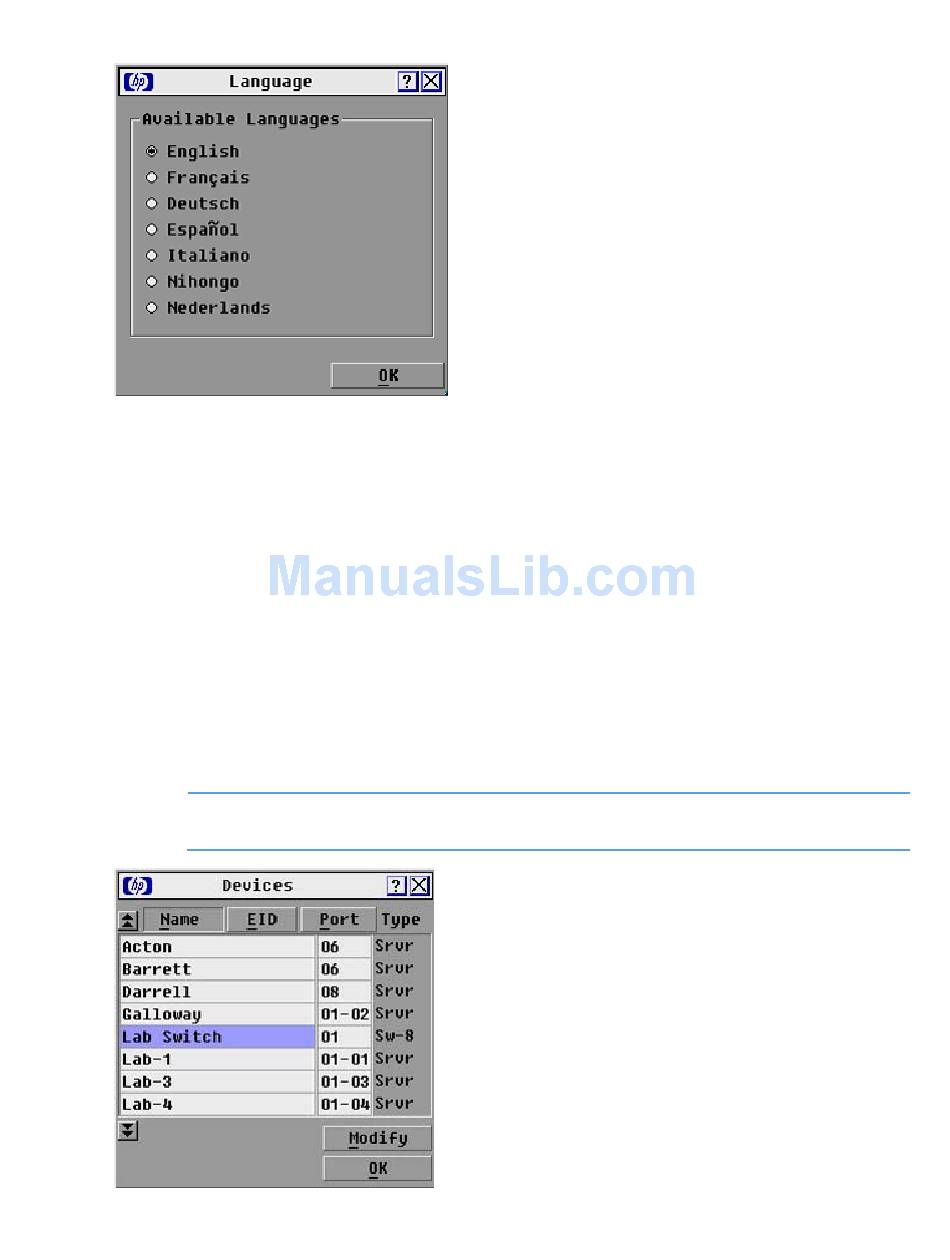

Click Language. The Language window appears.
2.
Select the desired language.
3.
Choose one of the following options:
4.
Click OK to change the OSD interface language and return to the Setup window.
o
Click X or press the Esc key to exit without changing the keyboard language.
o

Assigning device types

While the console switch automatically discovers cascaded Compaq Server Console Switches attached to
your unit, you must specify the number of ports on the cascade Compaq Server Console Switch through
the Devices dialog box

Accessing the Devices dialog box

From the Main dialog box
Devices dialog box appears.
NOTE:
selected.
("Accessing the Devices dialog
("Accessing the Main dialog
The Modify button is only available if a configurable Compaq Server Console Switch is
box" on page 34).
box" on page 17), click Setup>Devices. The
Local port operation 34
