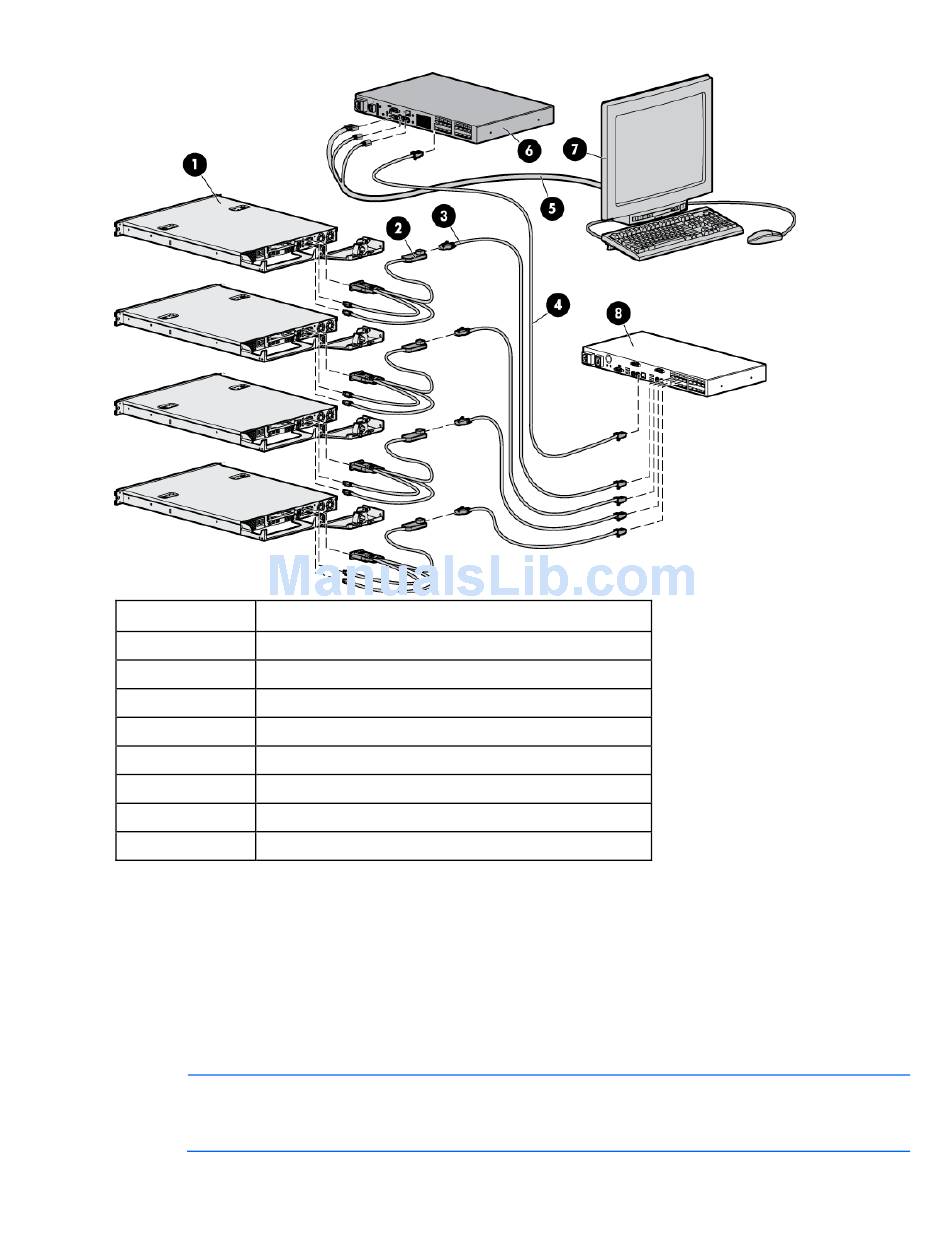

Example of an HP IP Console Switch cascade configuration
Item
1
2
3
4
5
6
7
8
*Not shown
Cascading an HP KVM Server Console Switch G2
with another HP KVM Server Console Switch G2
Locate a UTP CAT5 cable or higher and connect one end to the server connection port on the cascaded
HP KVM Server Console Switch G2.
NOTE:
and all attached interface adapters, you must locally connect the keyboard, monitor, and
mouse to the cascaded HP KVM Server Console Switch G2 to access the local OSD.
Description
Server
PS/2 interface adapter or USB interface adapter*
UTP CAT5 cable or higher
UTP CAT5 cable or higher
KVM cable
Main HP IP Console Switch
Local port
Cascaded HP KVM Server Console Switch
To perform a firmware upgrade for a cascaded HP KVM Server Console Switch G2
Cascading console switches 15
