Managing zoning
2. Follow the instructions in the wizard to modify the zoning configuration.
Validating zoning configuration
You can validate the current zoning configuration against the following rules:
•
•
•
The Validate Zoning wizard also lists offline devices that are in the current zoning setup, and
prompts you to delete those devices from the zoning database.
1. Click Validate under Zoning in the task panel.
2. Follow the instructions in the wizard.
40

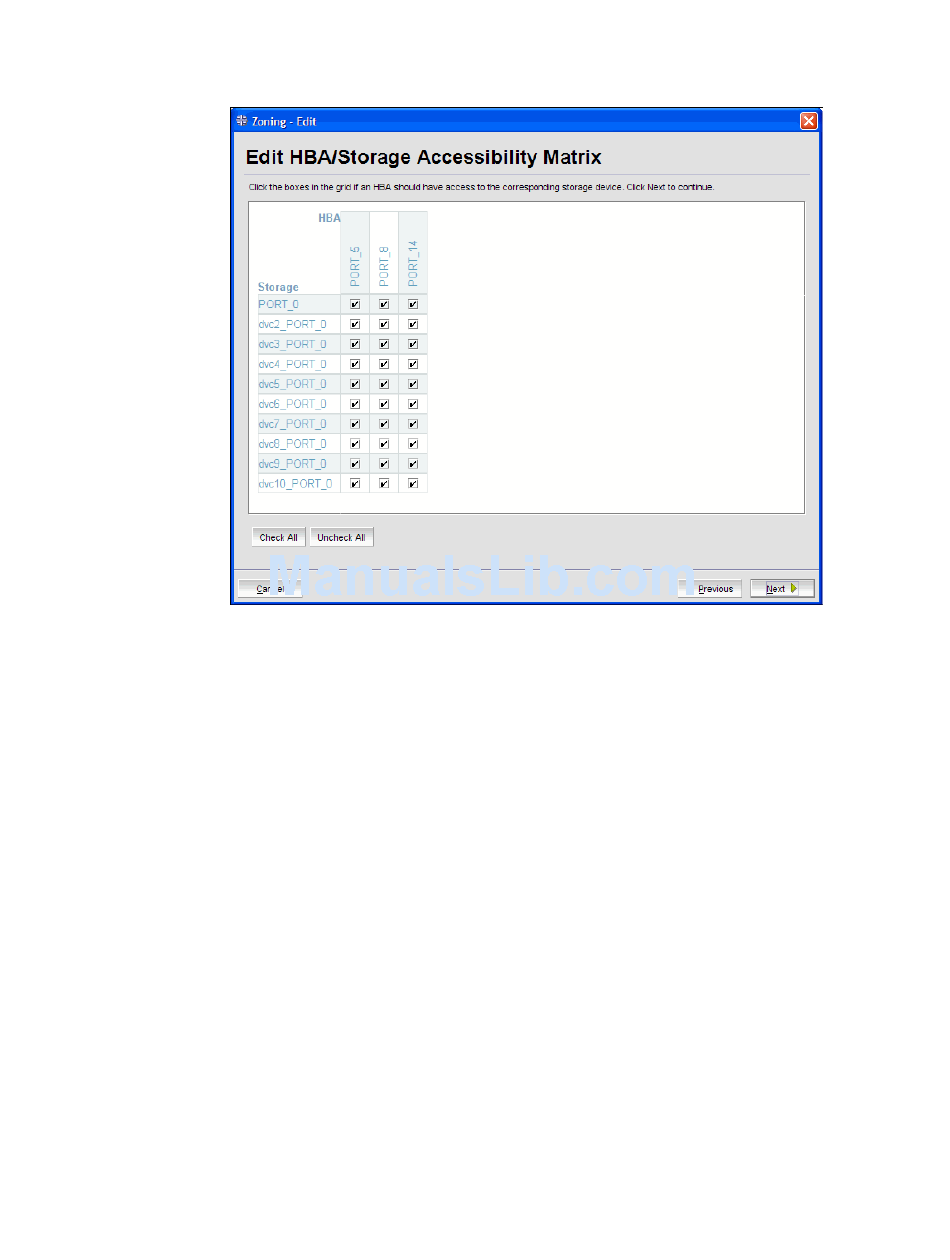

FIGURE 36
Edit Zoning Wizard
The first panel in the wizard displays a graphic view of the existing device connections. You
must connect all of the devices to the switch at this time.
The wizard automatically verifies the configuration, and generates the appropriate zones. The
HBA/Storage accessibility matrix is displayed; you can change the zoning configuration if you
choose to. When you are done making any changes, click Next and the zoning summary is
displayed.
Every HBA has access to at least one storage device.
Every storage device is accessible by at least one HBA.
No offline devices exist in the zoning configuration.
The Validate Zoning wizard launches.
