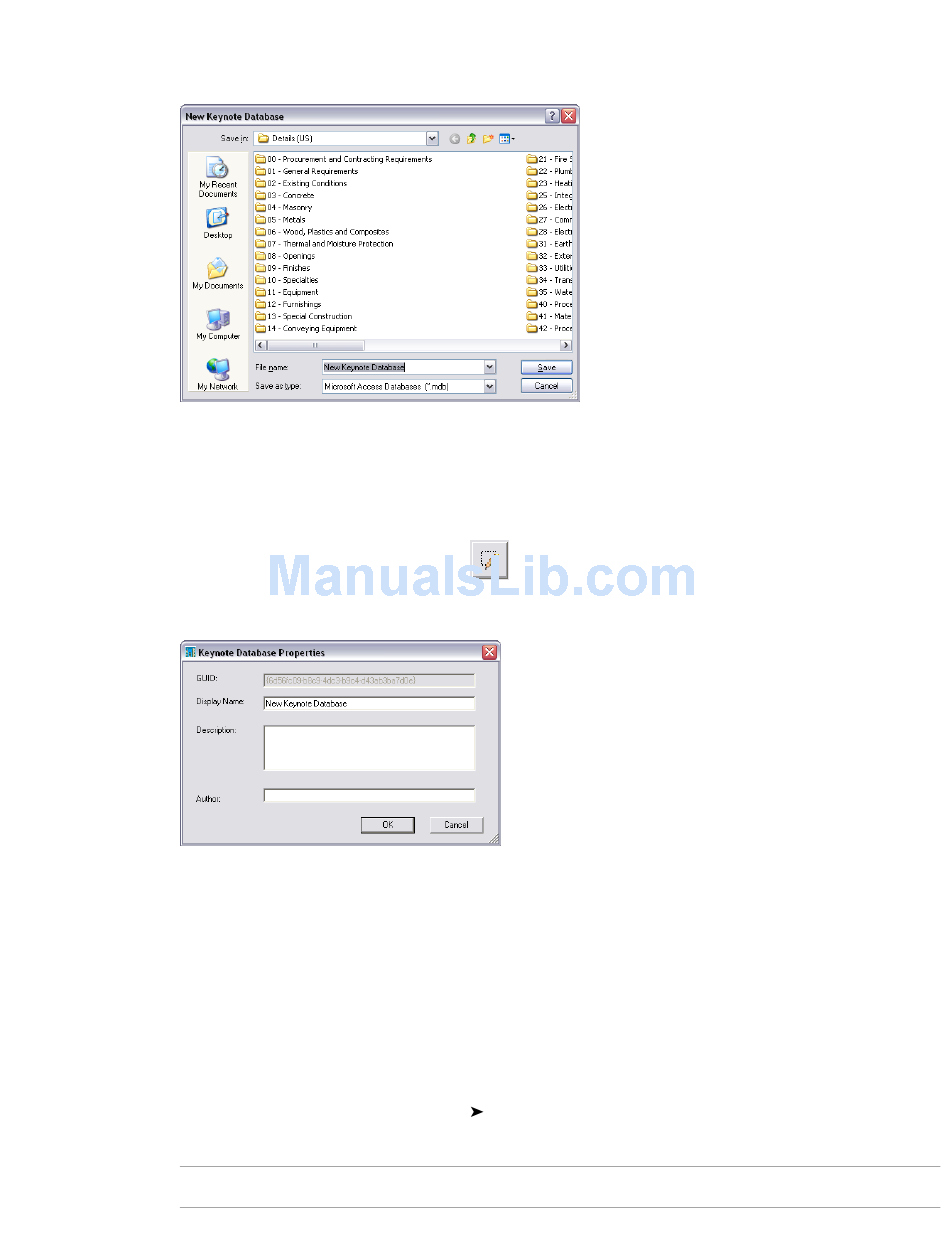

2 On the CAD Manager menu, select Keynote Editor.
3 At the bottom of the Keynote Editor dialog box, click New Database.
The Create a new keynote database browser window is displayed.
4 In the browser window, navigate to the location for the new database.
5 Enter a name for the new database in the File name field.
6 Click Save.
A node named New Keynote Database is displayed in the Keynote Editor.
7 Select the new database node, and click
8 In the Keynote Database Properties dialog box, enter the Display Name, Description, and Author for the
new database, and click OK.
A blank Microsoft
retrieval. The new database has the global unique identifier shown in the GUID field and is displayed in
the Keynote Editor as a root node with the display name you provided.
9 Click Save.
You can now begin populating the database by using the Keynote Editor to add groups and individual
keynotes.
Adding Groups to a Keynote Database
Use this procedure to add a group to a keynote database. You can use the same basic procedure to add as many levels
of subgroups as you want within a group.
1 On the Window menu, click Pulldowns
2 On the CAD Manager menu, click Keynote Editor.
NOTE The rest of this procedure can also be performed from the Select Keynote dialog box.
1976 | Chapter 44 Annotation and Keynoting Tools
®
Access database is created with all required tables and queries for keynote storage and
CAD Manager Pulldown.
.
