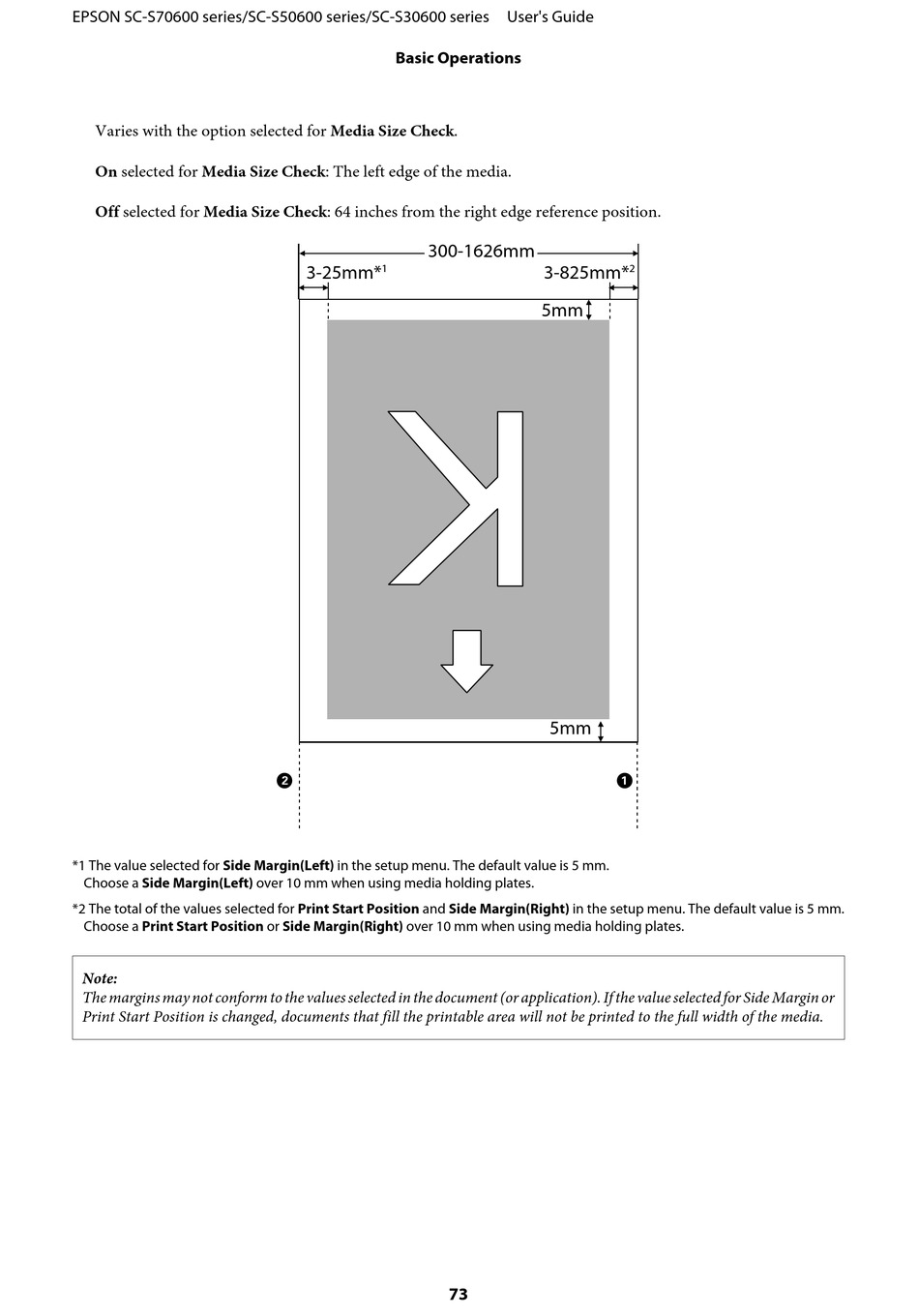

EPSON SC-S70600 series/SC-S50600 series/SC-S30600 series User's Guide
Varies with the option selected for Media Size Check.
On selected for Media Size Check: The left edge of the media.
Off selected for Media Size Check: 64 inches from the right edge reference position.
*1 The value selected for Side Margin(Left) in the setup menu. The default value is 5 mm.
Choose a Side Margin(Left) over 10 mm when using media holding plates.
*2 The total of the values selected for Print Start Position and Side Margin(Right) in the setup menu. The default value is 5 mm.
Choose a Print Start Position or Side Margin(Right) over 10 mm when using media holding plates.
Note:
The margins may not conform to the values selected in the document (or application). If the value selected for Side Margin or
Print Start Position is changed, documents that fill the printable area will not be printed to the full width of the media.
Basic Operations
300-1626mm
3-25mm* 1
B
73
3-825mm* 2
5mm
5mm
A
